Oracle Sun Server X4-4 Service Manual page 73

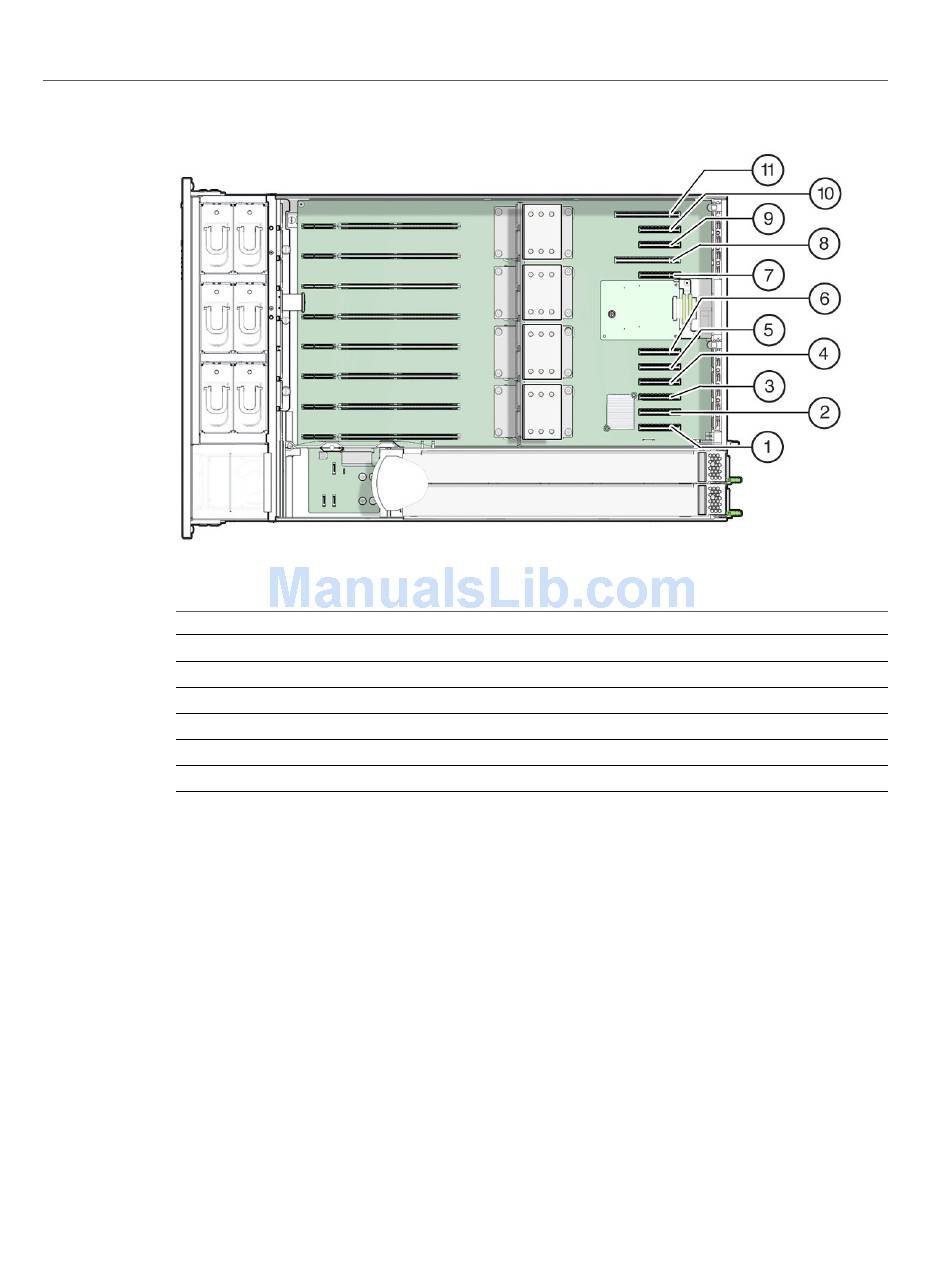

Call Out Description
1 PCIe 1
2 PCIe 2
3 PCIe 3
4 PCIe 4
5 PCIe 5
6 PCIe 6
DVD, Storage Drive, and USB Designations
The DVD drive is located at the right lower front side of the front of the server.
The six storage drive slots are on the right side of the server and are designated consecutively
from bottom to top. The bottommost slot is designated as HDD-0, and the topmost slot is HDD-
5.
The two internal USB slots are located between the disk backplane board and the power supply
backplane board. The front slot is used for the optional Oracle System Assistant USB stick and
is marked "OSA USB".
Component Serviceability, Locations, and Designations
Call Out Description
7 PCIe 7
8 PCIe 8
9 PCIe 9
10 PCIe 10
11 PCIe 11
Servicing the Server 73
