Replace the Disk Drive Backplane (FRU)

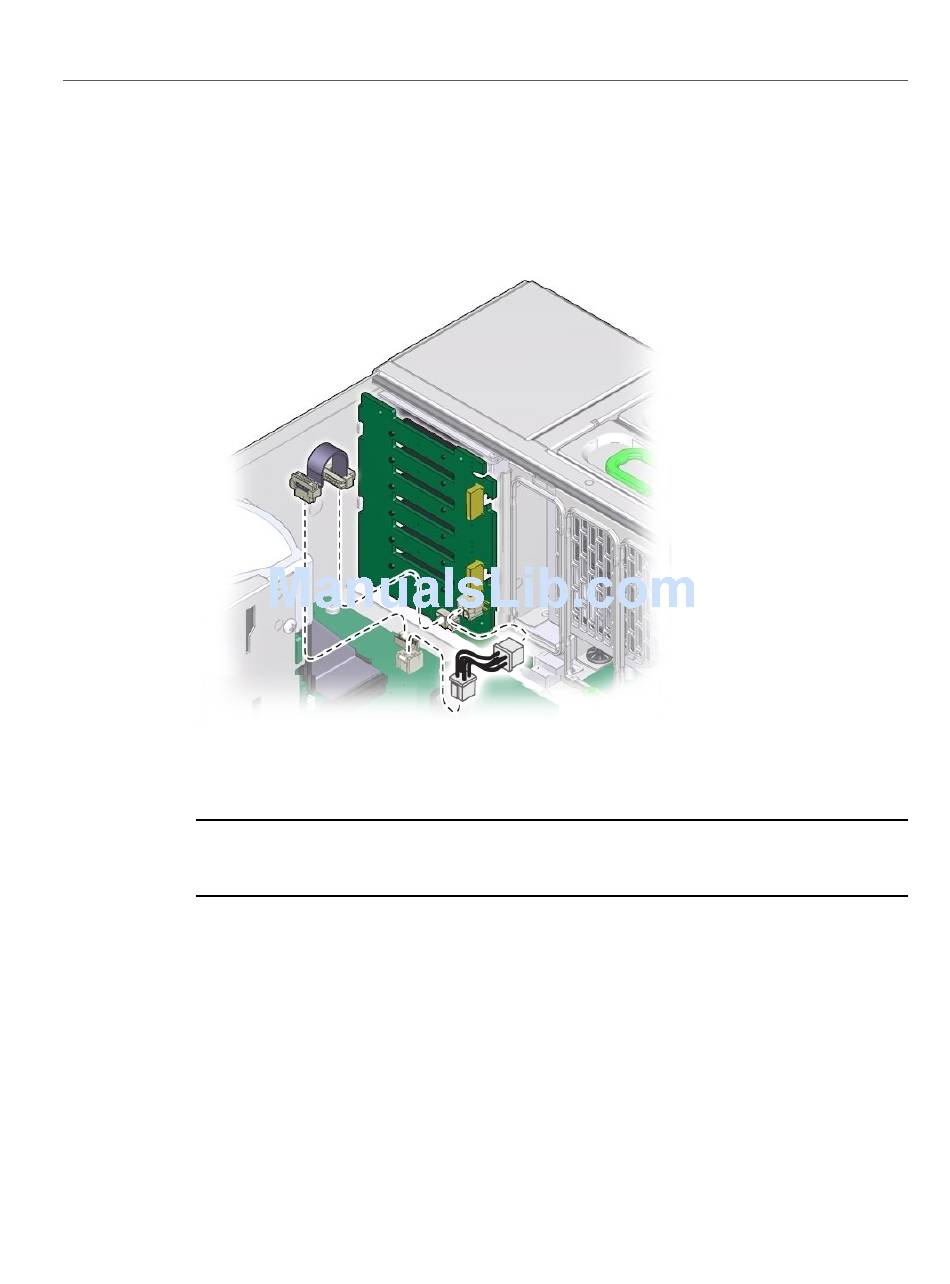

14. Reconnect the ribbon data cable and power cable to the bottom of the disk

backplane board.

15. To install the air divider:
Note -
mechanism can engage the motherboard-mounted switch, the divider must be installed
correctly.
Ensure the SAS/SATA cables are routed through the slot in air divider.
a.
The back side of the divider has enough room to house the cables if they are flat and side-
by-side. Do not allow the cables to interfere with the Fault Remind button mechanism.
b. Align the two tabs on the divider with the three slots in the power supply
side wall.
c. Push the tabs into the slots and push the divider downward to secure it
against the wall.
214 Sun Server X4-4 Service Manual • October 2015
The air divider contains the Fault Remind button mechanism. To ensure that the
