f. With the tool and the CPU in the topside down position, press the topside
release tab outward, away from the center button.
This action is accompanied by a click sound as the tool closes and grabs the CPU. The
CPU should now be secured in the tool.
g. Ensure that the CPU is secured in the tool.
When the CPU is secured in the tool, there is no side-to-side movement of the CPU within
the tool.
3. Turn the tool over, so that the CPU contacts are facing downward.
This positions the tool with the topside facing upward.

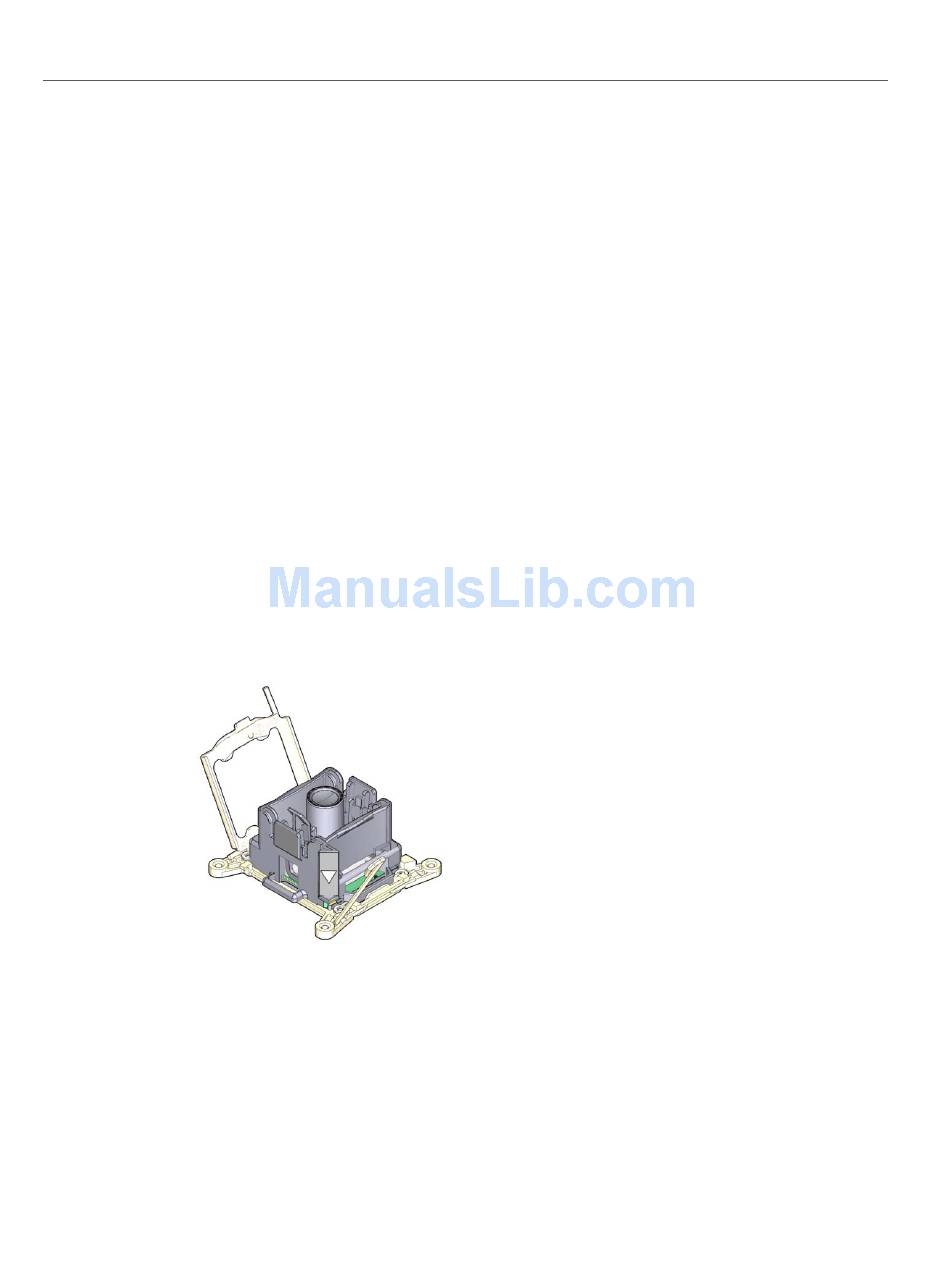

Orient the tool so that the triangle on the tool aligns with the triangle on the
4.
socket.
Lower the tool onto the socket, ensuring that the CPU is correctly positioned and
5.
sits flat and evenly in the socket.
When the CPU is correctly positioned, there is no side-to-side movement of the CPU within the
socket.
6. To release the CPU from the tool, press the center button.
This action is accompanied by a click sound as the tool opens and releases the CPU.
