Remove a Heatsink and CPU (FRU)

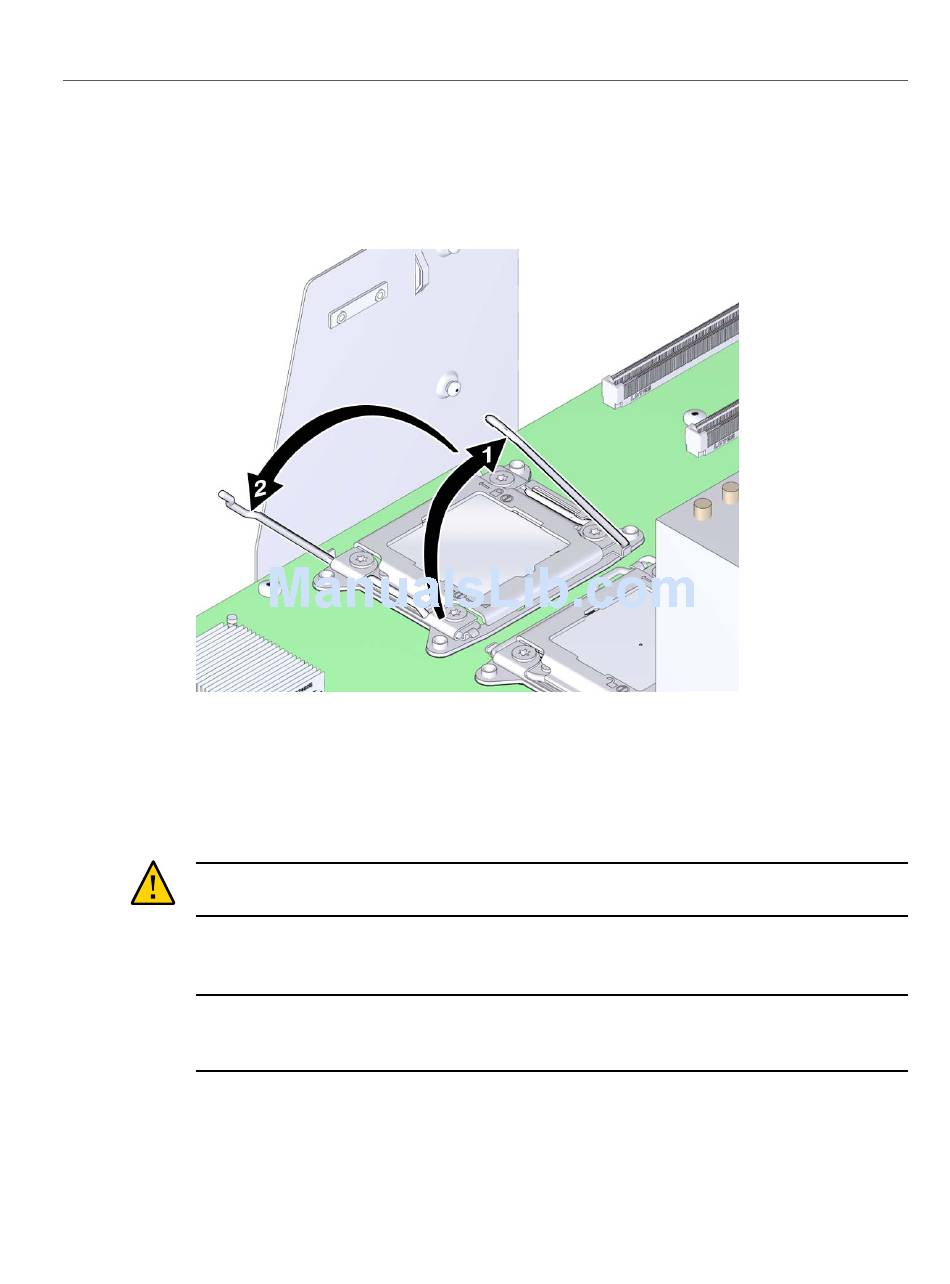

The levers are numbered by their required order of operation. The left-side lever (when viewed
from the front of the server) must be opened first.
6. Rotate the levers to the fully-open position.
When the second lever is in its fully-open position, the load plate is unlocked.
To open the load plate, lift the unhinged end to its fully-open position.
7.
Caution -
the CPU, use the correct CPU replacement tool.
8. To remove the CPU, use the CPU replacement tool:
Note -
G29477-002 affixed to the side, and it has a green label. However, the label color alone is not
an indicator of the correct tool. Verify that the part number is correct.
The tool is used to remove and install the CPU in the socket. The top side of the replacement
tool has a button in the center and a tab on one side. Pressing down on the button opens the tool.
Pressing the tab closes the tool (and releases the button).
178 Sun Server X4-4 Service Manual • October 2015
Component damage. The pins of the CPU socket can be easily damaged. To remove
Ensure that you use the correct CPU replacement tool. The correct tool has part number
