Oracle Sun Server X4-4 Service Manual page 72

Component Serviceability, Locations, and Designations

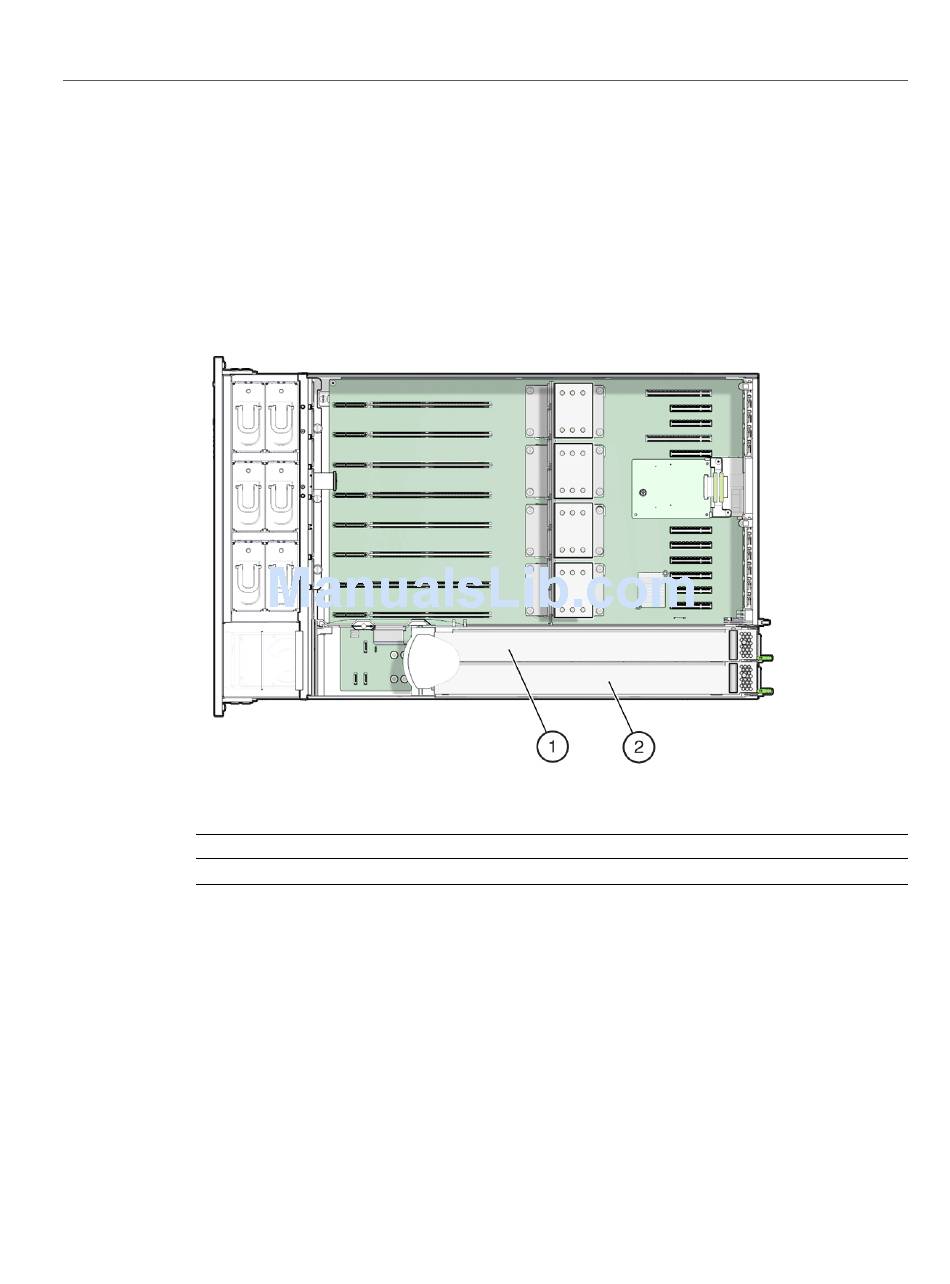

Power Supply Designations
The two power supply slots are located on the right side of the server (from the front of the
server) and are designated from right to left. The slots are accessible from the back of the
server. From the back of the server, the left slot is designated as PS-0, and the right slot is PS-1.
Call Out
1
PCIe Slot Designations
The eleven PCIe slots are located inside the server at the back. As viewed from the front of the
server, the slots are divided into two groups, a group of six on the right of the SP card and a
group of five on the left of the SP card. The slots are designated from right to left. The six slots
on the right side are designated as PCI-1 to PCI-6. The five slots on the left are designated as
PCI-7 to PCI-11.
72 Sun Server X4-4 Service Manual • October 2015
Description
PS 1
Call Out Description
2 PS 0
