Oracle Sun Server X4-4 Service Manual page 132

Remove a Memory Riser Card
"Replace a Faulty Memory Riser Card" on page 130
■
For serviceability considerations, see
■
Before You Begin
For memory riser card designation information, see
■
For reference information, see
■
1. Prepare for service. See

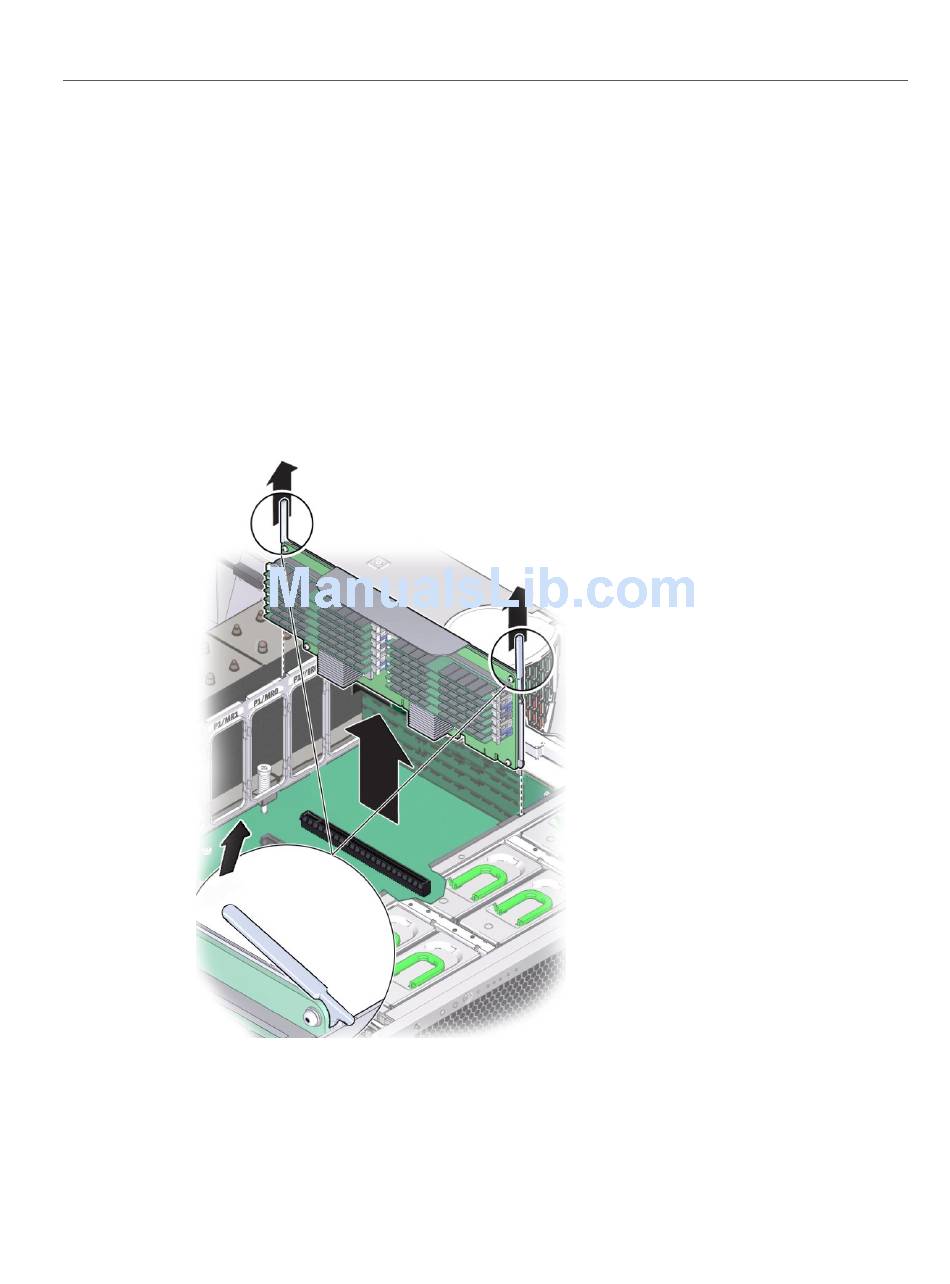

2. To remove the MR card, pull the handles upward to disengage the connector
from the motherboard and carefully lift the memory riser straight up and out of
the server.
The handles act as levers against the sidewalls to extract the card connector from the connector
on the motherboard.
"Install a Memory Riser Card" on page 138
Next Steps ■
132 Sun Server X4-4 Service Manual • October 2015
"Component Serviceability" on page
"Memory Riser Card and DIMM Reference" on page
"Prepare the Server for Cold Service" on page
66.
"Component Designations" on page 69.
141.
90.
