Component Serviceability, Locations, and Designations

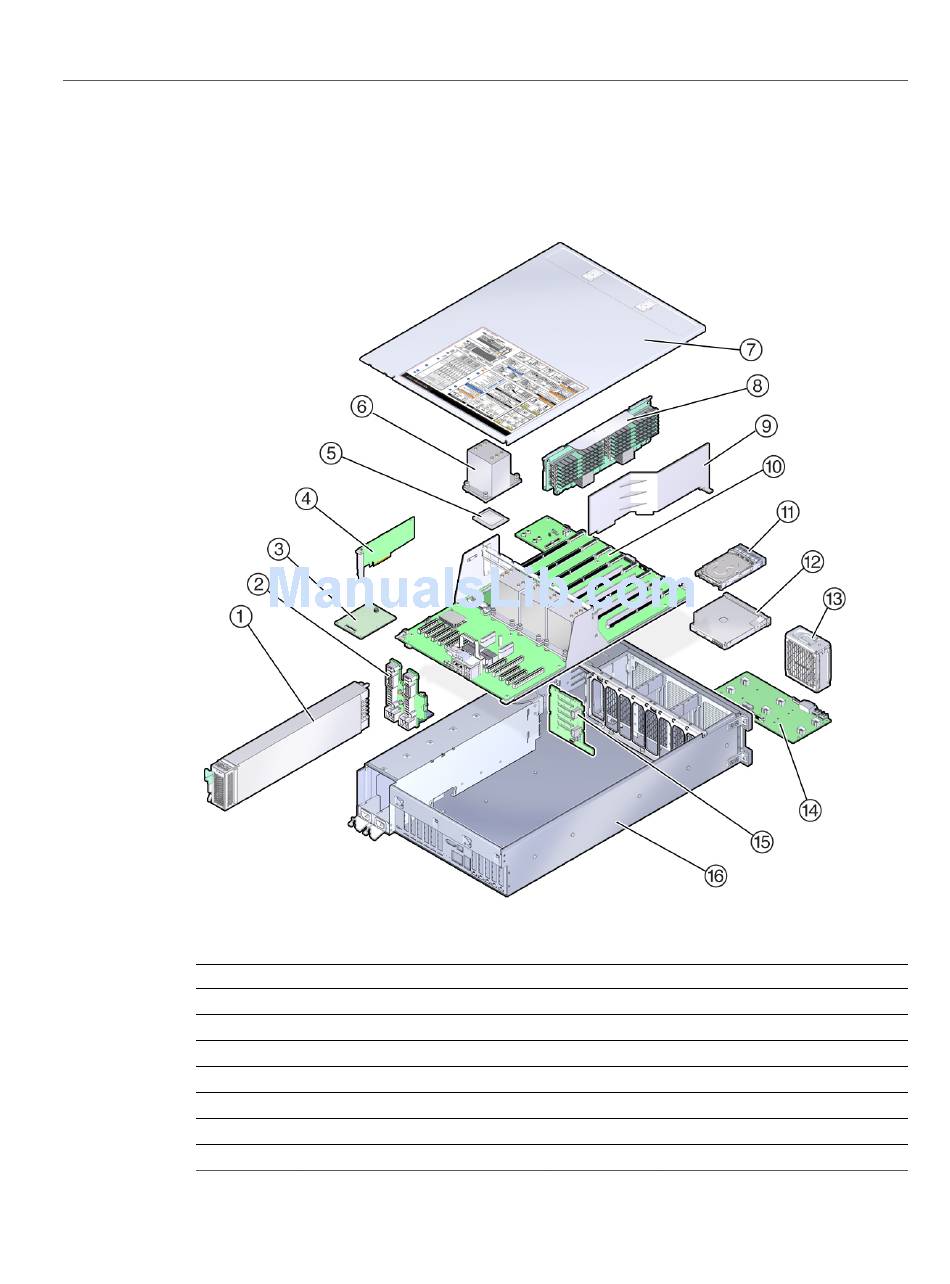

Components (Exploded View)
Call Out
1
2
3
4
5
6
7
68 Sun Server X4-4 Service Manual • October 2015
Description
Power supplies
Power supply backplane board
SP card
HBA/PCIe cards
CPU
Heatsink
Cover
Call Out Description
9 Air baffle (2-CPU configuration only)
10 Motherboard
11 Storage drive
12 DVD drive
13 Fan module
14 Fan board
15 Storage drive backplane board
