4.

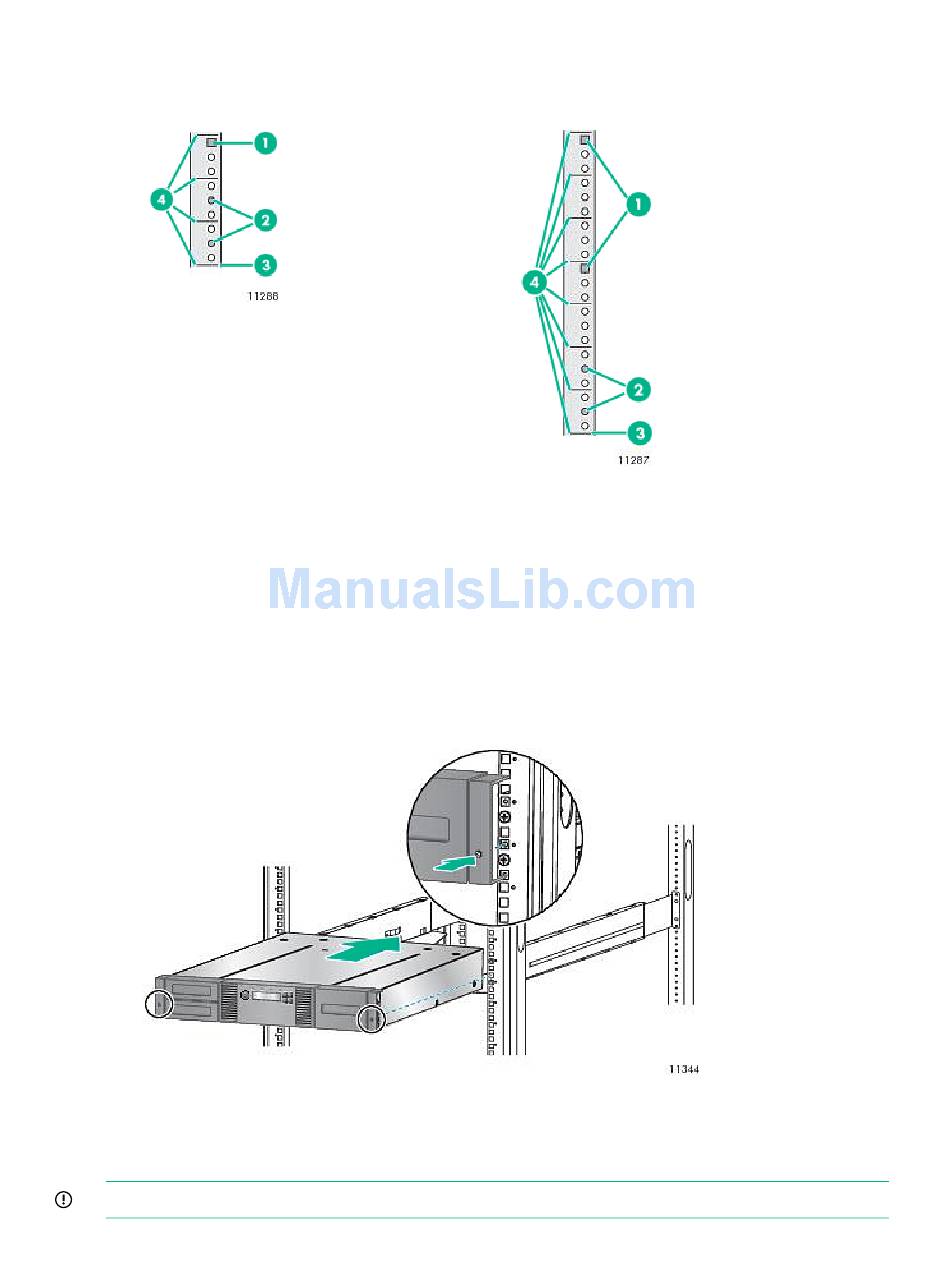

For the MSL4048, MSL8048, and MSL8096 insert the clip nuts on the front of the rack in
the locations shown. These will be used to secure the library to the rack.
MSL4048
1. Clip nut location
3. Bottom of the library

Install the library in the rack

1.
Slide the library onto the rails.
2.
From the front of the library, secure the front bezel to the rack using a #2 Phillips screw
driver placed through the small holes in the mounting bracket. Tighten the captive screws
on each side of the library until they are seated.

Installing the tabletop conversion kit

The Rack to Tabletop Conversion Kit supports the edges of the library, but is not a structural top.
IMPORTANT:
To install the cover:
32
Installing the tape library
Do not place any weight on top of the tape library, even with the cover installed.
MSL8048 and MSL8096
2. Rail screw location
4. U marker
