Fuser Cooling Fan Removal; Main Power Switch Actuator Removal - Lexmark X940e Service Manual

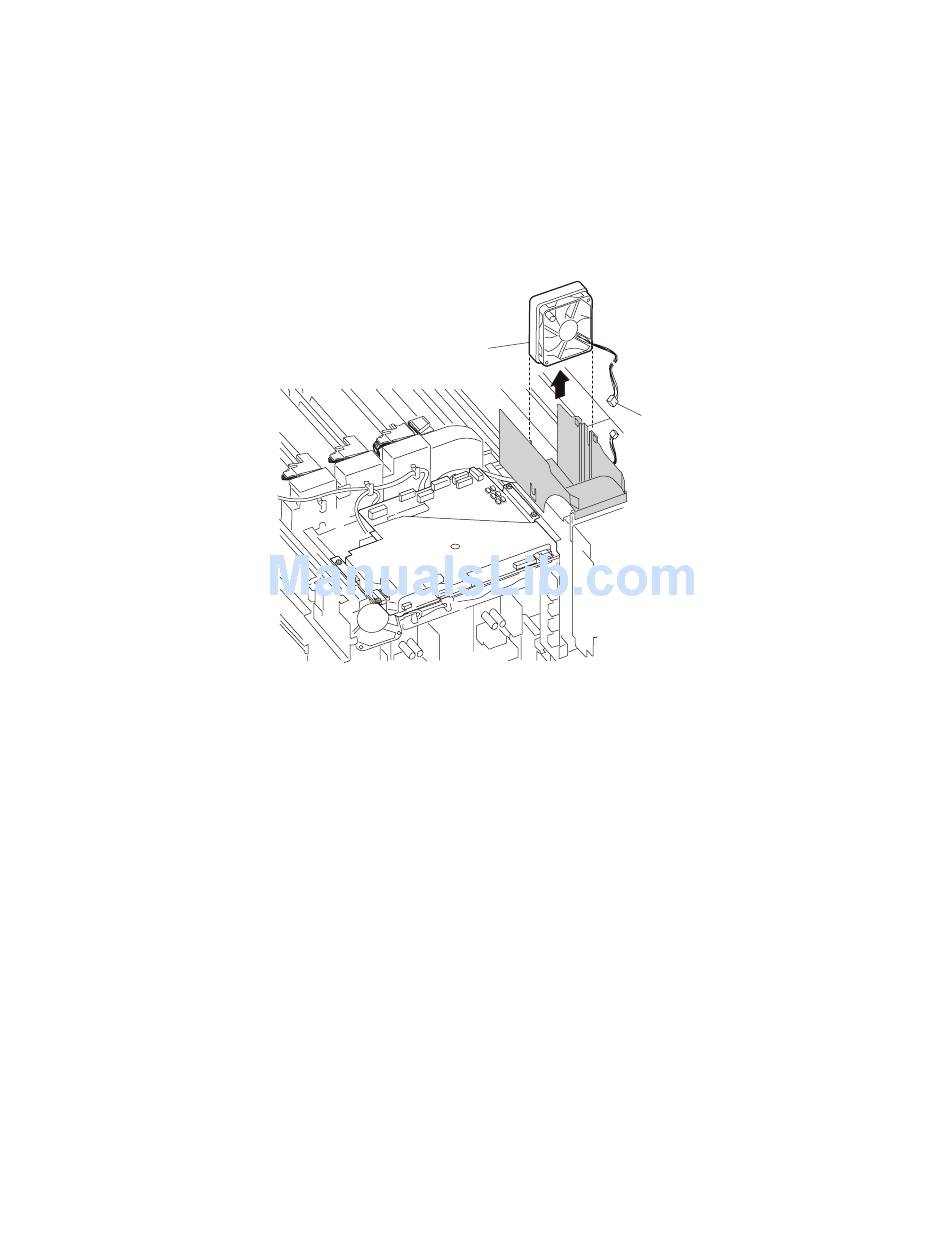

Fuser cooling fan removal

1. Remove the rear cover assembly. See
2. Remove the right cover assembly. See
3. Remove the top cover assembly. See
removal" on page
4. Disconnect the connector from the fuser cooling fan (A).
5. Remove the harness from the clamps.
6. Lift the fuser cooling fan (A).
7. Remove the fuser cooling fan.

Main power switch actuator removal

1. Remove the rear cover assembly. See
2. Remove the right cover assembly. See
3. Remove the top cover assembly. See
4. Remove the screw securing the main power switch actuator (A) to the machine.
5. Release the hook securing the main power switch actuator (A) to the machine.
"Rear cover assembly removal" on page
"Right cover assembly removal" on page
"Top cover assembly removal" on page 4-4
4-5.
A
"Rear cover assembly removal" on page
"Right cover assembly removal" on page
"Top cover assembly removal" on page
4-5.
4-4.
or "Rear cover assembly
Connector
4-5.
4-4.
4-4.
Repair information
7510-XXX
4-89
