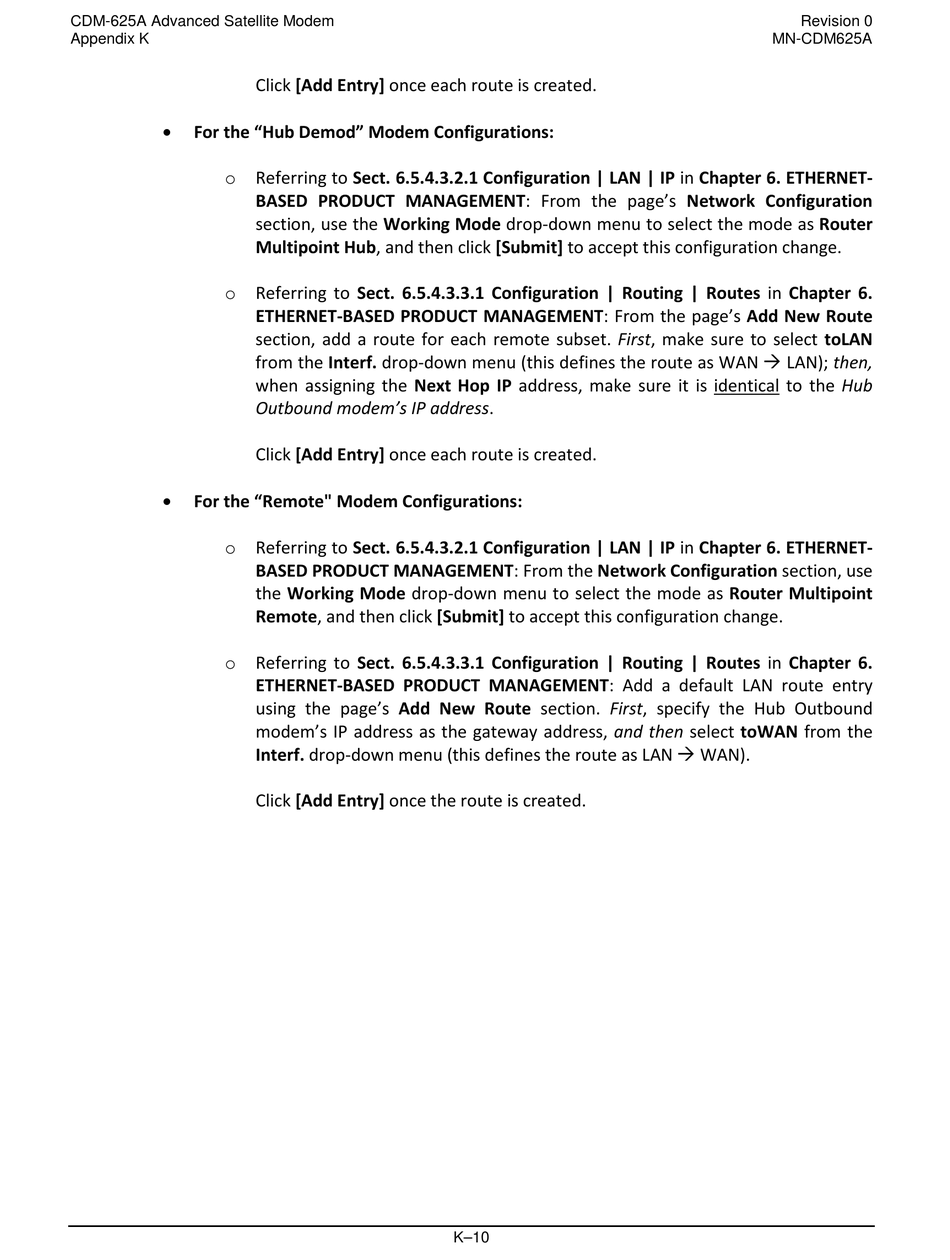

Comtech EF Data CDM-625A Installation And Operation Manual page 620

CDM-625A Advanced Satellite Modem
Appendix K
• For the "Hub Demod" Modem Configurations:
o Referring to Sect. 6.5.4.3.2.1 Configuration | LAN | IP in Chapter 6. ETHERNET-
o Referring to Sect. 6.5.4.3.3.1 Configuration | Routing | Routes in Chapter 6.
•
For the "Remote" Modem Configurations:
o Referring to Sect. 6.5.4.3.2.1 Configuration | LAN | IP in Chapter 6. ETHERNET-
o Referring to Sect. 6.5.4.3.3.1 Configuration | Routing | Routes in Chapter 6.
Click [Add Entry] once each route is created.
BASED PRODUCT MANAGEMENT: From the page's Network Configuration
section, use the Working Mode drop-down menu to select the mode as Router
Multipoint Hub, and then click [Submit] to accept this configuration change.
ETHERNET-BASED PRODUCT MANAGEMENT: From the page's Add New Route
section, add a route for each remote subset. First, make sure to select toLAN
from the Interf. drop-down menu (this defines the route as WAN  LAN); then,
when assigning the Next Hop IP address, make sure it is identical to the Hub
Outbound modem's IP address.
Click [Add Entry] once each route is created.
BASED PRODUCT MANAGEMENT: From the Network Configuration section, use
the Working Mode drop-down menu to select the mode as Router Multipoint
Remote, and then click [Submit] to accept this configuration change.
ETHERNET-BASED PRODUCT MANAGEMENT: Add a default LAN route entry
using the page's Add New Route section. First, specify the Hub Outbound
modem's IP address as the gateway address, and then select toWAN from the
Interf. drop-down menu (this defines the route as LAN  WAN).
Click [Add Entry] once the route is created.
K–10
Revision 0
MN-CDM625A
