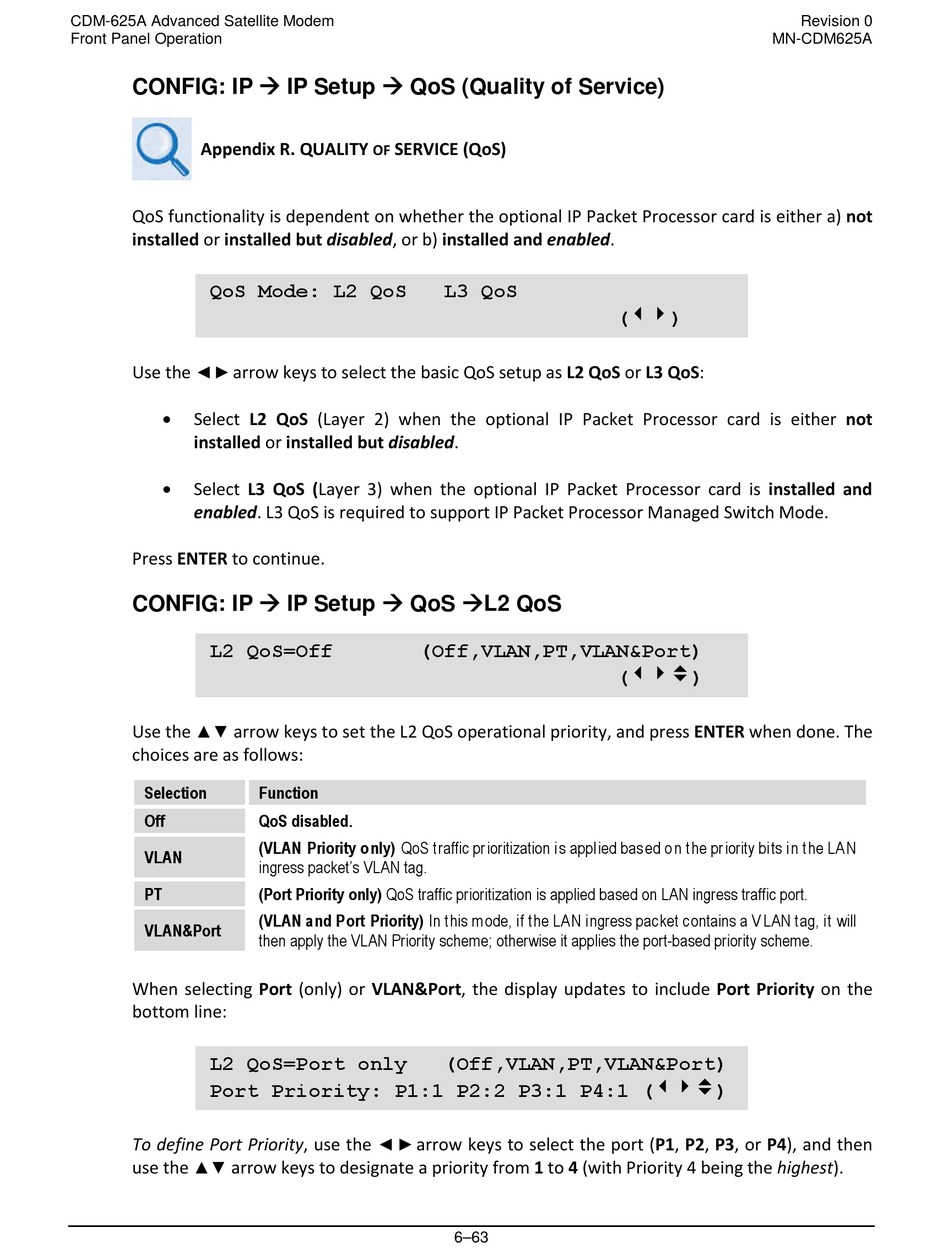

CDM-625A Advanced Satellite Modem
Front Panel Operation
CONFIG: IP IP Setup QoS (Quality of Service)
Appendix R. QUALITY
QoS functionality is dependent on whether the optional IP Packet Processor card is either a) not
installed or installed but disabled, or b) installed and enabled.
QoS Mode: L2 QoS
Use the
◄ ►
arrow keys to select the basic QoS setup as L2 QoS or L3 QoS:
•
Select L2 QoS (Layer 2) when the optional IP Packet Processor card is either not
installed or installed but disabled.
•
Select L3 QoS (Layer 3) when the optional IP Packet Processor card is installed and
enabled. L3 QoS is required to support IP Packet Processor Managed Switch Mode.
Press ENTER to continue.
CONFIG: IP IP Setup QoS L2 QoS
L2 QoS=Off
Use the
arrow keys to set the L2 QoS operational priority, and press ENTER when done. The
▲▼
choices are as follows:
Selection
Off
VLAN
PT
VLAN&Port
When selecting Port (only) or VLAN&Port, the display updates to include Port Priority on the
bottom line:
L2 QoS=Port only
Port Priority: P1:1 P2:2 P3:1 P4:1 ()
To define Port Priority, use the
arrow keys to designate a priority from 1 to 4 (with Priority 4 being the highest).
use the
▲▼
SERVICE (QoS)
OF
(Off,VLAN,PT,VLAN&Port)
Function
QoS disabled.
(VLAN Priority o nly) QoS traffic prioritization is applied based o n the priority bits in the LAN
ingress packet's VLAN tag.
(Port Priority only) QoS traffic prioritization is applied based on LAN ingress traffic port.
(VLAN and Port Priority) In this mode, if the LAN ingress packet contains a V LAN tag, it will
then apply the VLAN Priority scheme; otherwise it applies the port-based priority scheme.
◄ ►
arrow keys to select the port (P1, P2, P3, or P4), and then
L3 QoS
()
()
(Off,VLAN,PT,VLAN&Port)
6–63
Revision 0
MN-CDM625A
