CDM-625A Advanced Satellite Modem
Telnet Command Line Interface (CLI) Operation
9.3.3.3 Home > Modem > Modem RX

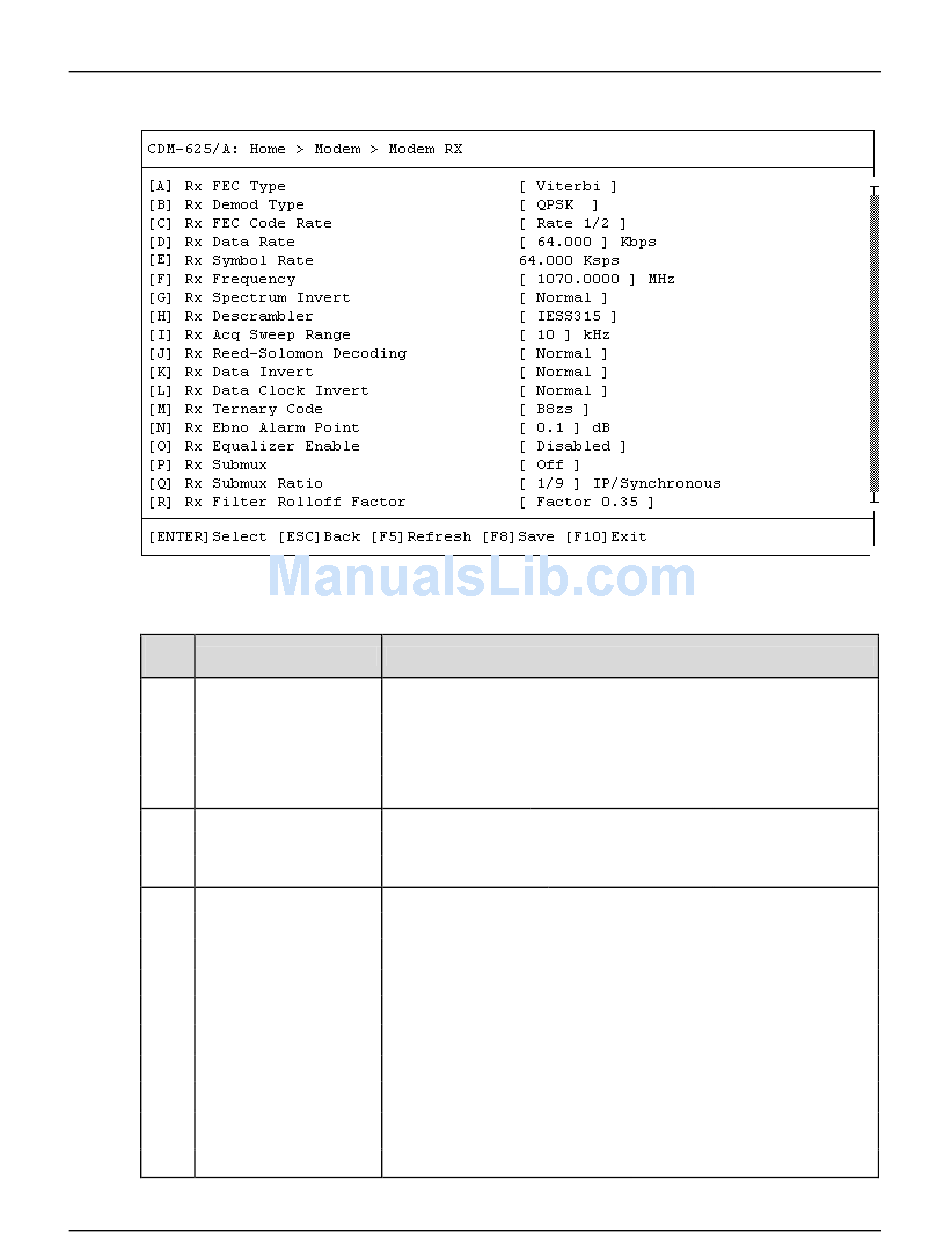

Open the Modem RX page from the Modem submenu. This page contains the following options:
Hot
Dialog Window
Key
Rx FEC Type
A
B
Rx Mod Type
C Rx FEC Code Rate
Option Entry
Use the ↑↓ arrow keys to select
• None Diff Enc On • Viterbi
• Sequential • Sequential Reed-Solomon
• TCM Reed-Solomon • TPC
• LDPC • VersaFEC
Use the ↑↓ arrow keys to select:
• BPSK • QPSK
• 8PSK • 16QAM
Use the ↑↓ arrow keys to select:
• Rate 1/2 • Rate 3/4
• Rate 2/3 • Rate 1/1
• Rate 5/16 • Rate 0.95
• VersaFEC QPSK 0.533 • VersaFEC QPSK 0.631
• VersaFEC QPSK 0.803 • VersaFEC 8QAM 0.642
• VersaFEC 8QAM 0.780 • VersaFEC 16QAM 0.731 • VersaFEC 16QAM 0.780
• VersaFEC 16QAM 0.829 • VersaFEC 16QAM 0.853 • VersaFEC 8QAM 0.576
• VersaFEC ULL BPSK
• VersaFEC 16QAM 0.644
• VersaFEC ULL QPSK 0.654
9–26
• Viterbi Reed-Solomon
• TCM
• None Diff Enc Off
• ULL
• OQPSK
• 8QAM
• Rate 7/8
• Rate 21/44
• VersaFEC BPSK 0.488
• VersaFEC QPSK 0.706
• VersaFEC 8QAM 0.711
• VersaFEC ULL QPSK
0.493 0.493
• VersaFEC ULL QPSK 0.734
