7.5.4.3.5.1.2 Configuration | WAN | QoS Pages – DiffServ Mode
QoS can be set to DiffServ Mode to make it fully compliant to the Differentiated Services QoS
RFC (Request For Comments) standards.

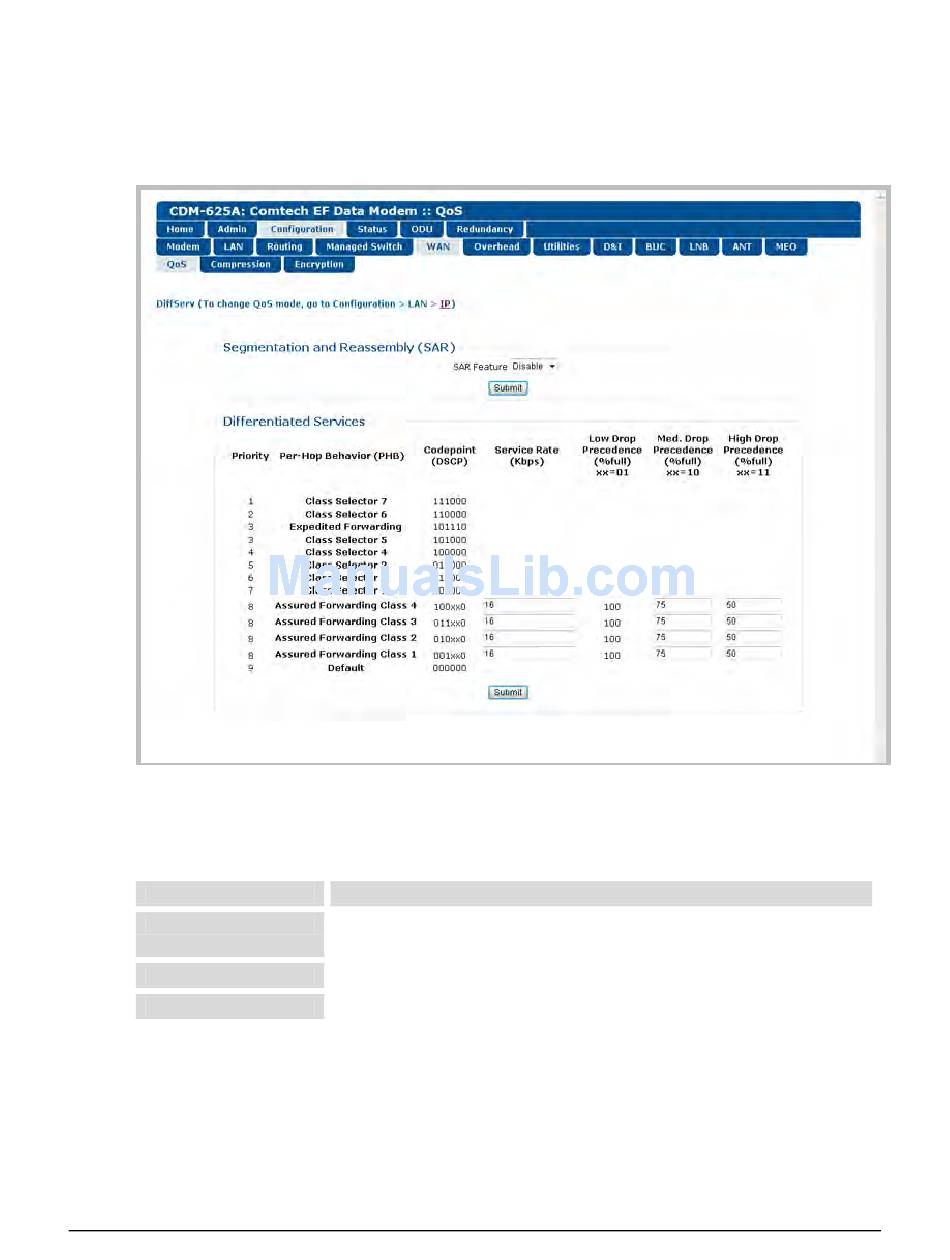

Figure 7-21. Configuration | WAN | QoS page (DiffServ Mode)
Differentiated Services
From left to right, note the following:
Column
Priority
Per-Hop Behavior (PHB)
Codepoint (DSCP)
Description
IP traffic is prioritized based upon the DSCP (DiffServ Code Points) Class Selector
Precedence.
Traffic class that determines how packets will be forwarded.
Codepoint value in Type of Service (ToS) byte in IP header.
