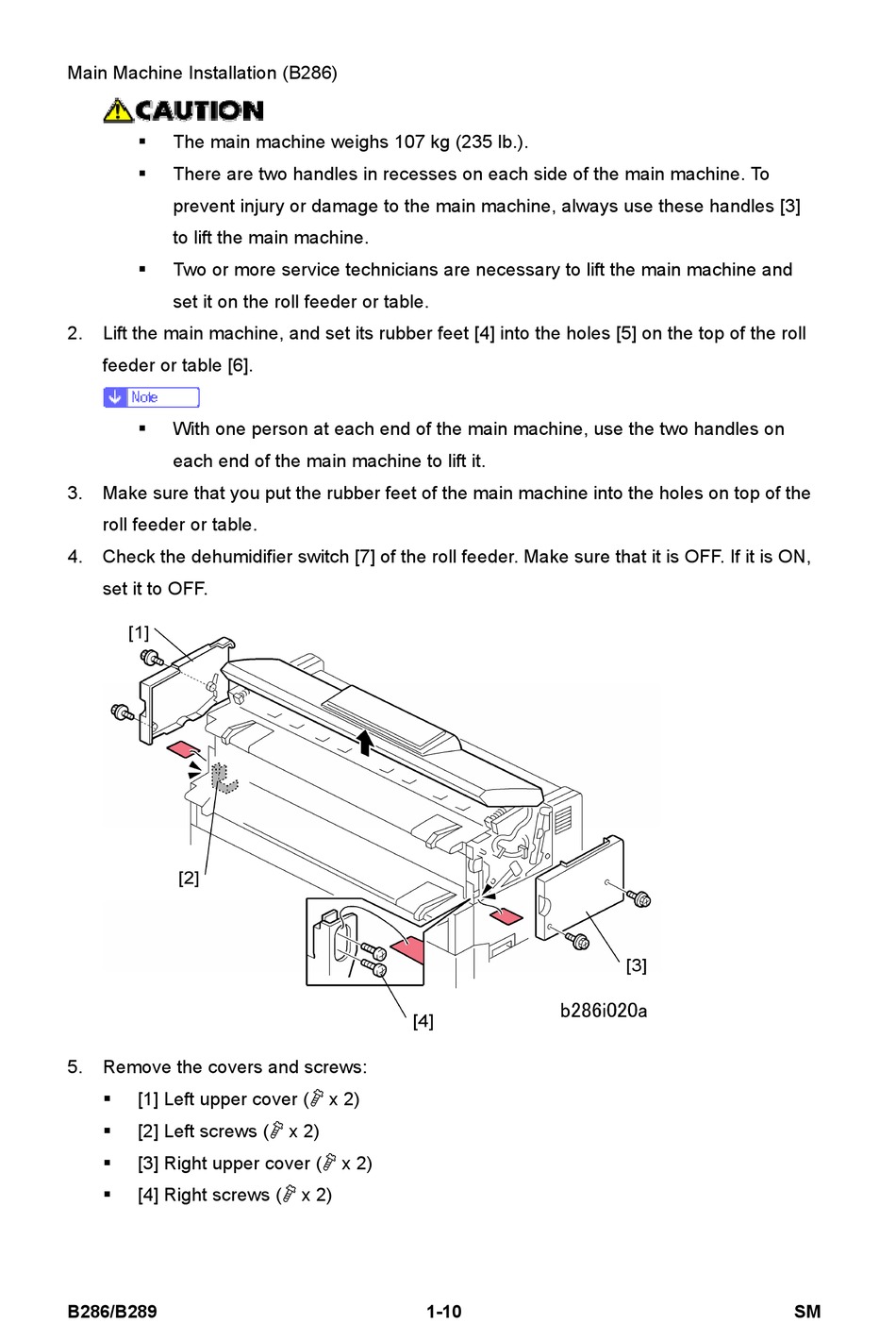

Main Machine Installation (B286)
! The main machine weighs 107 kg (235 lb.).
! There are two handles in recesses on each side of the main machine. To
prevent injury or damage to the main machine, always use these handles [3]
to lift the main machine.
Two or more service technicians are necessary to lift the main machine and
!
set it on the roll feeder or table.
2. Lift the main machine, and set its rubber feet [4] into the holes [5] on the top of the roll
feeder or table [6].
! With one person at each end of the main machine, use the two handles on
each end of the main machine to lift it.
3. Make sure that you put the rubber feet of the main machine into the holes on top of the
roll feeder or table.
4. Check the dehumidifier switch [7] of the roll feeder. Make sure that it is OFF. If it is ON,
set it to OFF.
5. Remove the covers and screws:
! [1] Left upper cover (" x 2)
[2] Left screws (" x 2)
!
! [3] Right upper cover (" x 2)
! [4] Right screws (" x 2)
