SNM-1001L Satellite Modem
Installation
4. After completing the above installation procedure turn on the modem. If the
Reed-Solomon
Cards (TX or RX in
Either Slot)
Reed-Solomon PCB was installed properly, the Utility Interface/Interface Module menu
will display "OPT:Reed-Solomon."

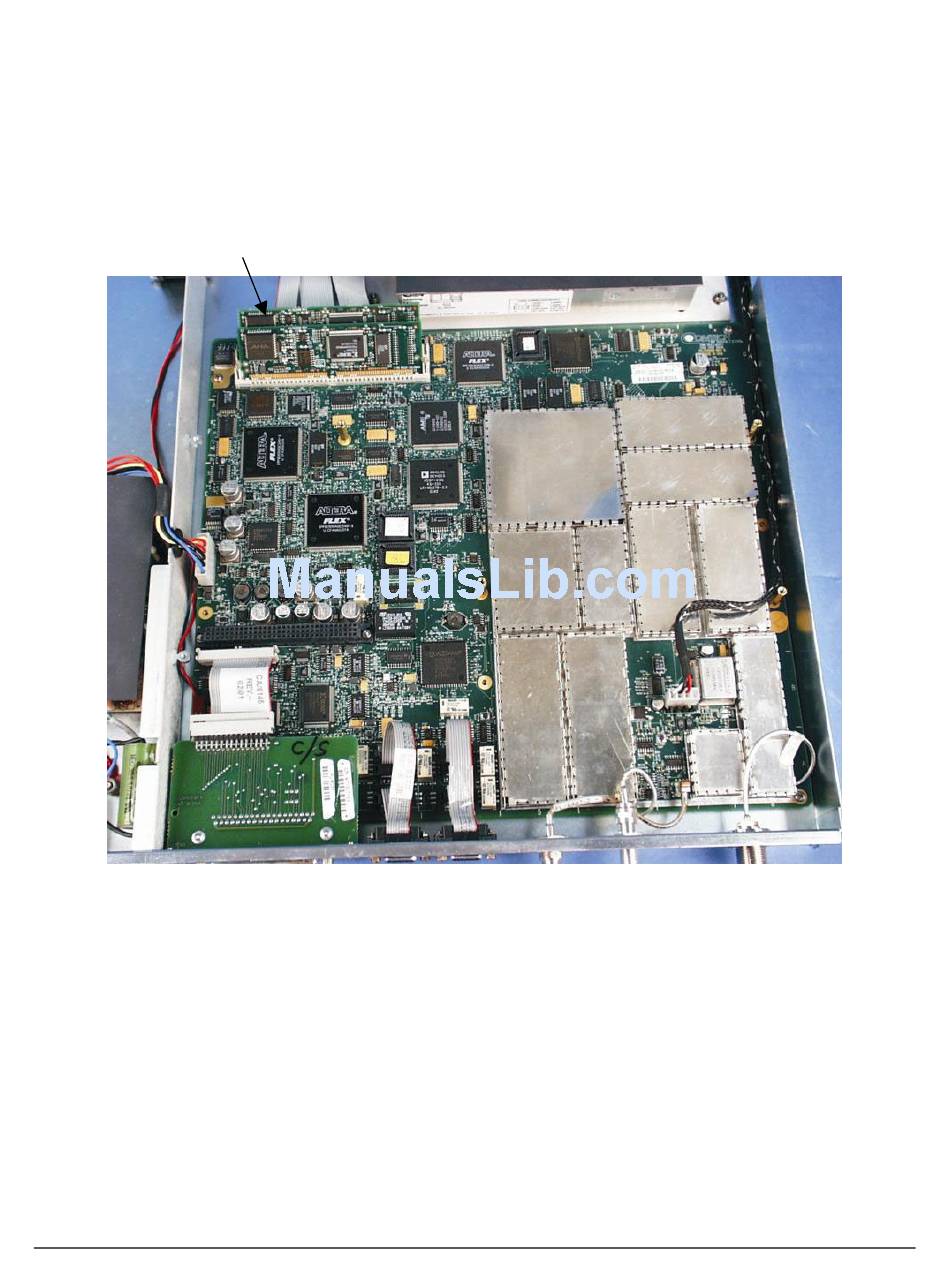

Figure 2-2. Reed-Solomon Codec Installation

2–5
Revision 1
MN/SNM1001L.OM
