Displaying and Maintaining Ethernet OAM Configuration

To do...
Display global Ethernet OAM
configuration
Display the statistics on critical
events after an Ethernet OAM
connection is established
Display the statistics on Ethernet
OAM link error events after an
Ethernet OAM connection is
established or after you clear the
statistics
Display the information about an
Ethernet OAM connection
Clear statistics on Ethernet OAM
packets and Ethernet OAM link
error events

Ethernet OAM Configuration Example

Network requirements
Enable Ethernet OAM on Device A and Device B to auto-detect link errors between the two
devices.
Monitor the performance of the link between Device A and Device B by collecting statistics about
the error frames received by Device A.

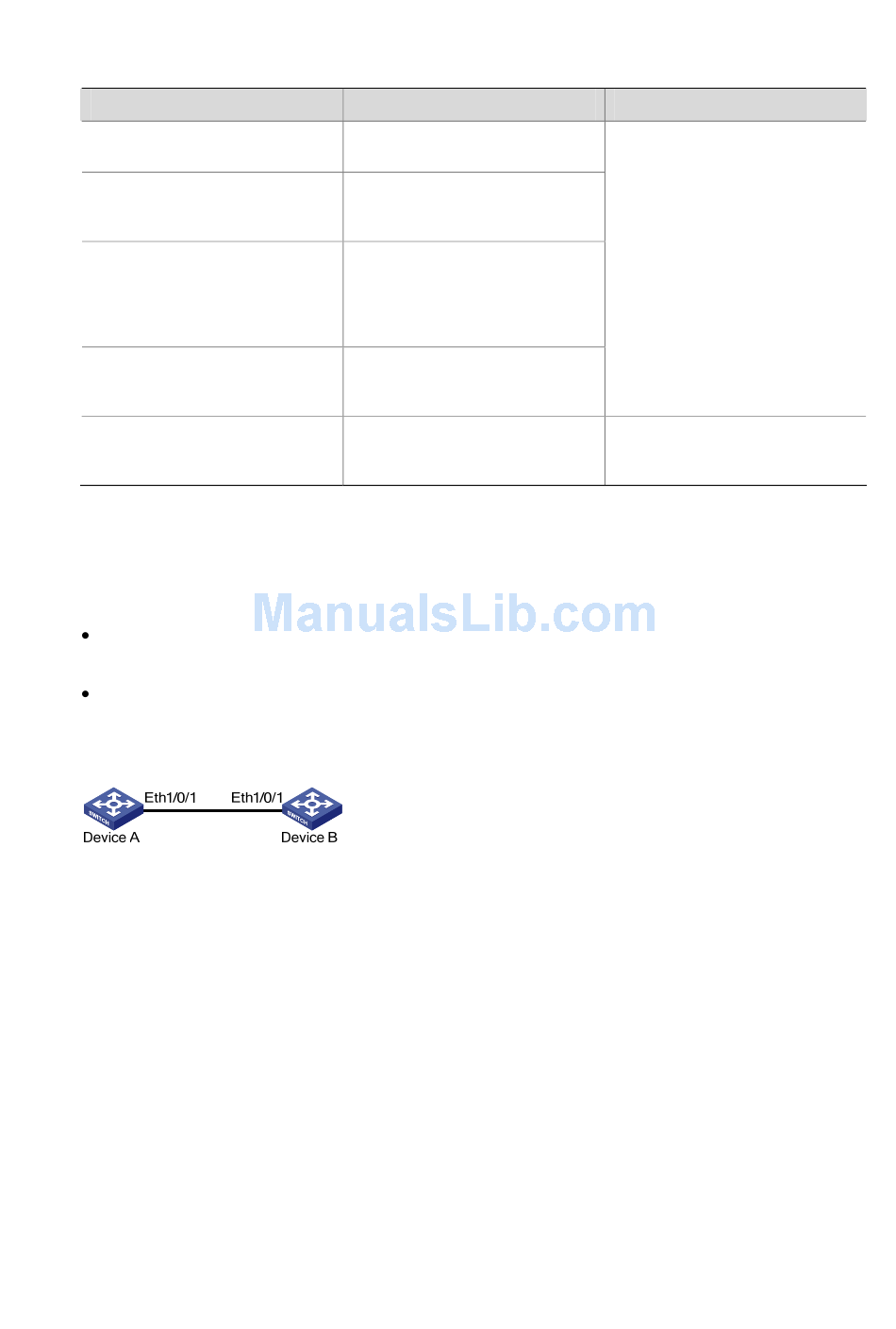

Figure 1-2 Network diagram for Ethernet OAM configuration
Configuration procedure
1) Configure Device A
# Configure Ethernet 1/0/1 to operate in passive Ethernet OAM mode and enable Ethernet OAM for it.
<DeviceA> system-view
[DeviceA] interface ethernet 1/0/1
[DeviceA-Ethernet1/0/1] oam mode passive
[DeviceA-Ethernet1/0/1] oam enable
[DeviceA-Ethernet1/0/1] quit
# Set the errored frame detection interval to 20 seconds and set the errored frame event triggering
threshold to 10.
[DeviceA] oam errored-frame period 20
[DeviceA] oam errored-frame threshold 10
2) Configure Device B
Use the command...
display oam configuration
display oam critical-event
[ interface interface-type
interface-number ]
display oam link-event { local |
remote } [ interface interface-type
interface-number ]
display oam { local | remote }
[ interface interface-type
interface-number ]
reset oam [ interface
interface-type interface-number ]
1-10
Remarks
Available in any view
Available in user view only
