FIGURE:
Figure Legend
1
2
3
4
5
6
7
8
Related Information
"Rear Panel Components" on page 6

Connecting Data and Management Ports

"Connect the SER MGT Port Cable" on page 44
"Connect the NET MGT Port Cable" on page 45
"Connect the Ethernet Network Cables" on page 46
"Connect Other Data Cables" on page 47

▼ Connect the SER MGT Port Cable

The SER MGT port is the farthest left RJ-45 port on the rear panel.
Connect a Category 5 cable from the SER MGT port to the terminal device.
44
SPARC T4-1 Server Installation Guide • August 2013

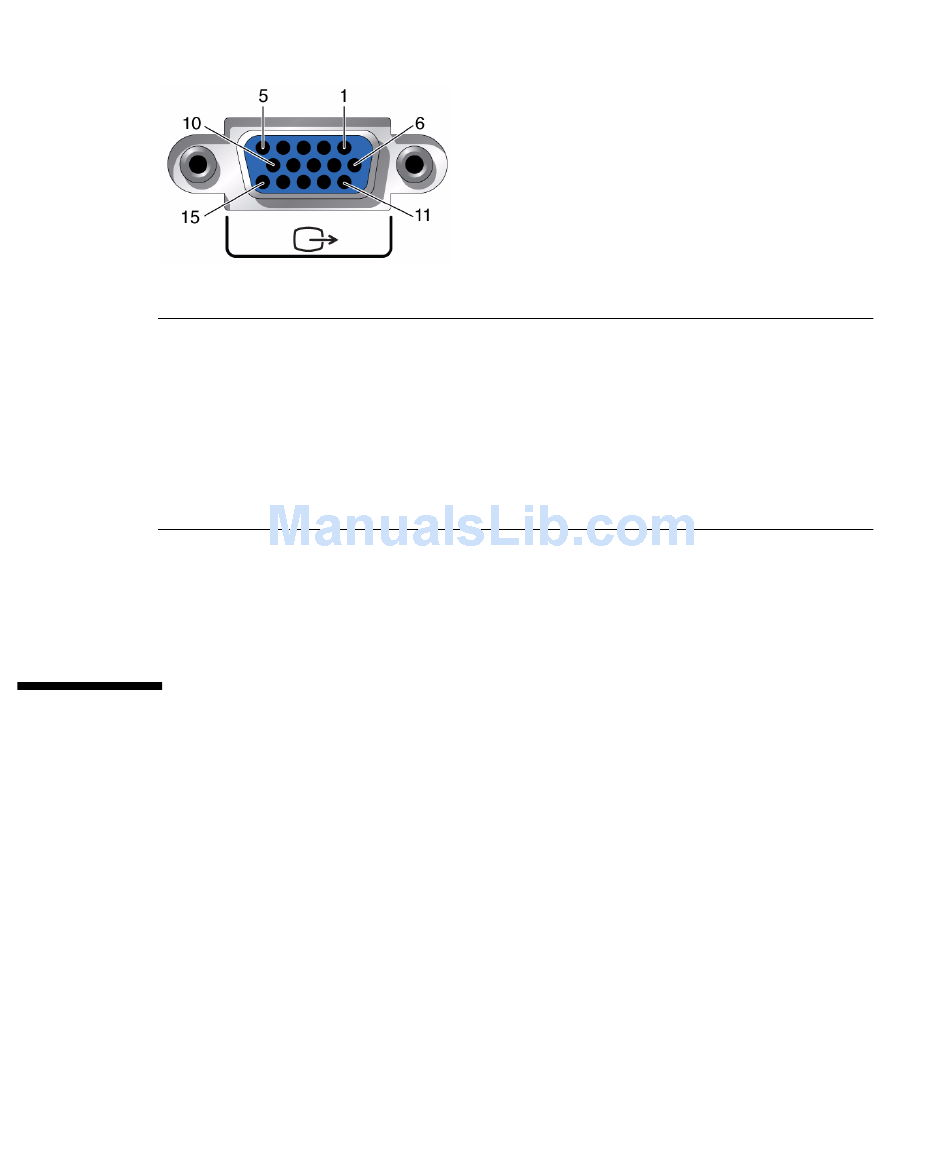

Video Connector
Red Video
Green Video
Blue Video
Monitor ID - Bit 2 (Ground)
Ground
Red Ground
Green Ground
Blue Ground
9
+5V
10 Sync Ground
11 Monitor ID - Bit 0 (Ground)
12 VGA 12C Serial Data
13 Horizontal Sync
14 Vertical Sync
15 VGA 12C Serial Clock
