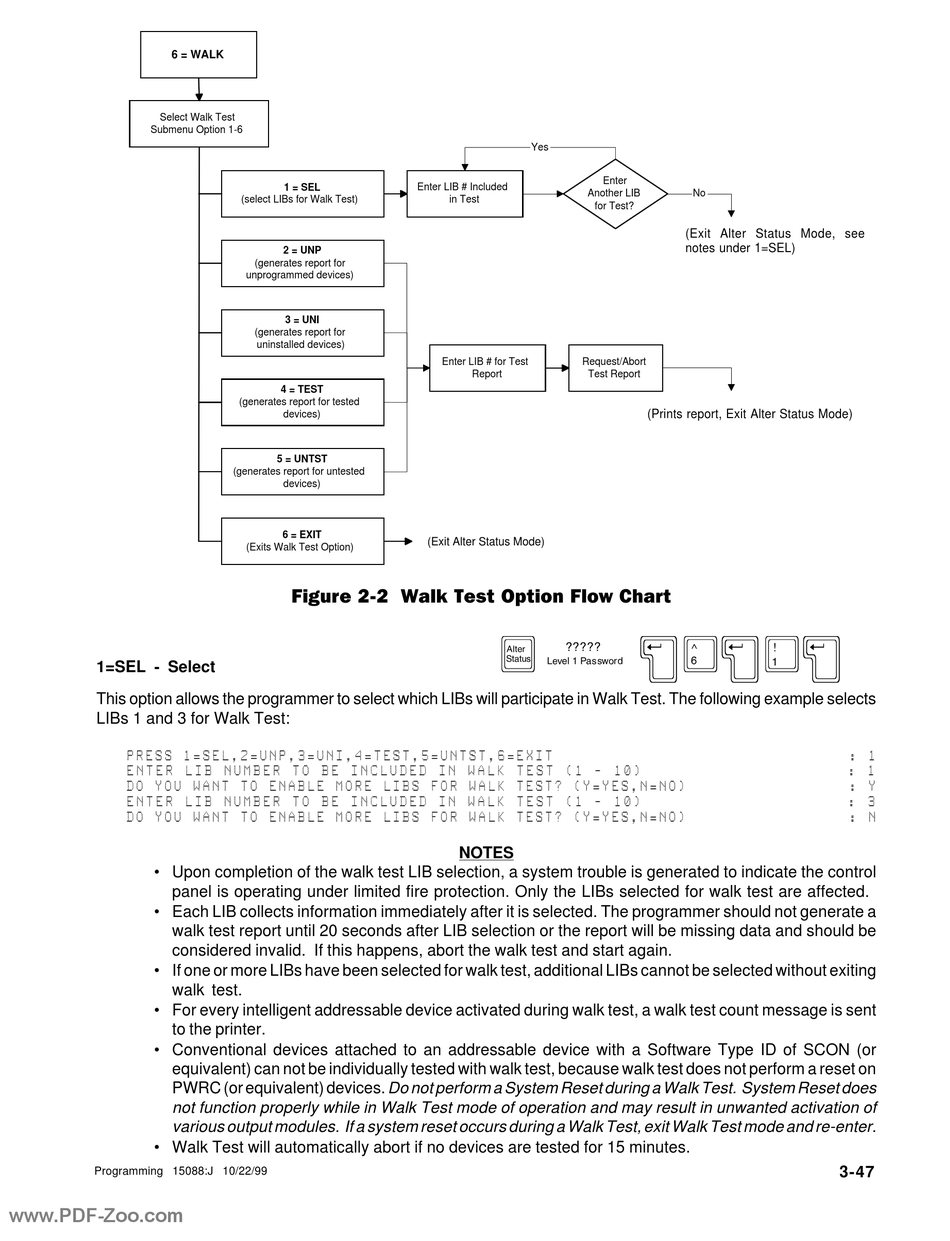

Walk Test Option Flow Chart - Notifier AM2020 User Manual

6 = WALK
Select Walk Test
Submenu Option 1-6
1=SEL - Select
This option allows the programmer to select which LIBs will participate in Walk Test. The following example selects
LIBs 1 and 3 for Walk Test:
PRESS@1=SEL,2=UNP,3=UNI,4=TEST,5=UNTST,6=EXIT@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@:@1
ENTER@LIB@NUMBER@TO@BE@INCLUDED@IN@WALK@TEST@(1@-@10)@@@@@@@@@@@@@@@@@@@@@:@1
DO@YOU@WANT@TO@ENABLE@MORE@LIBS@FOR@WALK@TEST?@(Y=YES,N=NO)@@@@@@@@@@@@@@@@@:@Y
ENTER@LIB@NUMBER@TO@BE@INCLUDED@IN@WALK@TEST@(1@-@10)@@@@@@@@@@@@@@@@@@@@@:@3
DO@YOU@WANT@TO@ENABLE@MORE@LIBS@FOR@WALK@TEST?@(Y=YES,N=NO)@@@@@@@@@@@@@@@@@:@N
• Upon completion of the walk test LIB selection, a system trouble is generated to indicate the control
panel is operating under limited fire protection. Only the LIBs selected for walk test are affected.
• Each LIB collects information immediately after it is selected. The programmer should not generate a
walk test report until 20 seconds after LIB selection or the report will be missing data and should be
considered invalid. If this happens, abort the walk test and start again.
• If one or more LIBs have been selected for walk test, additional LIBs cannot be selected without exiting
walk test.
• For every intelligent addressable device activated during walk test, a walk test count message is sent
to the printer.
• Conventional devices attached to an addressable device with a Software Type ID of SCON (or
equivalent) can not be individually tested with walk test, because walk test does not perform a reset on
PWRC (or equivalent) devices. Do not perform a System Reset during a Walk Test. System Reset does
not function properly while in Walk Test mode of operation and may result in unwanted activation of
various output modules. If a system reset occurs during a Walk Test, exit Walk Test mode and re-enter.
• Walk Test will automatically abort if no devices are tested for 15 minutes.
Programming 15088:J 10/22/99
www.PDF-Zoo.com
1 = SEL
(select LIBs for Walk Test)
2 = UNP
(generates report for
unprogrammed devices)
3 = UNI
(generates report for
uninstalled devices)
4 = TEST
(generates report for tested
devices)
5 = UNTST
(generates report for untested
devices)
6 = EXIT
(Exits Walk Test Option)
Yes
Enter LIB # Included
Another LIB
in Test
for Test?
Enter LIB # for Test Request/Abort
Report Test Report
(Exit Alter Status Mode)
C | X6X1X
NOTES
Enter
No
(Exit Alter Status Mode, see
notes under 1=SEL)
(Prints report, Exit Alter Status Mode)
3-47
