Door Assembly Instructions

Hinges can be either left or right mounted. The
illustrations and text depict a left-mount example. For
right mounting, simply substitute right for left in the
instructions.

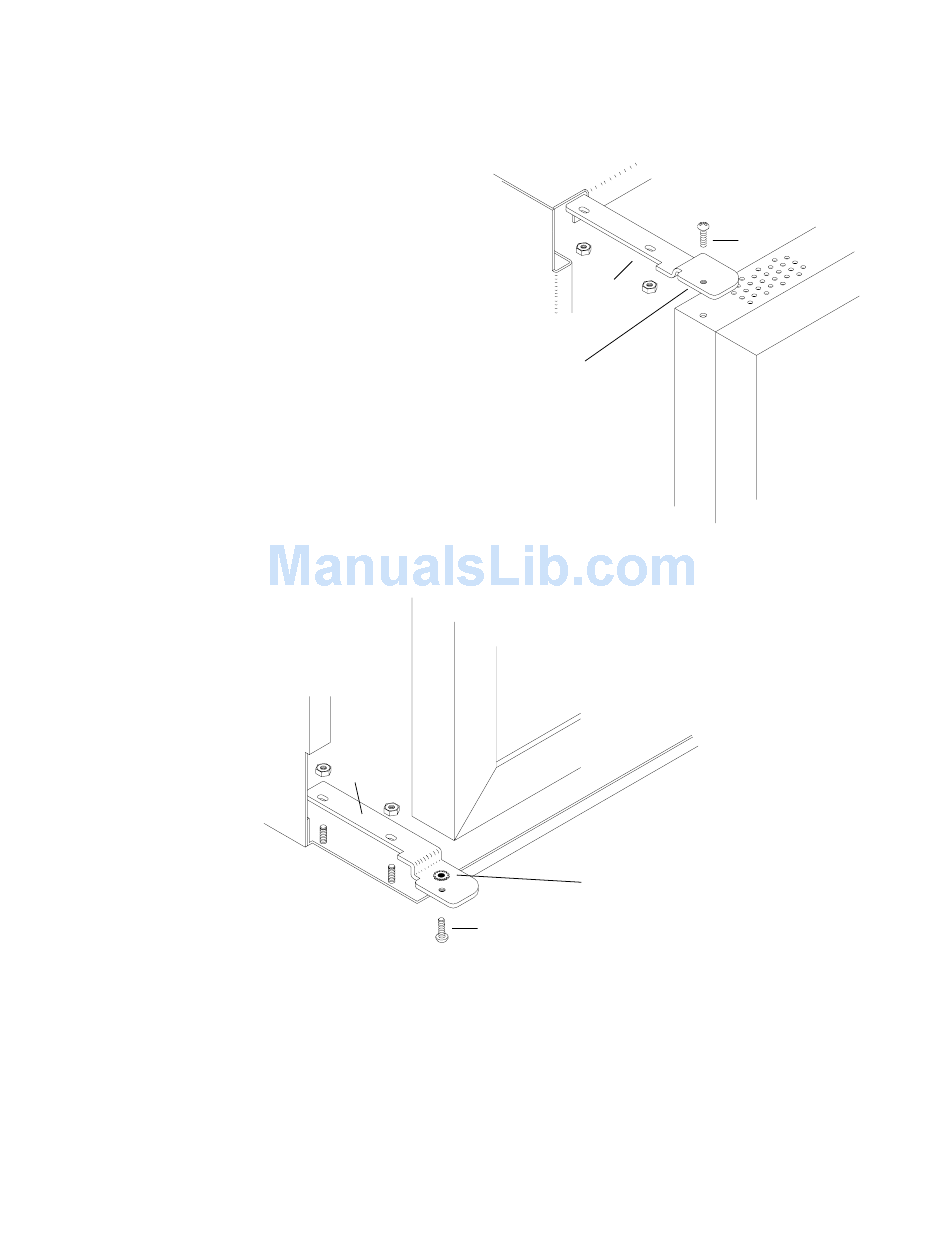

1) Insert door hinges (A) into the top and bottom
slots of the side to be hinged (in this case the left
side). Secure the hinges to the studs in the
backbox with the nuts provided. Note that the
small hole on the outer tab faces outward.
2) Thread stud (B) into the BOTTOM hinge first.
Thread from the bottom up. Place the grounding
star washer on the stud. Place the door's lower
corner onto this stud. Placing the door on the
lower stud first provides a place for the door to
rest while completing the assembly.
3) Align the door on the backbox, so that the door
sits directly under the top hinge. Thread
remaining stud (B) into the TOP hinge and
through the hole in the top of the door. The door
should now swing freely.
Installation 15088: J 10/22/99
www.PDF-Zoo.com
Small Hole
Faces Outward
Left Corner
A
B
Top
Left Corner
A
Bottom
Star
Washer
B
1-9
