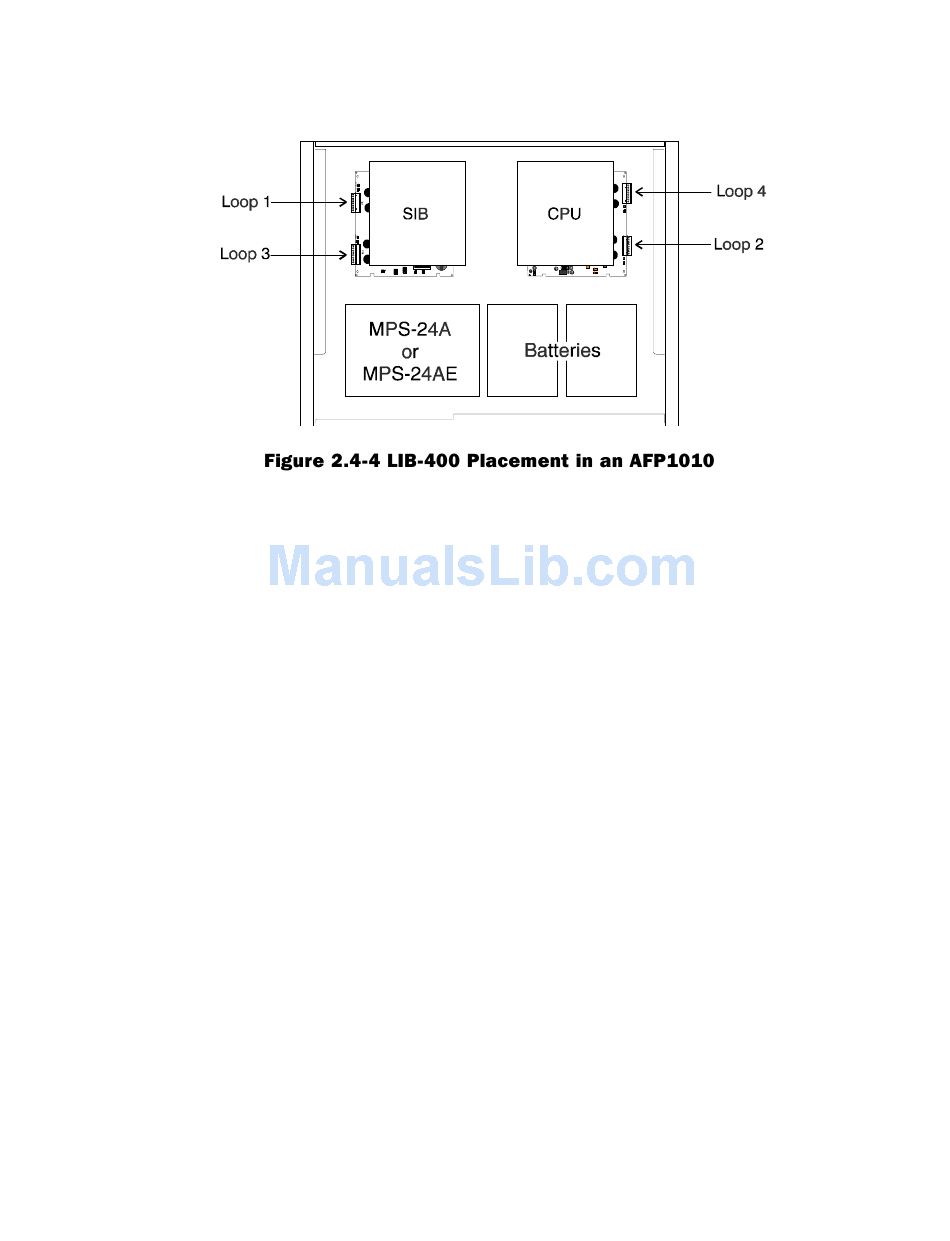

Figure 2.4-4 depicts a CAB-A3 cabinet used with LIB-400 modules exclusively, which means it may house a
maximum four loop AFP1010 system. An ICA-4L or ICA-4 chassis (neither of which is shown in the figure) is
required for mounting the LIB-400.
Figure 2.4-5 depicts the AFP1010 with a combination of LIB-400, LIB-200A, and LIB-200 modules installed in
the first and second rows of a CAB-C3 cabinet. Two ICA chassis are required, but are not shown in the figure.
The LIB-400 always occupies both addresses (refer to Figures 2.4-4 and 2.4-6). Various combinations of LIB
boards may be installed (refer to Figure 2.4-3) as long as the following measures are taken:
• Do not install duplicate loop numbers.
• When installed in the ICA the LIB-200 or LIB-200A always occupies the lower number address for a
given ICA position.
• Do not install LIB boards in the back right or back left positions of the second row.
• Do not install LIB boards in row three.
Installation 15088: J 10/22/99
