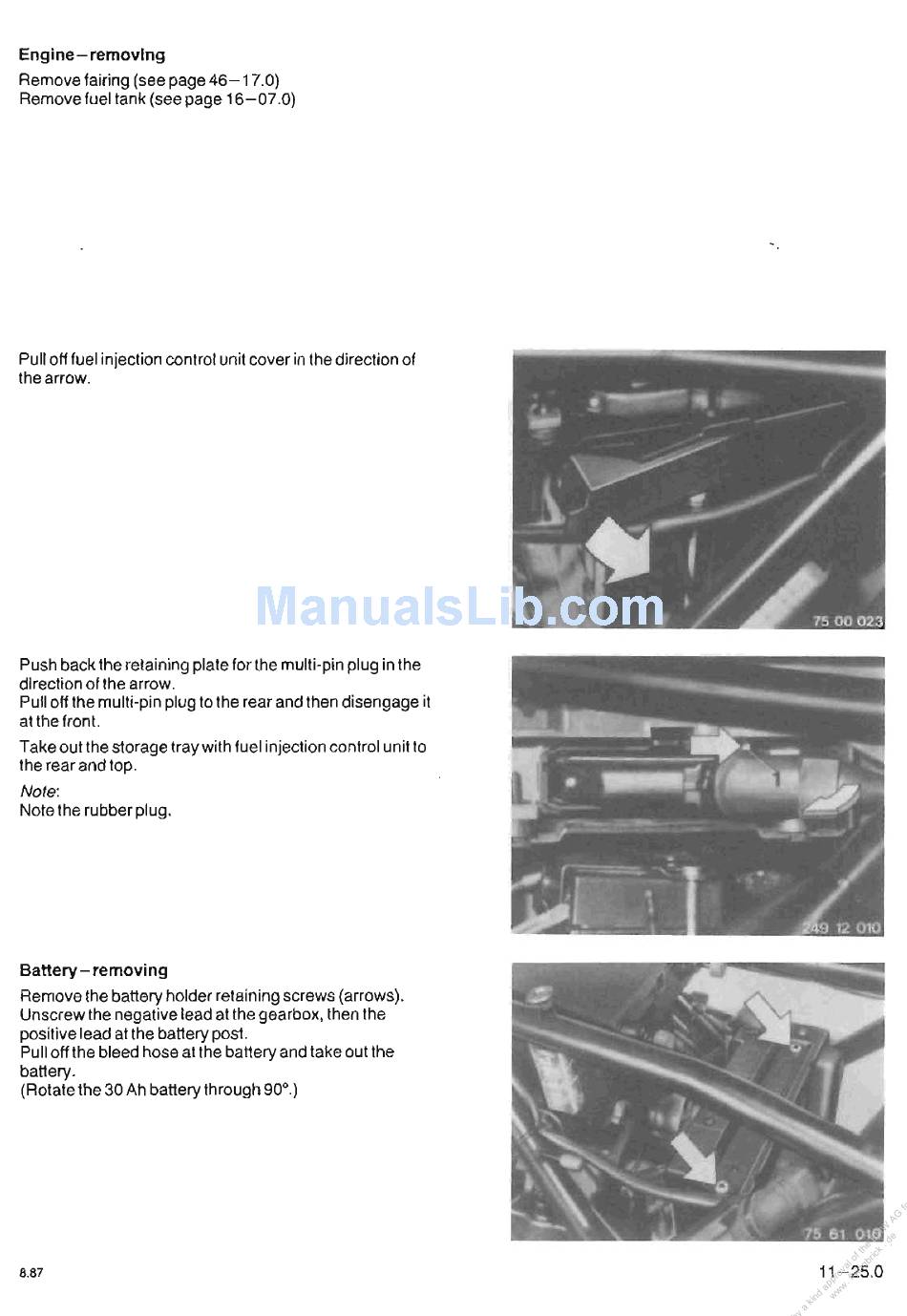

Engine-removing
Removefairing (see page 46-17.0)
Removefuel tank (see page 16- 07 .0)
Pull offfuel injection control unit cover in the direction of
thearrow.
Push back the retaining plate forthe multi-pin plug in the
direction of the arrow.
Pull off the multi-pin plug to the rear and then disengage it
at the front.
Take outthe storage tray with fuel injection control unit to
the rear and top.
Note:
Note the rubber plug .
Battery - removing
Remove the battery holder retaining screws (arrows) .
Unscrew the negative lead at the gearbox, then the
positive lead at the battery post.
Pull offthe bleed hose atthe battery and take outthe
battery.
(Rotatethe30 Ah batterythrough 90°.)
8.87
11-25.0
