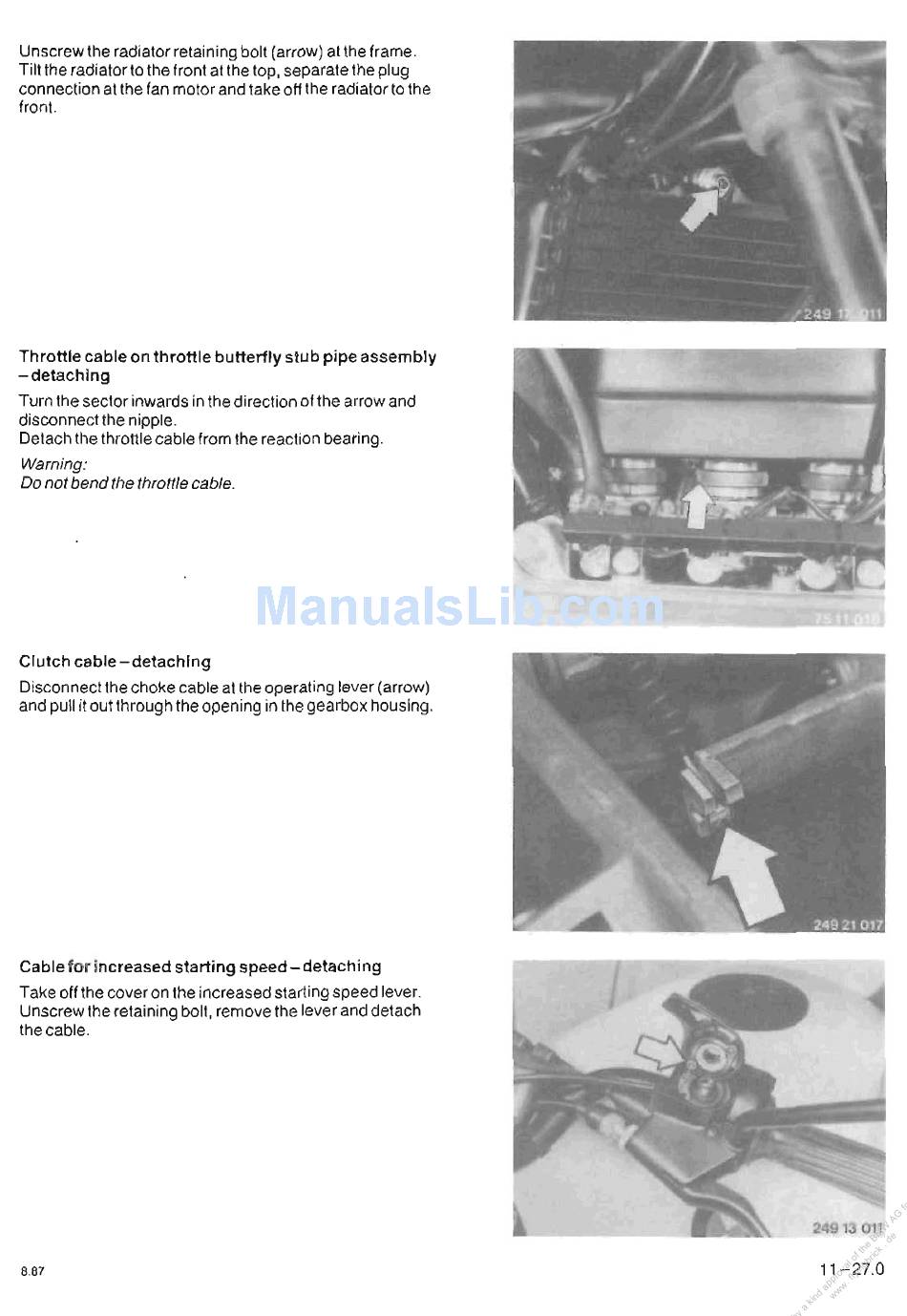

Unscrewthe radiator retaining bolt (arrow) atthe frame.
Tilt the radiatorto the front atthe top, separate the plug
connection
at
the
fan
motor and take off the radiator to the
front.
Throttle cable on throttle butterfly stub pipe assembly
-detaching
Turn the sector inwards in the direction of the
arrow and
disconnect
the nipple.
Detach
the
throttle
cable
from the reaction bearing.
Warning:
00
not
bend
the throttfe cable.
Clutch cable-detaching
Disconnectthe choke cable at the operating
lever
(arrow)
and
pull it outthrough the
opening
in the gearbox housing.
Cable for increased starting speed -detaching
Take
offthe
coveron the
increased
starting
speed lever.
Unscrew the retaining bolt, remove the lever
and detach
thecable.
8.87
24913011
11
-27.
