3. Press an output button. The buttons for the tied input and all tied
outputs light.
4. Press the View button again to exit View mode. All input and output
buttons return to an unlit state.

Saving or Recalling a Preset

The DMS switchers have 32 global memory presets.
1. Save a preset — Press and hold the Preset button until it flashes.
Save a
preset
Recall a preset — Press and release the Preset button.
Recall a
preset
2. Press and release the desired input or output button.
3. Press and release the Enter button.

Locking Out the Front Panel (Executive Mode)

To toggle the front panel lock on and off, simultaneously press and hold
the Enter button and the Esc button until the Preset and View buttons
blink twice (approximately 2 seconds).
Press and hold Enter and
Esc simultaneously to toggle
executive mode on or off.
ENTER
10 DMS 1600, DMS 2000, DMS 3200, DMS 3600 • Front Panel Operations
2 seconds
PRESET
Press and hold.
PRESET
Press and release.
All input and output buttons with assigned presets light red.
When a preset is saved, the configuration data at
assigned preset locations will be overwritten.

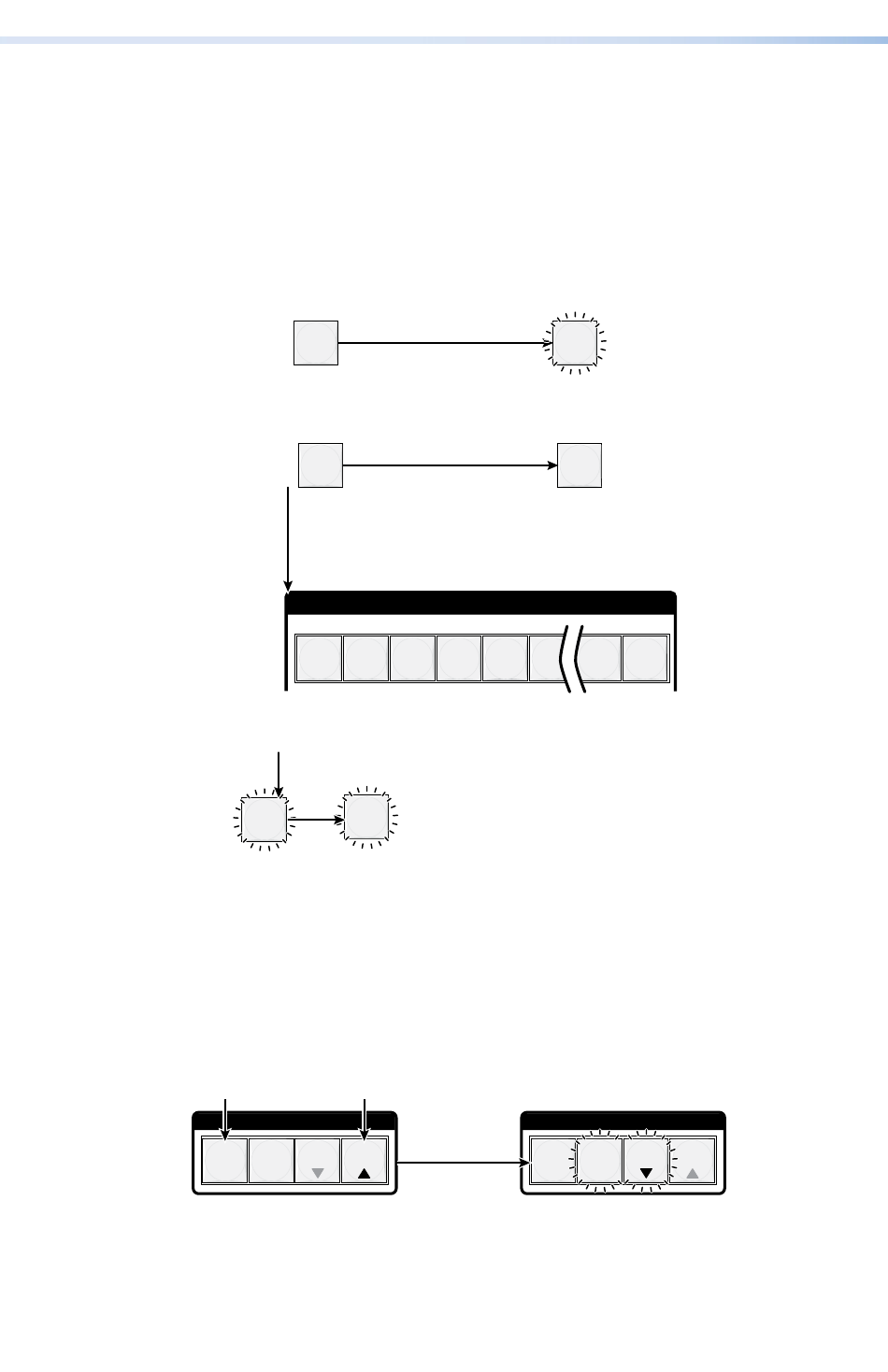

1 2 3
The button blinks red to indicate that
this preset is selected to save or recall.
Enter blinks red to
1
ENTER
indicate the need to
activate the save or recall.
C O N T R O L
2 seconds
PRESET VIEW ESC
PRESET
Preset blinks.
PRESET
Preset blinks.
INPUTS
4 5 6 15
C O N T R O L
ENTER PRESET
Preset and View blink twice
to indicate the mode change.
Release the buttons.
16
VIEW ESC
