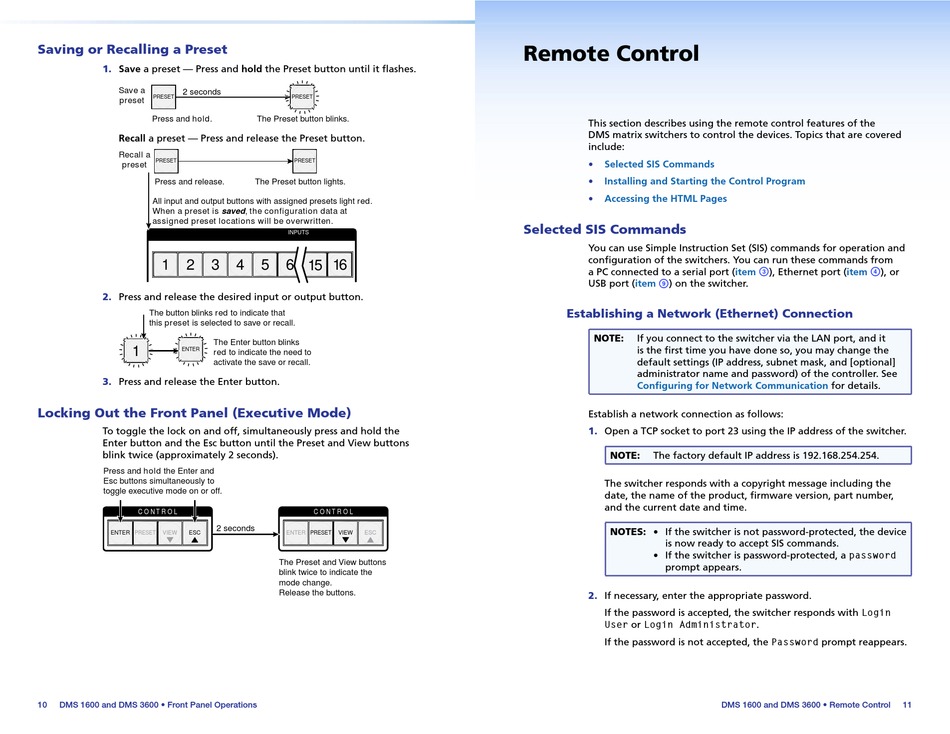

Saving or Recalling a Preset

1. Save a preset — Press and hold the Preset button until it flashes.
Save a
2 seconds
PRESET
preset
Press and hold.
Recall a preset — Press and release the Preset button.
Recall a
PRESET
preset
Press and release.
All input and output buttons with assigned presets light red.
When a preset is saved, the configuration data at
assigned preset locations will be overwritten.
1 2 3
2. Press and release the desired input or output button.
The button blinks red to indicate that
this preset is selected to save or recall.
The Enter button blinks
1
ENTER
red to indicate the need to
activate the save or recall.
3. Press and release the Enter button.

Locking Out the Front Panel (Executive Mode)

To toggle the lock on and off, simultaneously press and hold the
Enter button and the Esc button until the Preset and View buttons
blink twice (approximately 2 seconds).
Press and hold the Enter and
Esc buttons simultaneously to
toggle executive mode on or off.
C O N T R O L
2 seconds
ENTER PRESET
VIEW ESC
10 DMS 1600 and DMS 3600 • Front Panel Operations
PRESET
The Preset button blinks.
PRESET
The Preset button lights.
INPUTS
4 5 6 15 16
C O N T R O L
ENTER PRESET
VIEW ESC
The Preset and View buttons
blink twice to indicate the
mode change.
Release the buttons.

Remote Control

This section describes using the remote control features of the
DMS matrix switchers to control the devices. Topics that are covered
include:
• Selected SIS Commands
•
Installing and Starting the Control Program
• Accessing the HTML Pages
Selected SIS Commands
You can use Simple Instruction Set (SIS) commands for operation and
configuration of the switchers. You can run these commands from
a PC connected to a serial port (item
i
USB port (item ) on the switcher.

Establishing a Network (Ethernet) Connection

NOTE:
If you connect to the switcher via the LAN port, and it
is the first time you have done so, you may change the
default settings (IP address, subnet mask, and [optional]
administrator name and password) of the controller. See
Configuring for Network
Establish a network connection as follows:
1.
Open a TCP socket to port 23 using the IP address of the switcher.
NOTE: The factory default IP address is 192.168.254.254.
The switcher responds with a copyright message including the
date, the name of the product, firmware version, part number,
and the current date and time.
NOTES: • If the switcher is not password-protected, the device
is now ready to accept SIS commands.
• If the switcher is password-protected, a password
prompt appears.
2. If necessary, enter the appropriate password.
If the password is accepted, the switcher responds with Login
User or Login Administrator.
If the password is not accepted, the Password prompt reappears.
c d
), Ethernet port (item ), or
Communication for details.
DMS 1600 and DMS 3600 • Remote Control 11
