Saving or recalling a Global Preset

1. Press the Esc button to clear all pending changes (flashes green once).
2. Saving a global preset — Press and hold the Preset button until it flashes red.
OR Recalling a global preset — Press and release the Preset button (lights red).
All previously saved presets also light red.
Step 2.
To save a global preset –
Press and hold the Preset
button until it flashes red.
C O N T R O L
VIEW ESC
ENTER PRESET
N To recall a global preset –
Press and release the Preset button (lights red).
Step 3.
Press and release the desired (unlit or lit) input or output
button (here output 5, preset #21). The button flashes red.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
N To recall a global preset – Press and release a lit Preset button.

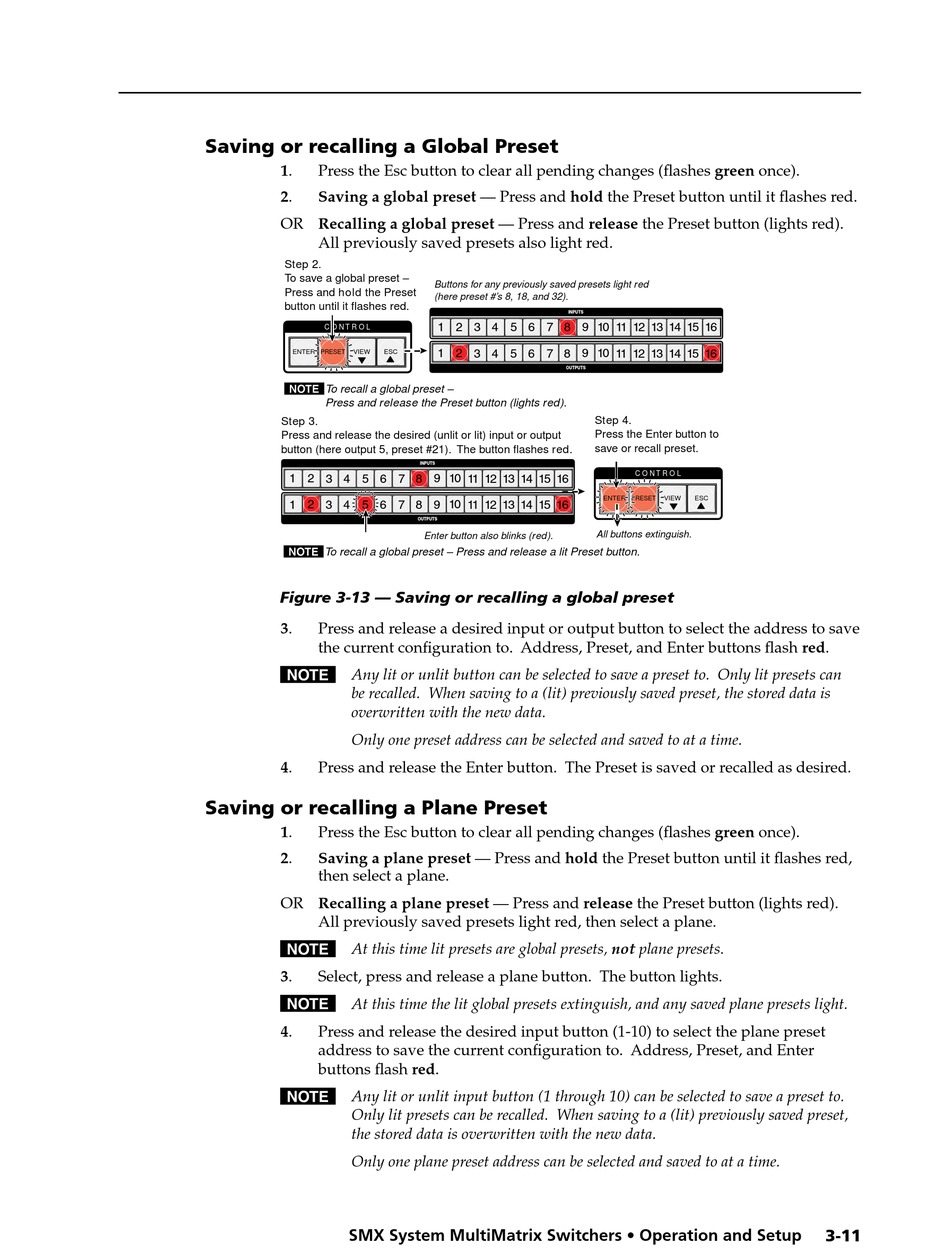

Figure 3-13 — Saving or recalling a global preset
3. Press and release a desired input or output button to select the address to save
the current configuration to. Address, Preset, and Enter buttons flash red.
N Any lit or unlit button can be selected to save a preset to. Only lit presets can
be recalled. When saving to a (lit) previously saved preset, the stored data is
overwritten with the new data.
Only one preset address can be selected and saved to at a time.
4. Press and release the Enter button. The Preset is saved or recalled as desired.

Saving or recalling a Plane Preset

1. Press the Esc button to clear all pending changes (flashes green once).
2. Saving a plane preset — Press and hold the Preset button until it flashes red,
then select a plane.
OR Recalling a plane preset — Press and release the Preset button (lights red).
All previously saved presets light red, then select a plane.
N At this time lit presets are global presets, not plane presets.
3. Select, press and release a plane button. The button lights.
N At this time the lit global presets extinguish, and any saved plane presets light.
Press and release the desired input button (1-10) to select the plane preset
4.
address to save the current configuration to. Address, Preset, and Enter
buttons flash red.
N Any lit or unlit input button (1 through 10) can be selected to save a preset to.
Only lit presets can be recalled. When saving to a (lit) previously saved preset,
the stored data is overwritten with the new data.
Only one plane preset address can be selected and saved to at a time.
SMX System MultiMatrix Switchers • Operation and Setup
Buttons for any previously saved presets light red
(here preset #'s 8, 18, and 32).
INPUTS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
OUTPUTS
Step 4.
Press the Enter button to
save or recall preset.
INPUTS
OUTPUTS
All buttons extinguish.
Enter button also blinks (red).
C O N T R O L
ENTER PRESET VIEW ESC
