Saving or Recalling a Preset

A preset is a configuration that has been stored.
1.
2.
3.

Setting the Front Panel Locks (Executive Modes)

The matrix switcher has three levels of front panel security lock that limit the operation of the
switcher from the front panel. The three levels are:
•
•
•

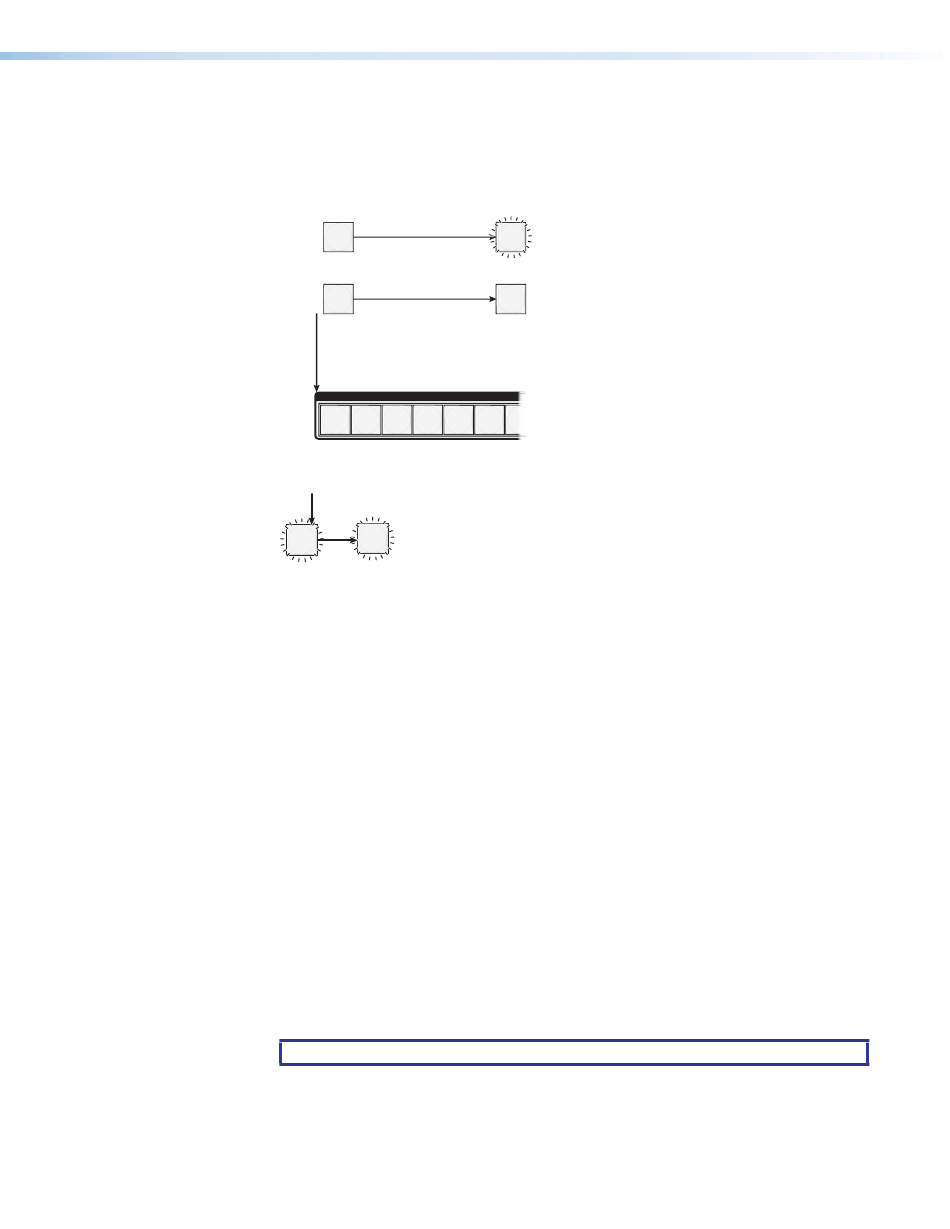

Save a preset — Press and hold the PRESET button until it flashes.
Recall a preset — Press and release the PRESET button.
Save a
2 seconds
PRESET
preset
Press and hold. Preset button blinks.
Recall a
PRESET
preset
Press and release. Preset button lights.
All input and output buttons with
assigned presets light red.
The configuration data at assigned
preset locations will be overwritten.
1 2 3 4 5 6 7
Press and release the desired INPUT or OUTPUT button.
The button blinks red to indicate that
this preset is selected to save or recall.
The Enter button blinks
1
ENTER
red to indicate the need to
activate the save or recall.
Press and release the ENTER button.
Lock mode 0 — The front panel is completely unlocked.
Lock mode 1 — All changes are locked from the front panel (except for setting Lock
mode 2). Some functions can be viewed.
Lock mode 2 — Basic functions are unlocked. Advanced functions are locked and can
be viewed only.
Basic functions consist of:
• Making ties
Saving and recalling presets
•
• Setting input audio gain and attenuation
• Changing Lock modes
Advanced functions consist of:
• Setting audio output mutes
Setting audio output volume
•
• Setting audio/RS-232 wire pair and front panel configuration
NOTE: The switcher is shipped from the factory in Lock mode 2.
PRESET
PRESET
INPUTS
7 7 7 7 7 7 7 7 7 7 7 7
MTPX Plus Series Setup Guide • Front Panel Operation 10
