Supervlan - Zte ZXR10 Command Manual

Related
Commands
Purpose
Command Modes
Syntax
Syntax
Description
Instructions
Example
show supervlan

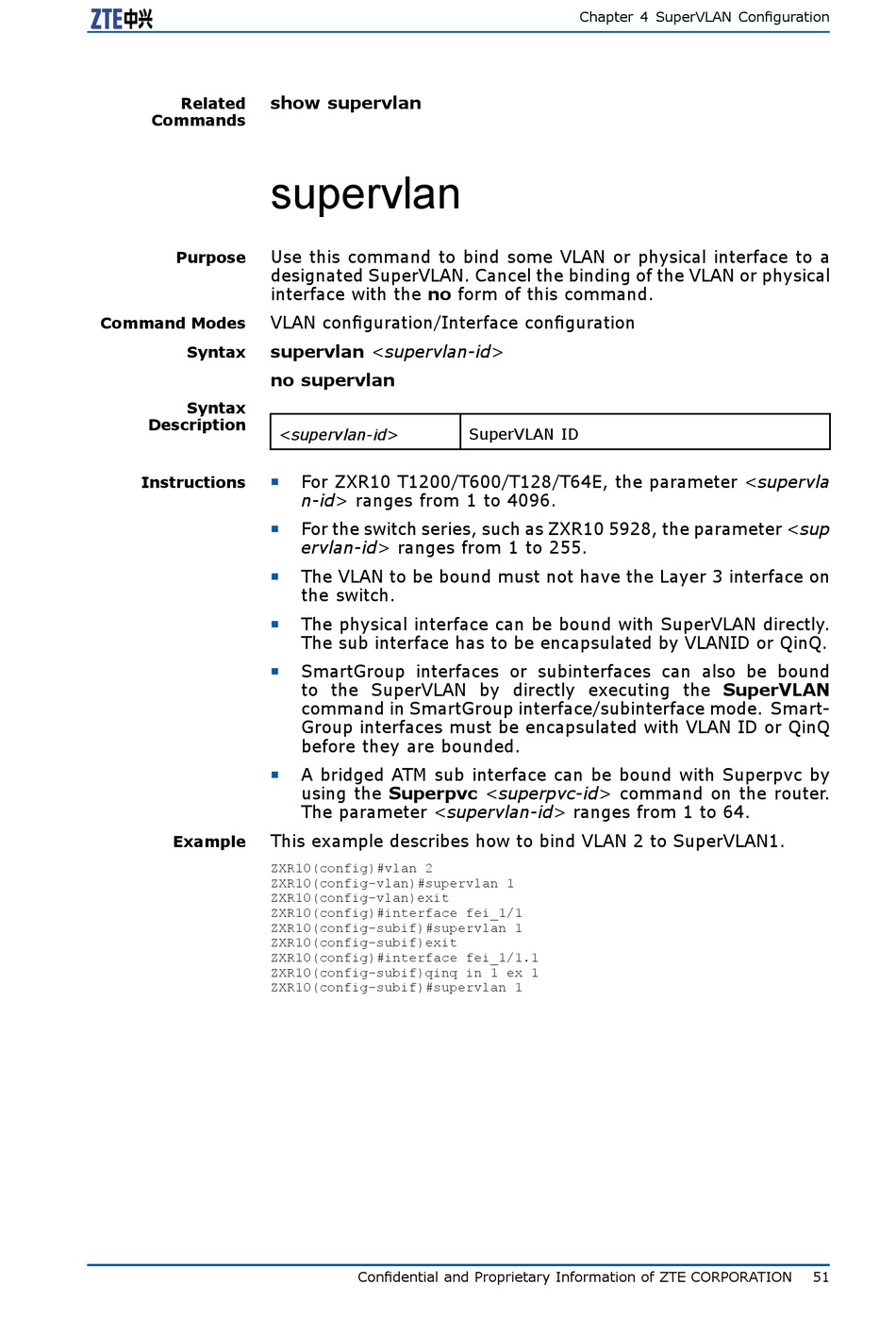

supervlan

Use this command to bind some VLAN or physical interface to a
designated SuperVLAN. Cancel the binding of the VLAN or physical
interface with the no form of this command.
VLAN configuration/Interface configuration
supervlan <supervlan-id>
no supervlan
<supervlan-id>
� For ZXR10 T1200/T600/T128/T64E, the parameter <supervla
n-id> ranges from 1 to 4096.
� For the switch series, such as ZXR10 5928, the parameter <sup
ervlan-id> ranges from 1 to 255.
�
The VLAN to be bound must not have the Layer 3 interface on
the switch.
� The physical interface can be bound with SuperVLAN directly.
The sub interface has to be encapsulated by VLANID or QinQ.
� SmartGroup interfaces or subinterfaces can also be bound
to the SuperVLAN by directly executing the SuperVLAN
command in SmartGroup interface/subinterface mode. Smart-
Group interfaces must be encapsulated with VLAN ID or QinQ
before they are bounded.
� A bridged ATM sub interface can be bound with Superpvc by
using the Superpvc <superpvc-id> command on the router.
The parameter <supervlan-id> ranges from 1 to 64.
This example describes how to bind VLAN 2 to SuperVLAN1.
ZXR10(config)#vlan 2
ZXR10(config-vlan)#supervlan 1
ZXR10(config-vlan)exit
ZXR10(config)#interface fei_1/1
ZXR10(config-subif)#supervlan 1
ZXR10(config-subif)exit
ZXR10(config)#interface fei_1/1.1
ZXR10(config-subif)qinq in 1 ex 1
ZXR10(config-subif)#supervlan 1
Confidential and Proprietary Information of ZTE CORPORATION
Chapter 4 SuperVLAN Configuration
SuperVLAN ID
