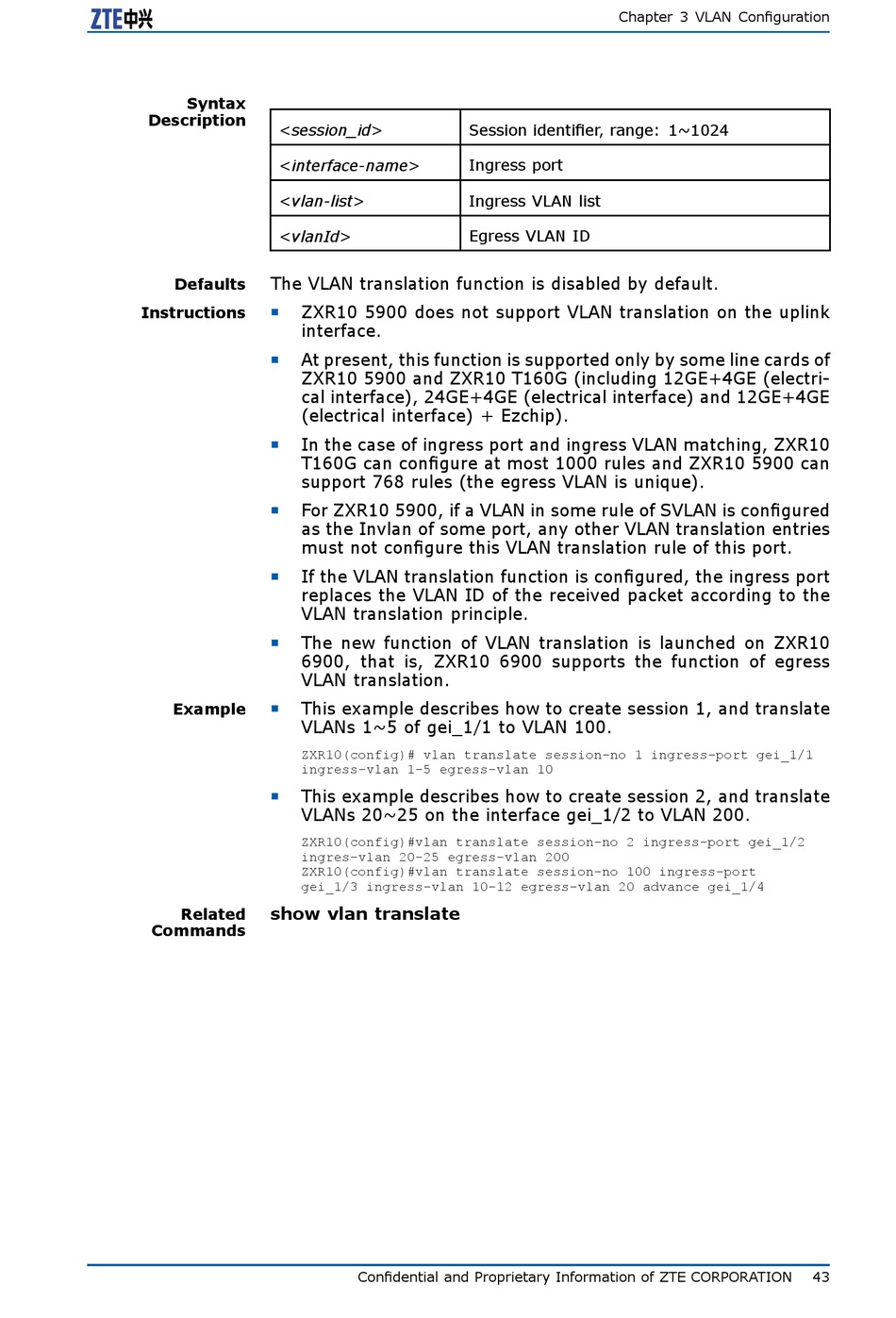

Zte ZXR10 Command Manual page 51

Syntax
Description
<session_id>
<interface-name>
<vlan-list>
<vlanId>
The VLAN translation function is disabled by default.
Defaults
� ZXR10 5900 does not support VLAN translation on the uplink
Instructions
interface.
� At present, this function is supported only by some line cards of
ZXR10 5900 and ZXR10 T160G (including 12GE+4GE (electri-
cal interface), 24GE+4GE (electrical interface) and 12GE+4GE
(electrical interface) + Ezchip).
�
In the case of ingress port and ingress VLAN matching, ZXR10
T160G can configure at most 1000 rules and ZXR10 5900 can
support 768 rules (the egress VLAN is unique).
� For ZXR10 5900, if a VLAN in some rule of SVLAN is configured
as the Invlan of some port, any other VLAN translation entries
must not configure this VLAN translation rule of this port.
�
If the VLAN translation function is configured, the ingress port
replaces the VLAN ID of the received packet according to the
VLAN translation principle.
� The new function of VLAN translation is launched on ZXR10
6900, that is, ZXR10 6900 supports the function of egress
VLAN translation.
� This example describes how to create session 1, and translate
Example
VLANs 1~5 of gei_1/1 to VLAN 100.
ZXR10(config)# vlan translate session-no 1 ingress-port gei_1/1
ingress-vlan 1-5 egress-vlan 10
� This example describes how to create session 2, and translate
VLANs 20~25 on the interface gei_1/2 to VLAN 200.
ZXR10(config)#vlan translate session-no 2 ingress-port gei_1/2
ingres-vlan 20-25 egress-vlan 200
ZXR10(config)#vlan translate session-no 100 ingress-port
gei_1/3 ingress-vlan 10-12 egress-vlan 20 advance gei_1/4
show vlan translate
Related
Commands
Session identifier, range: 1~1024
Ingress port
Ingress VLAN list
Egress VLAN ID
Confidential and Proprietary Information of ZTE CORPORATION
Chapter 3 VLAN Configuration
43
