Vlan Protocol-Map; Vlan Protocol-Map(Port Enabling) - Zte ZXR10 Command Manual

ZXR10 Command Manual (Ethernet Switch Volume)
Related
Commands
Purpose
Command Modes
Syntax
Syntax
Description
Instructions
Example
Related
Commands
Purpose
Command Modes
38 Confidential and Proprietary Information of ZTE CORPORATION

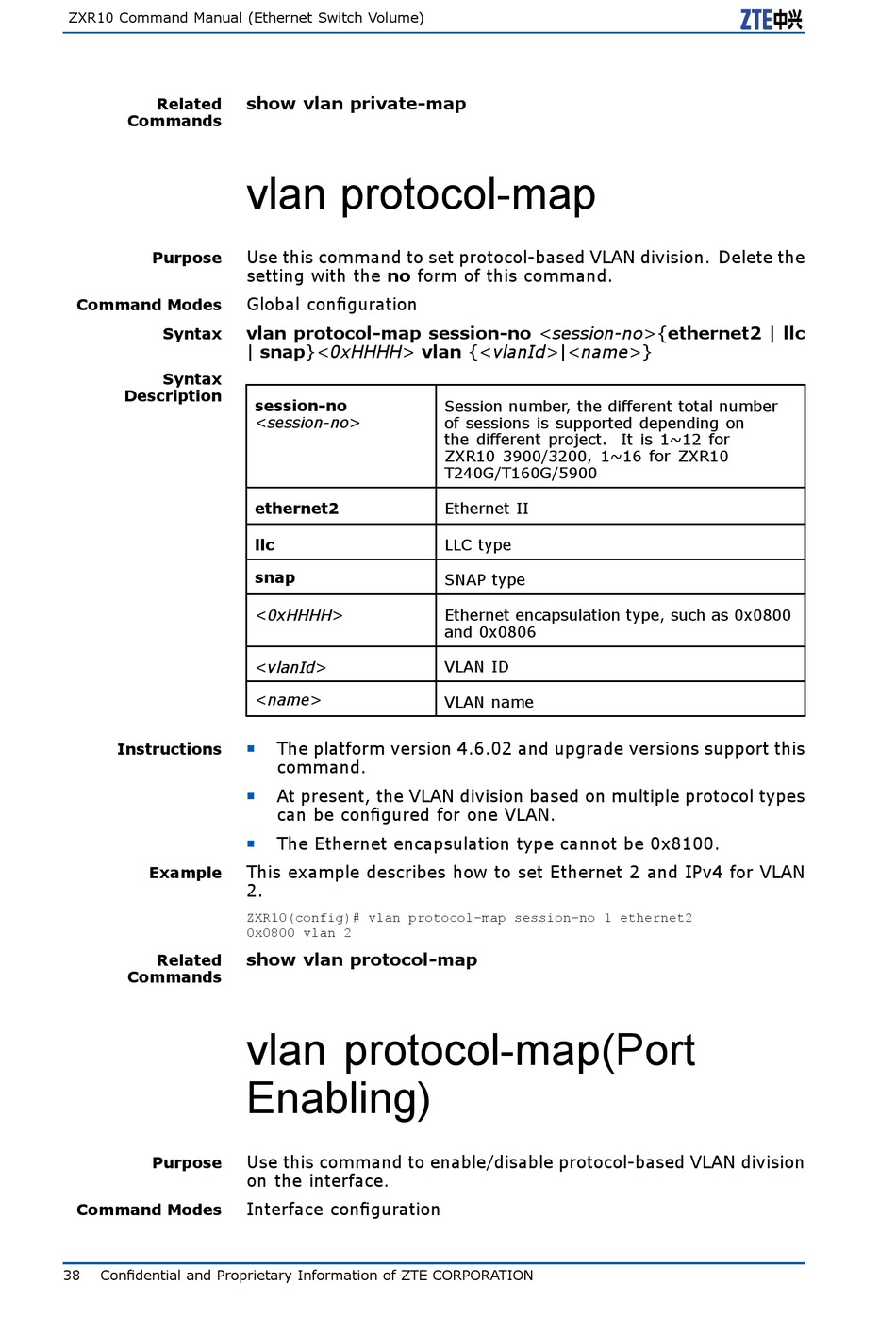

show vlan private-map

vlan protocol-map

Use this command to set protocol-based VLAN division. Delete the
setting with the no form of this command.
Global configuration
vlan protocol-map session-no <session-no>{ethernet2 | llc
| snap}<0xHHHH> vlan {<vlanId>|<name>}
session-no
<session-no>
ethernet2
llc
snap
<0xHHHH>
<vlanId>
<name>
� The platform version 4.6.02 and upgrade versions support this
command.
� At present, the VLAN division based on multiple protocol types
can be configured for one VLAN.
� The Ethernet encapsulation type cannot be 0x8100.
This example describes how to set Ethernet 2 and IPv4 for VLAN
2.
ZXR10(config)# vlan protocol-map session-no 1 ethernet2
0x0800 vlan 2
show vlan protocol-map
vlan protocol-map(Port
Enabling)
Use this command to enable/disable protocol-based VLAN division
on the interface.
Interface configuration
Session number, the different total number
of sessions is supported depending on
the different project. It is 1~12 for
ZXR10 3900/3200, 1~16 for ZXR10
T240G/T160G/5900
Ethernet II
LLC type
SNAP type
Ethernet encapsulation type, such as 0x0800
and 0x0806
VLAN ID
VLAN name
