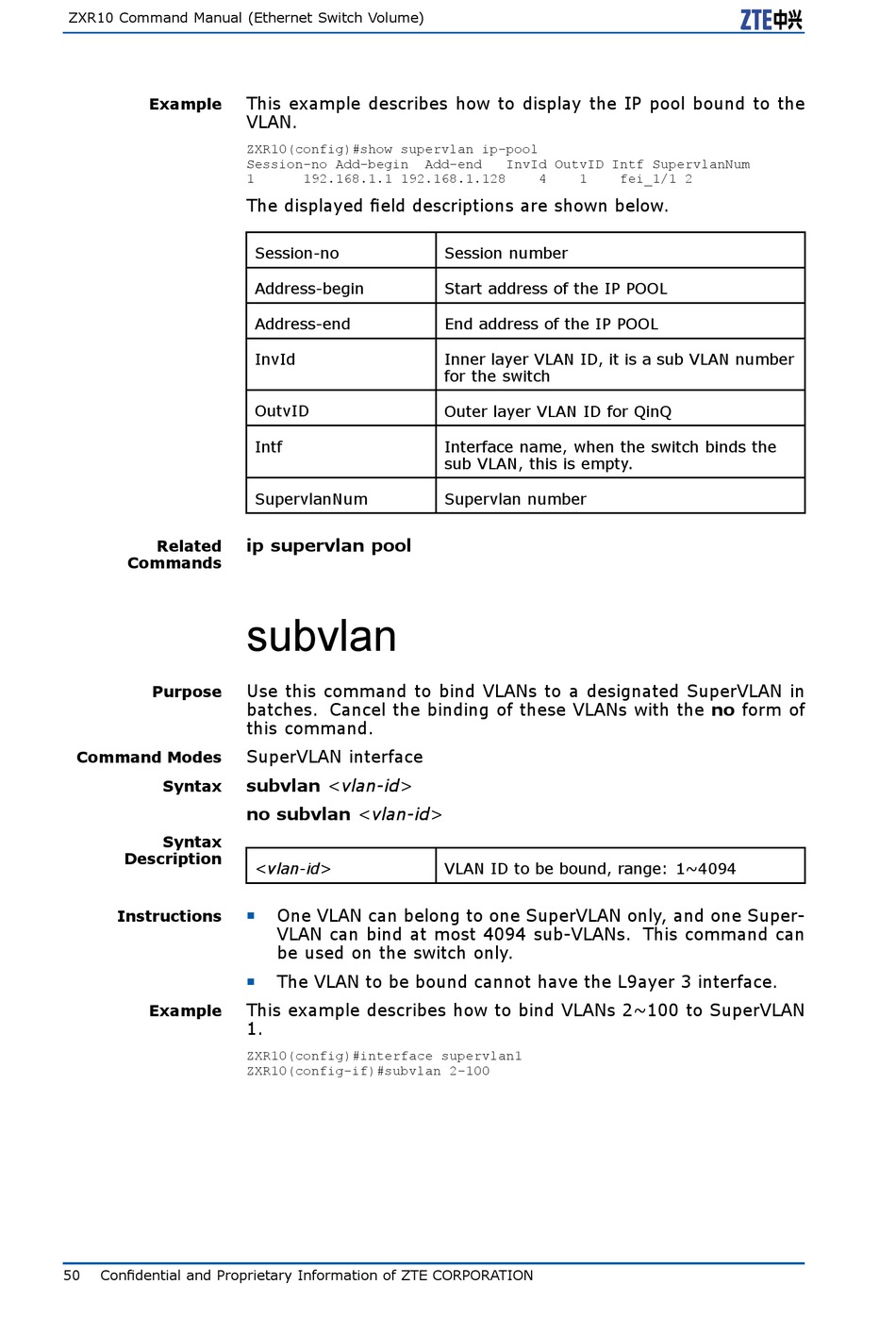

ZXR10 Command Manual (Ethernet Switch Volume)
Example
Related
Commands
Purpose
Command Modes
Syntax
Syntax
Description
Instructions
Example
50 Confidential and Proprietary Information of ZTE CORPORATION
This example describes how to display the IP pool bound to the
VLAN.
ZXR10(config)#show supervlan ip-pool
Session-no Add-begin
1 192.168.1.1 192.168.1.128
The displayed field descriptions are shown below.
Session-no
Address-begin
Address-end
InvId
OutvID
Intf
SupervlanNum
ip supervlan pool

subvlan

Use this command to bind VLANs to a designated SuperVLAN in
batches. Cancel the binding of these VLANs with the no form of
this command.
SuperVLAN interface
subvlan <vlan-id>
no subvlan <vlan-id>
<vlan-id>
� One VLAN can belong to one SuperVLAN only, and one Super-
VLAN can bind at most 4094 sub-VLANs. This command can
be used on the switch only.
� The VLAN to be bound cannot have the L9ayer 3 interface.
This example describes how to bind VLANs 2~100 to SuperVLAN
1.
ZXR10(config)#interface supervlan1
ZXR10(config-if)#subvlan 2-100
Add-end InvId OutvID Intf SupervlanNum
4 1
Session number
Start address of the IP POOL
End address of the IP POOL
Inner layer VLAN ID, it is a sub VLAN number
for the switch
Outer layer VLAN ID for QinQ
Interface name, when the switch binds the
sub VLAN, this is empty.
Supervlan number
VLAN ID to be bound, range: 1~4094
fei_1/1 2
