Vlan Subnet-Map - Zte ZXR10 Command Manual

Related
Commands
Purpose
Command Modes
Syntax
Syntax
Description
Instructions
Example
� This example describes how to create session 2, set the cus-
tomer port to gei_5/1, set the uplink port to gei_5/2, not attach
the external tag to packets from invlans 100~200 and transmit
them in single-tagged mode.
for 69 series:
ZXR10(config)# vlan qinq session-no 2 customerbrg-port gei_5/1
uplinkbrg-port gei_5/2 invlan 100-200 untag
for 39 series:
ZXR10(config)# vlan qinq session-no 2 customerbrg-port
gei_5/1 uplinkbrg-port gei_5/2 invlan 100-200 untag
show vlan qinq

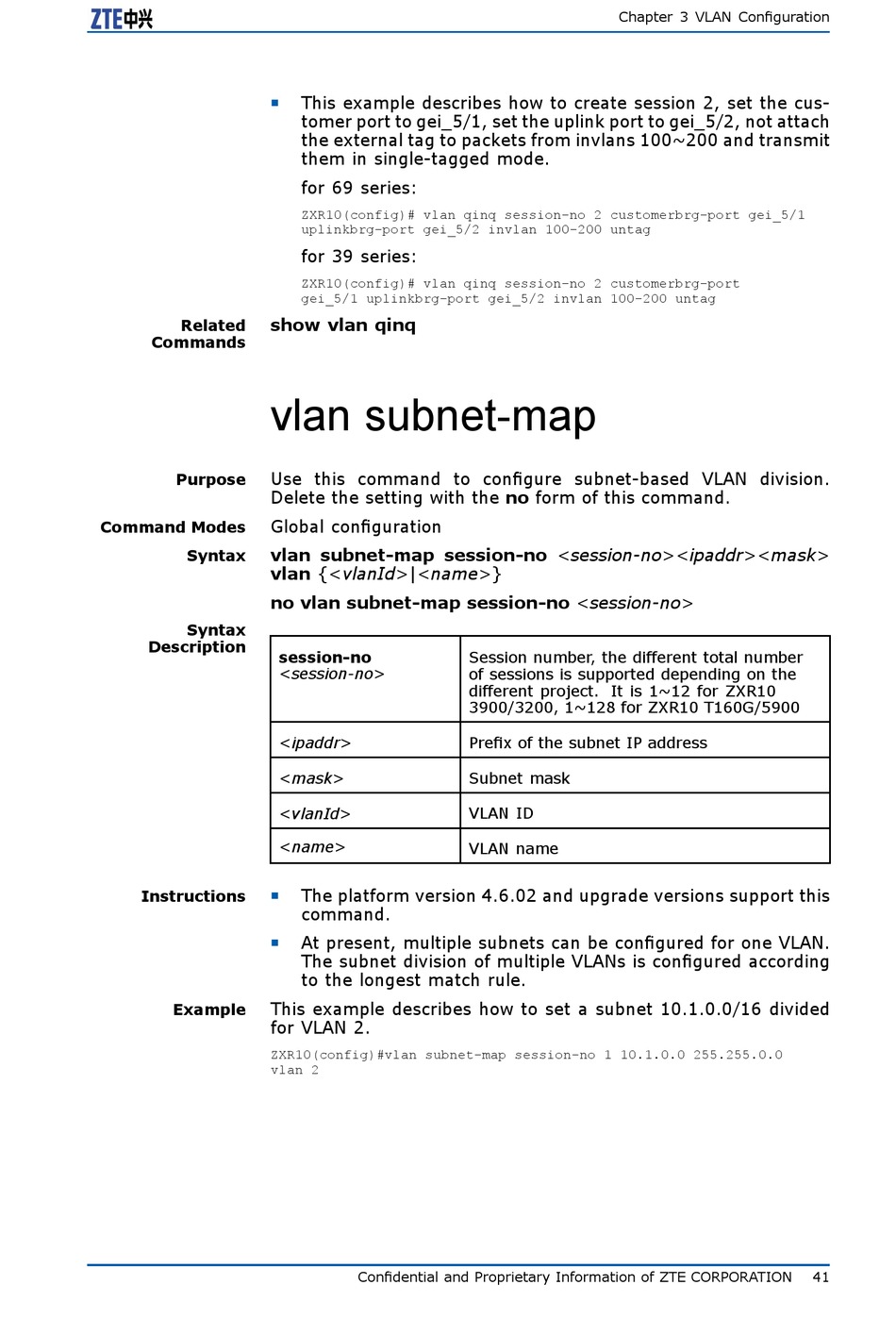

vlan subnet-map

Use this command to configure subnet-based VLAN division.
Delete the setting with the no form of this command.
Global configuration
vlan subnet-map session-no <session-no><ipaddr><mask>
vlan {<vlanId>|<name>}
no vlan subnet-map session-no <session-no>
session-no
<session-no>
<ipaddr>
<mask>
<vlanId>
<name>
� The platform version 4.6.02 and upgrade versions support this
command.
� At present, multiple subnets can be configured for one VLAN.
The subnet division of multiple VLANs is configured according
to the longest match rule.
This example describes how to set a subnet 10.1.0.0/16 divided
for VLAN 2.
ZXR10(config)#vlan subnet-map session-no 1 10.1.0.0 255.255.0.0
vlan 2
Confidential and Proprietary Information of ZTE CORPORATION
Chapter 3 VLAN Configuration
Session number, the different total number
of sessions is supported depending on the
different project. It is 1~12 for ZXR10
3900/3200, 1~128 for ZXR10 T160G/5900
Prefix of the subnet IP address
Subnet mask
VLAN ID
VLAN name
41
