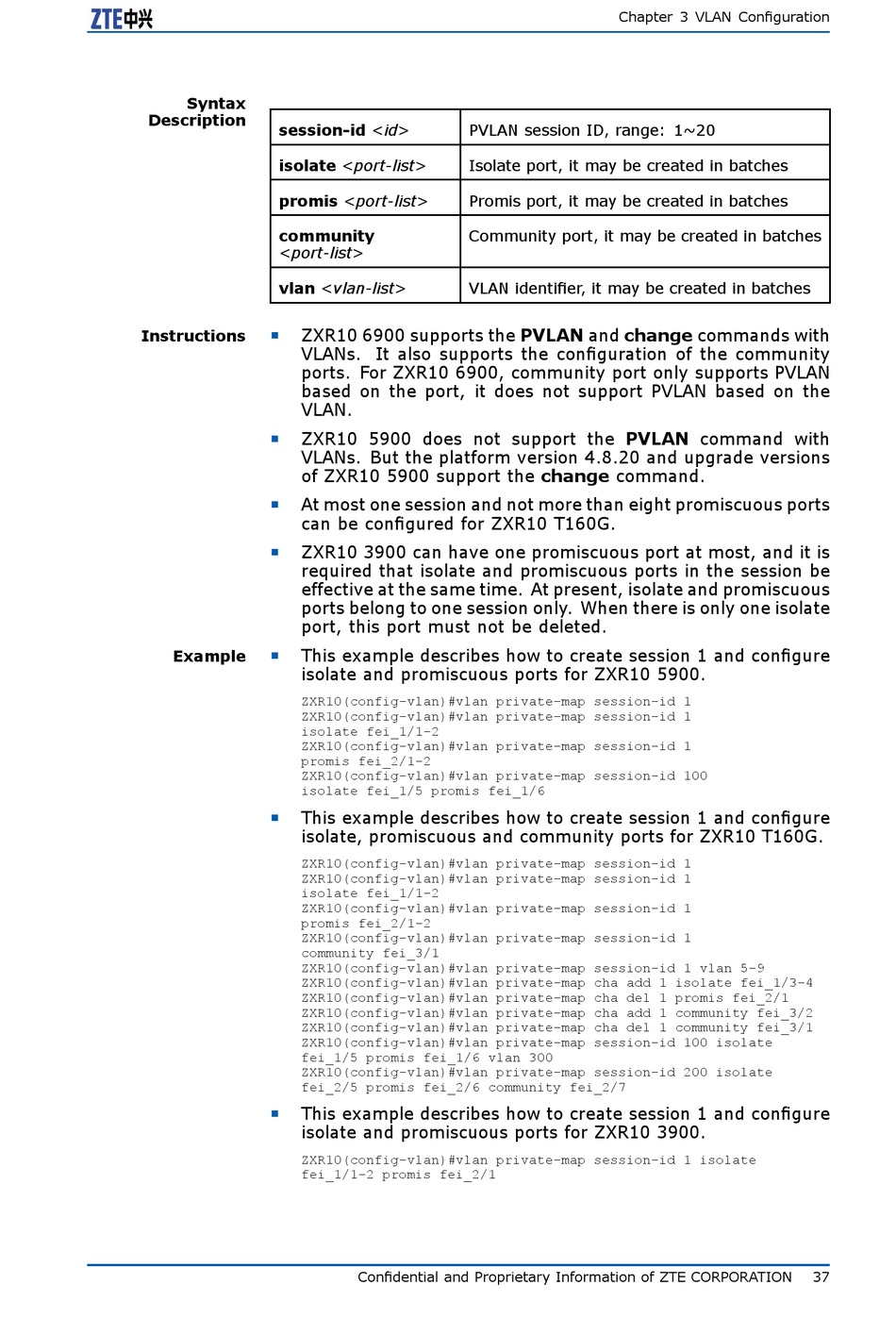

Zte ZXR10 Command Manual page 45

Syntax
Description
session-id <id>
isolate <port-list>
promis <port-list>
community
<port-list>
vlan <vlan-list>
� ZXR10 6900 supports the PVLAN and change commands with
Instructions
VLANs. It also supports the configuration of the community
ports. For ZXR10 6900, community port only supports PVLAN
based on the port, it does not support PVLAN based on the
VLAN.
�
ZXR10 5900 does not support the PVLAN command with
VLANs. But the platform version 4.8.20 and upgrade versions
of ZXR10 5900 support the change command.
� At most one session and not more than eight promiscuous ports
can be configured for ZXR10 T160G.
�
ZXR10 3900 can have one promiscuous port at most, and it is
required that isolate and promiscuous ports in the session be
effective at the same time. At present, isolate and promiscuous
ports belong to one session only. When there is only one isolate
port, this port must not be deleted.
� This example describes how to create session 1 and configure
Example
isolate and promiscuous ports for ZXR10 5900.
ZXR10(config-vlan)#vlan private-map session-id 1
ZXR10(config-vlan)#vlan private-map session-id 1
isolate fei_1/1-2
ZXR10(config-vlan)#vlan private-map session-id 1
promis fei_2/1-2
ZXR10(config-vlan)#vlan private-map session-id 100
isolate fei_1/5 promis fei_1/6
�
This example describes how to create session 1 and configure
isolate, promiscuous and community ports for ZXR10 T160G.
ZXR10(config-vlan)#vlan private-map session-id 1
ZXR10(config-vlan)#vlan private-map session-id 1
isolate fei_1/1-2
ZXR10(config-vlan)#vlan private-map session-id 1
promis fei_2/1-2
ZXR10(config-vlan)#vlan private-map session-id 1
community fei_3/1
ZXR10(config-vlan)#vlan private-map session-id 1 vlan 5-9
ZXR10(config-vlan)#vlan private-map cha add 1 isolate fei_1/3-4
ZXR10(config-vlan)#vlan private-map cha del 1 promis fei_2/1
ZXR10(config-vlan)#vlan private-map cha add 1 community fei_3/2
ZXR10(config-vlan)#vlan private-map cha del 1 community fei_3/1
ZXR10(config-vlan)#vlan private-map session-id 100 isolate
fei_1/5 promis fei_1/6 vlan 300
ZXR10(config-vlan)#vlan private-map session-id 200 isolate
fei_2/5 promis fei_2/6 community fei_2/7
� This example describes how to create session 1 and configure
isolate and promiscuous ports for ZXR10 3900.
ZXR10(config-vlan)#vlan private-map session-id 1 isolate
fei_1/1-2 promis fei_2/1
PVLAN session ID, range: 1~20
Isolate port, it may be created in batches
Promis port, it may be created in batches
Community port, it may be created in batches
VLAN identifier, it may be created in batches
