Suzuki kq750 Service Manual page 618

Drive Chain / Drive Train / Drive Shaft
Driveline / Axle

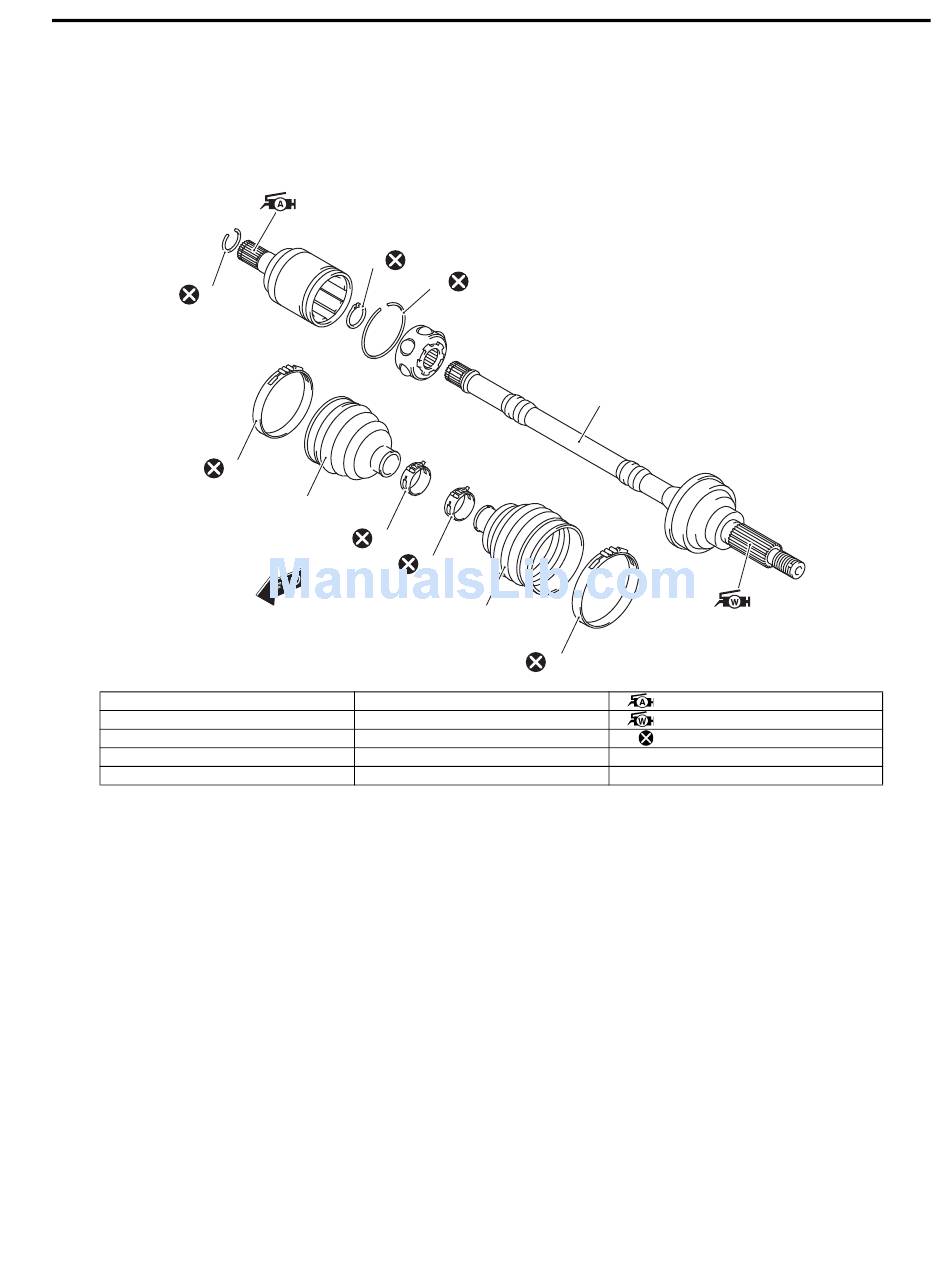

Front Drive Shaft Components (LT-A750XP/ZK9)
1
4
1. Circlip
2. Snap ring
3. Stopper ring
4. Inner boot band (Large)
5. Inner boot
Repair Instructions
2
3
5
6
8
9
6. Inner boot band (Small)
7. Drive shaft
8. Outer boot band (Small)
9. Outer boot
10. Outer boot band (Large)
Drive Chain / Drive Train / Drive Shaft:
7
10
: Apply grease.
: Apply water resistance grease.
: Do not reuse.
3A-1
B931G43106009
I931H1310012-03
