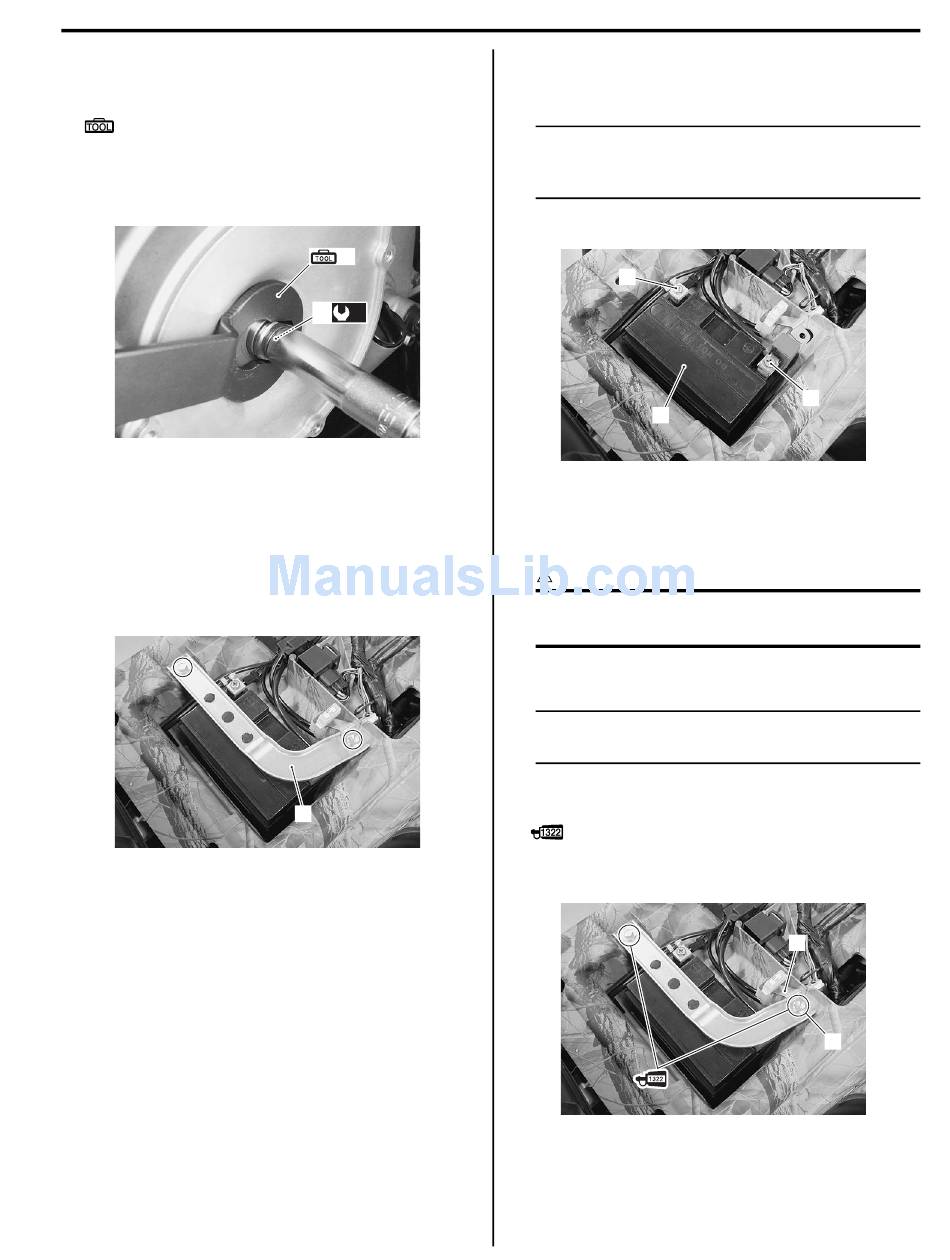

• Tighten the crankshaft spacer nut (2) to the specified
torque with the special tool.
Special tool
(A): 09930–44530 (Rotor holder)
Tightening torque
Left crankshaft spacer nut (a): 38 N·m (3.8 kgf-m,
27.5 lbf-ft)
Battery Removal and Installation (LT-A750XP/
ZK9)
Removal
1) Remove the seat. Refer to "Seat Removal and
Installation in Section 9D in related manual".
2) Remove the battery stay (1).
(A)
2
(a)
I931G31A0004-01
B931G41A06011
1
I931G31A0005-01
3) Disconnect the battery (–) lead wire (2).
4) Disconnect the battery (+) lead wire (3).
NOTE
Be sure to disconnect the battery (–) lead
wire (2) first, then disconnect the battery (+)
lead wire (3).
5) Remove the battery (4).
2
4
Installation
Install the battery in the reverse order of removal.
Pay attention to following point:
CAUTION
!
Never use anything except the specified
battery.
• Tighten the battery mounting bolts securely.
NOTE
Fit the EPS fuse bracket (2) to the mounting
bolt (1).
• Apply thread lock to the battery stay mounting bolts
and tighten them securely.
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER "1322" or
equivalent)
Charging System: 1J-2
3
I931G31A0006-01
2
1
I931G31A0007-02
