Secondly, connect the fiber to the SFP module. Also terminate and connect the DC
wires to the MOLEX connector.
Finally, re-seat the silicone seal into the Apex unit and screw the Fiber plate back to the
unit as shown in Figure 29.
Figure 29: Complete Fiber Plate Installation (conduit not pictured)
IT IS IMPORTANT THAT THE SILICONE SEAL IS PROPERLY INSTALLED TO PREVENT
!
MOISTURE INTRUSION. TRANGO ALSO INSISTS THAT THE FIBER PLATE BE
CONNECTED TO PROPERLY INSTALLED CONDUIT TO ENSURE NO MOISTURE
PENETRATION INTO THE APEX UNIT.
TrangoLINK Apex™ 18 User Manual Rev. 1.0

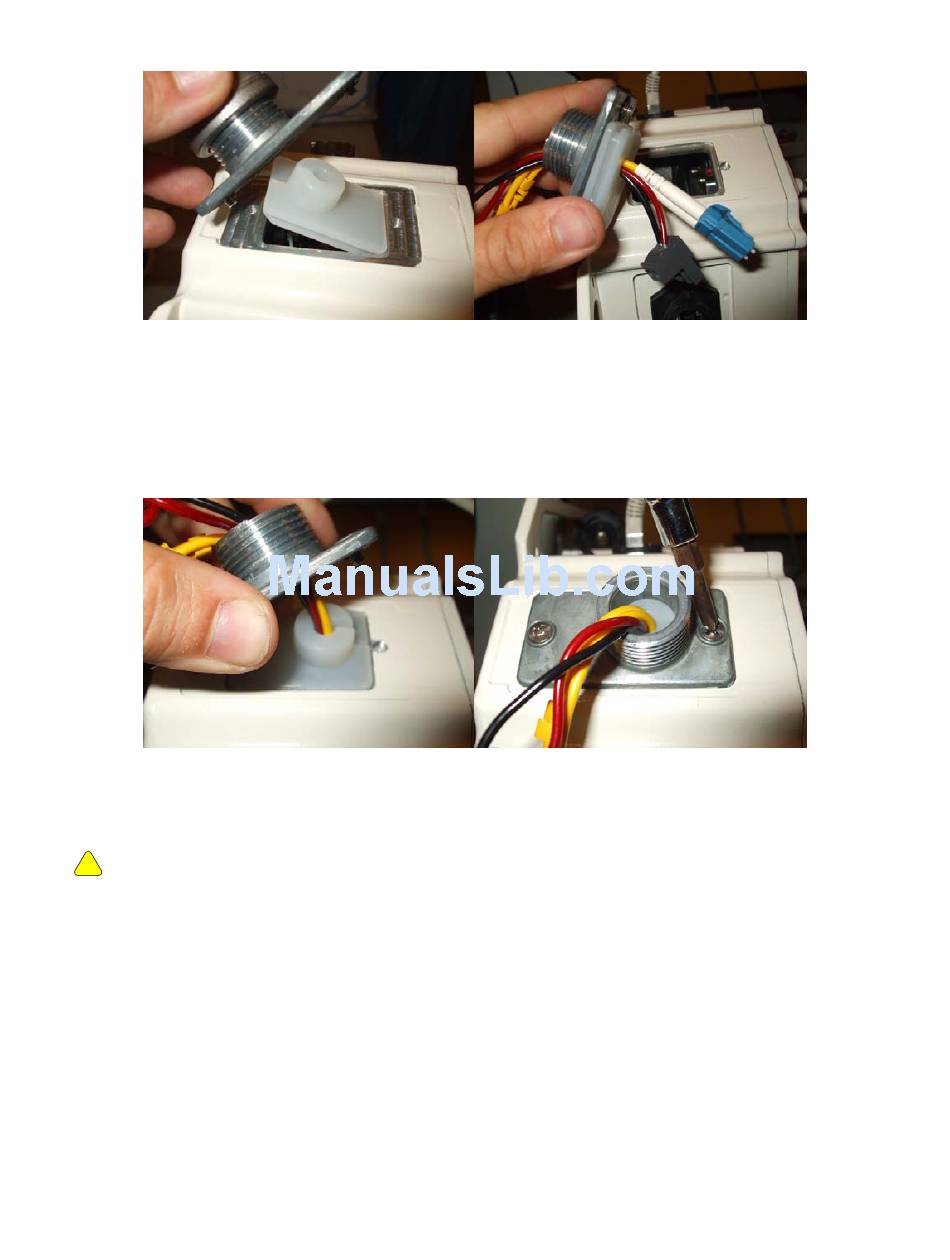

Figure 28: Fiber Plate Installation
