Connections and Power

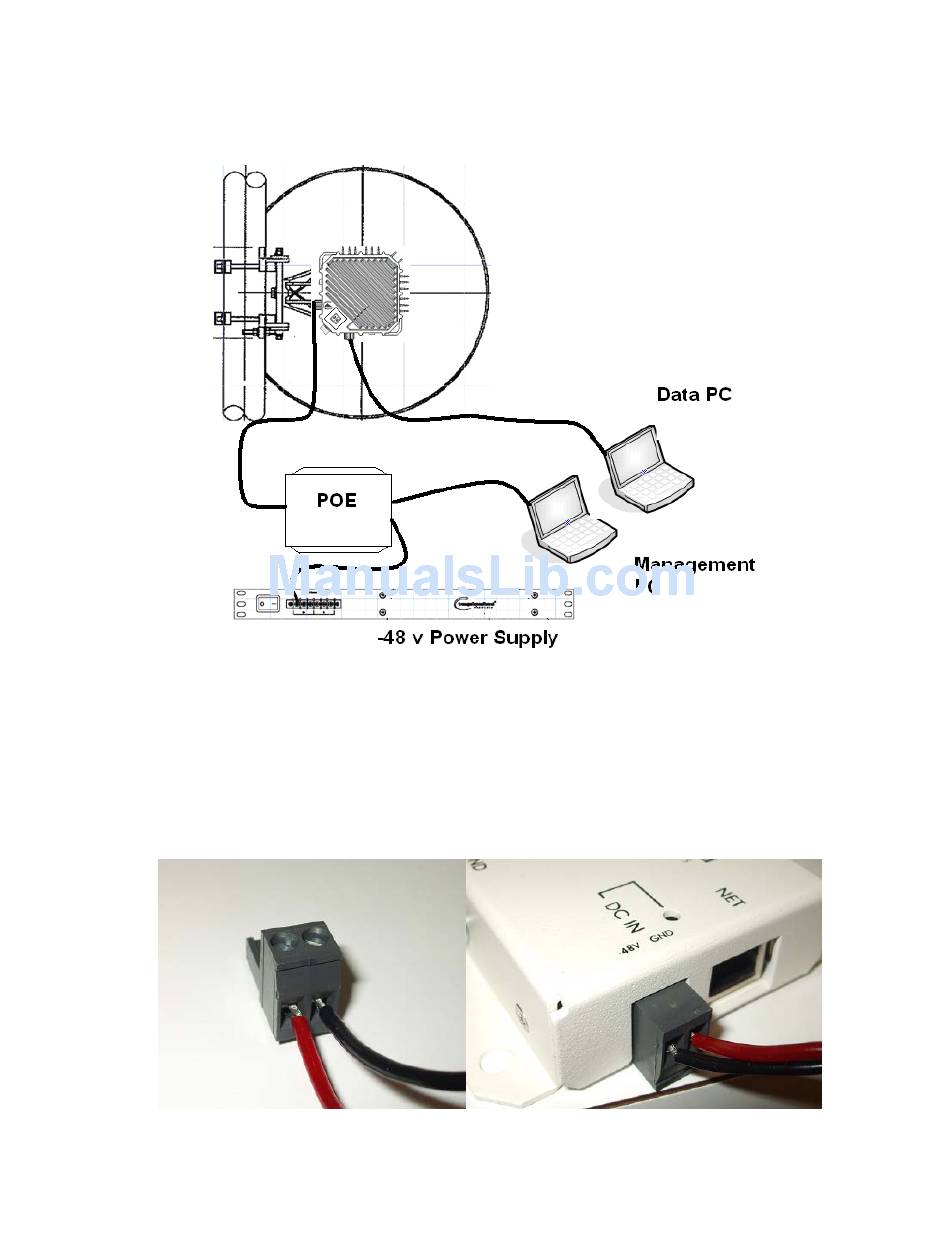

Figure 4: Wiring Diagram

• Connect Ethernet cable between the Apex unit and the POE unit. (Power over
Ethernet can be through either the data or management ports.) Alternately, there
is a 2 pin MOLEX™ connector under the fiber cover for direct -48 DC power.
Please note that when the pins are facing up, the + (Red/Ground) is on the left.

Figure 5: Power Connections

TrangoLINK Apex™ 18 User Manual Rev. 1.0 Section: Chapter 2 - Getting Started Page 15
