Installation

Mounting Hardware

®
The TrangoLINK Apex has a unique slip-mount adapter design which allows for the
waveguide output to be coupled into antenna input with a minimum of loss and ease of
installation. The Apex unit is secured to the antenna assembly using 4 easy, slip-mount
latches. Please refer to the antenna installation instructions for proper installation of the
antenna. The unit can be secured to the tower/pole with high strength cable strung
through the clasp hole to discourage theft. Trango recommends using combination
locks so that maintenance is not frustrated by lost keys.
PLEASE REFER TO THE ANTENNA INSTALLATION INSTRUCTIONS FOR PROPER
!
INSTALLATION OF THE ANTENNA.
18 - 22 AWG TYPE WIRE IS RECOMMEND FROM THE POWER SUPPLY TO THE APEX
!
UNIT.
TrangoLINK Apex™ 18 User Manual Rev. 1.0
Screw or Nut Size
4-40
6-32
8-32
10-32
¼-20

Table 6: Torque

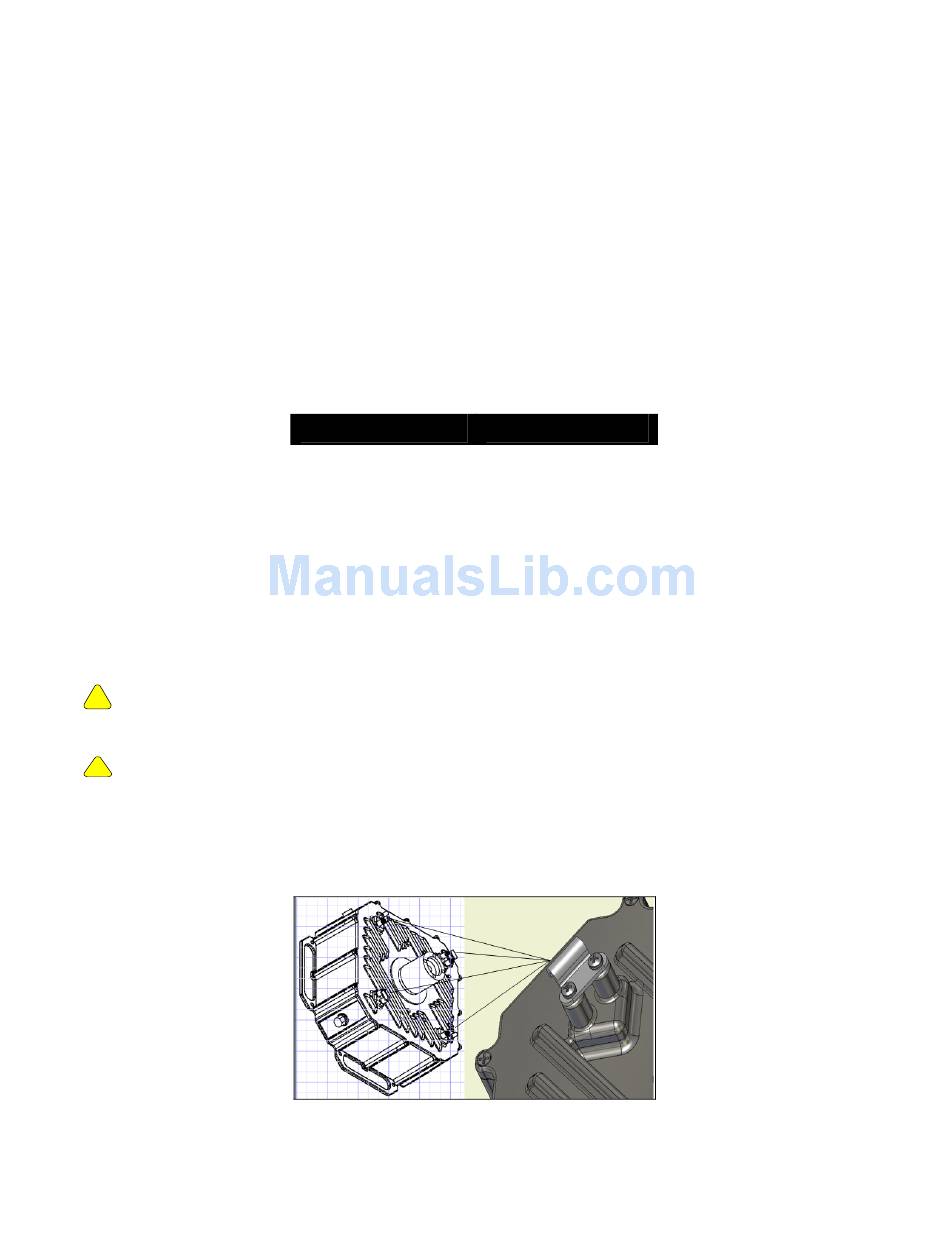

Figure 13: Apex Mounting Assembly

Section: Chapter 4 - Deployment & Installation
Torque (in-lbs)
6
12
22
37
65
