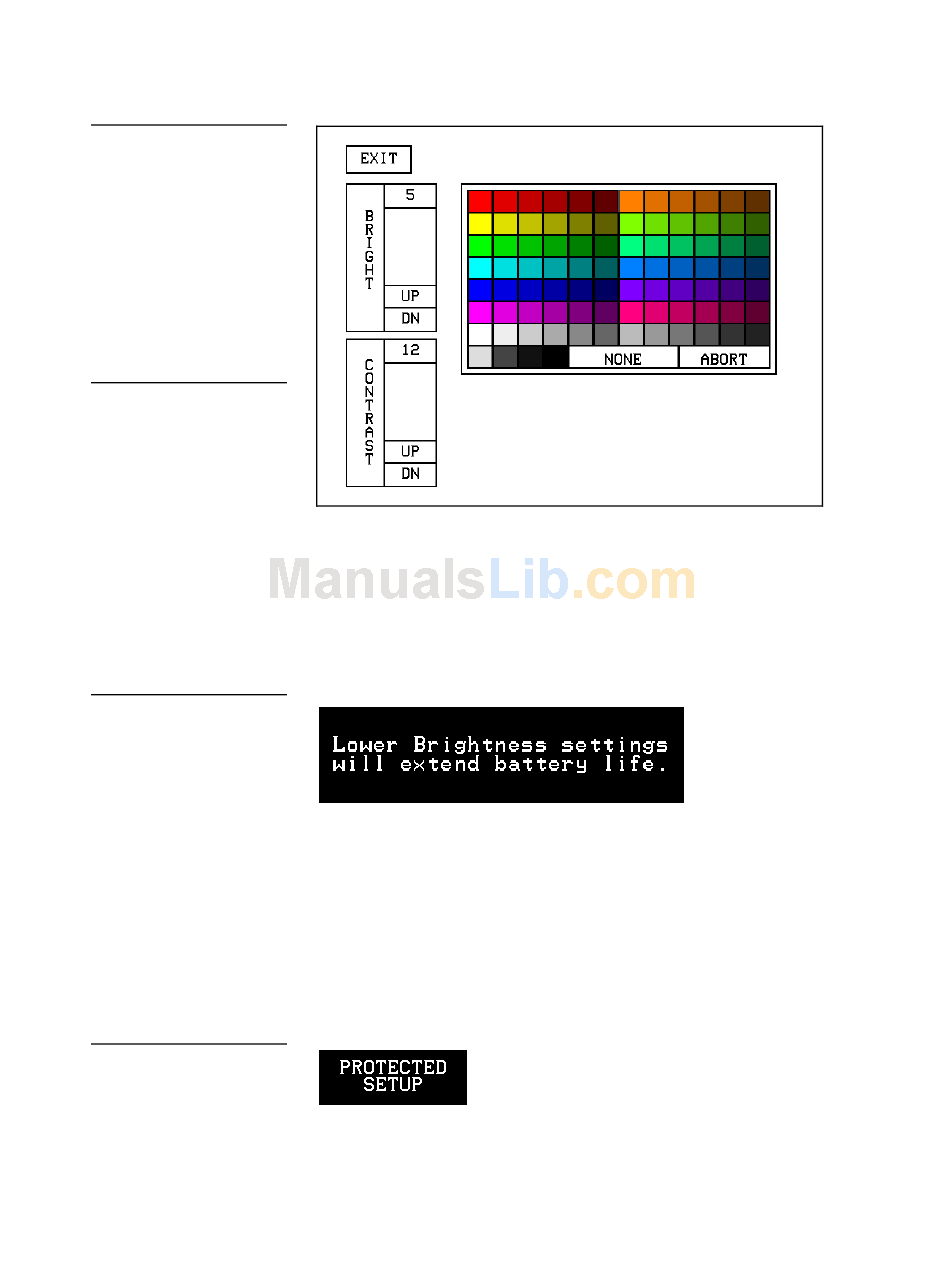

Figure 86
SET BRIGHTNESS page
Note
A lower brightness settings
information button appears in
the lower right-hand of the
screen when the brightness
setting exceeds 5
Figure 87
Lower brightness information
message
Figure 88
PROTECTED SETUP button
(highlighted)
ViewPoint Wireless Touch Panels
Press the UP and DN buttons to set the LCD brightness and contrast on the touch
panel. The maximum brightness level is 5 and the maximum contrast level is 12. The
TRANSPARENT and ABORT buttons are disabled for this page. When an optional
WavePack/SmartPack is attached to the panel, a lower brightness message
(Figure 87) will appear to suggest brightness settings for longer battery life.

Protected setup

The PROTECTED SETUP button opens the Protected Setup page where you set touch
panel passwords, mouse control, communications parameters, etc. The PROTECTED
SETUP button is highlighted when enabled, as shown in Figure 88. Because there are
many operations associated with Protected Setup page, they are described in the
Error! Reference source not found. subsection.
