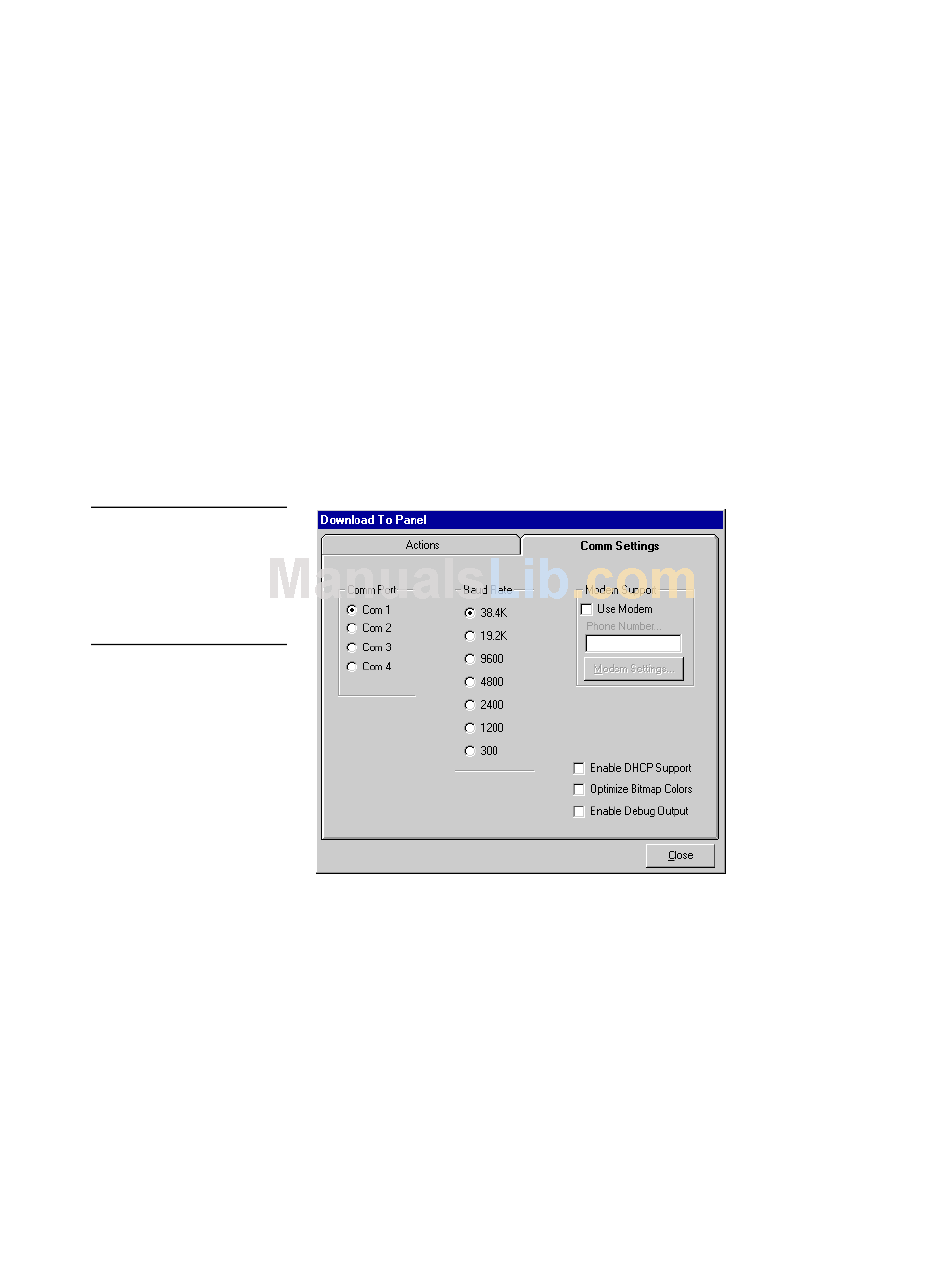

Figure 47
Download to Panel dialog
box: Comm Settings tab
Note
The Comm Settings tab is the
first tab in the Download To
Panel dialog that opens.
ViewPoint Wireless Touch Panels
Using TPDesign3 to Download Bitmaps, Icons, and Fonts
TPDesign3 allows you to import bitmaps, icons and fonts into your touch panel from
an existing touch panel program. Use the Download to Panel command to download
a project file.
To download bitmaps, icons and/or fonts from an existing TPDesign3 project file:
1.
Launch the TPDesign3 software program and open a project file that contains the
desired bitmaps, icons, and fonts.
2.
Select File from the menu bar to open the File menu.
3.
In the File menu, click on Download to Panel. This opens the Download to Panel-
Comm Settings tab shown in Figure 47. Use this tab to set the communications
port, baud rate, and other communication settings.
4.
Use the Actions tab (Figure 48) to set the communication mode with the touch
panel and to select which elements of the project file you want to download to
the touch panel.
Designing Touch Panel Pages
37
