Note
The channel code for non-
active buttons is 0 and for
active buttons is 1 through
255.

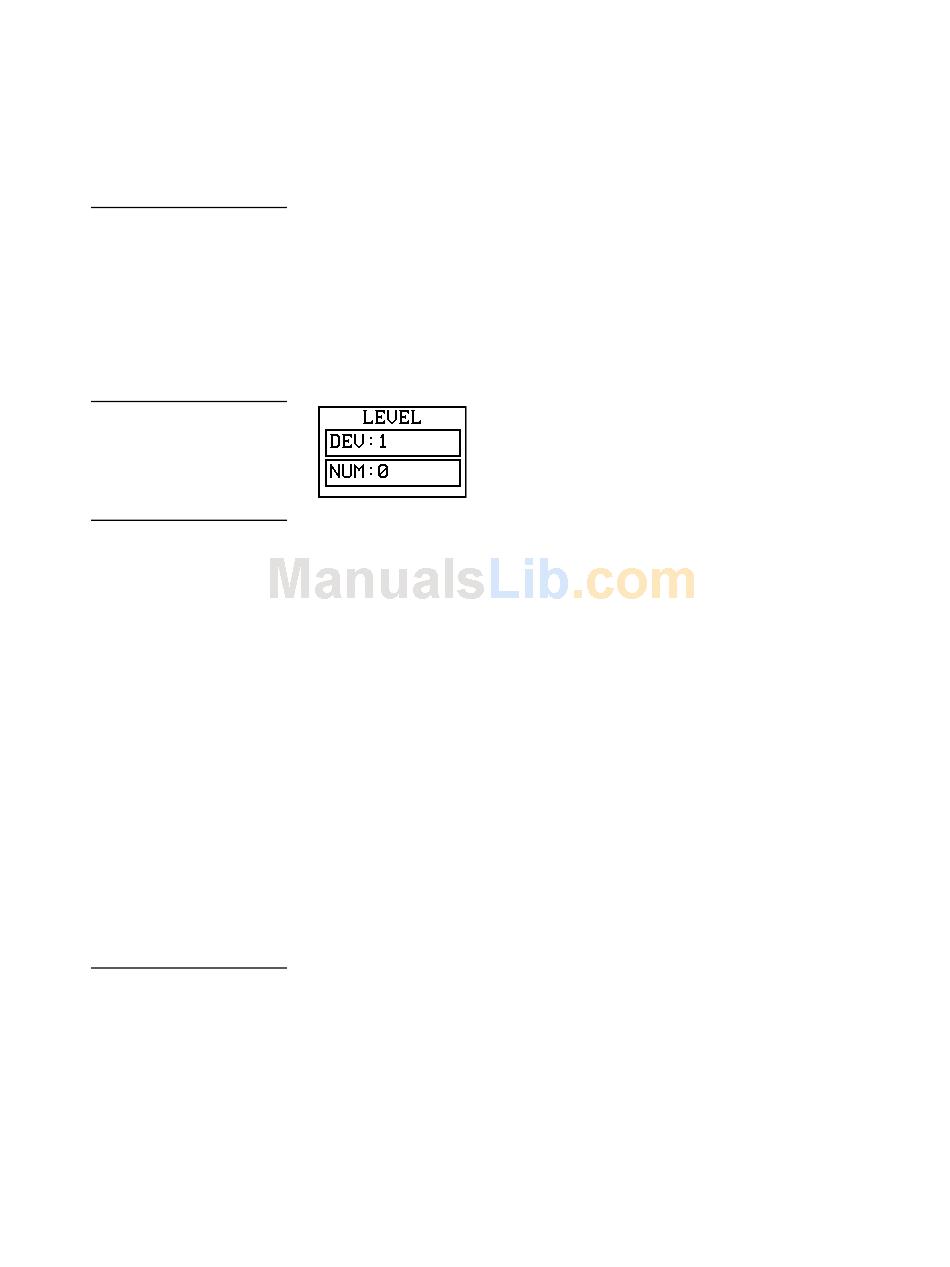

Figure 67
LEVEL code buttons
Note
The panel will not allow you to
enter a device number greater
than the DEVICE USED
without first displaying a
decision box. This box asks
you to decide whether you
accept the new selection or
default to the previous value.
Note
Bargraphs will function on
VPW-CP/VPW-GS only.
ViewPoint Wireless Touch Panels
Press CHAN to open a keypad and enter a channel value of 1 through 255 in the
4.
keypad. The AXCESS software program uses the channel code number to
identify the button and its' operations
5. Press ENTER to store the channel number into memory, close the keypad, and
return to the Button Properties page.

Setting the level code

The level buttons that set the device and number codes for the touch panels are
shown in Figure 67.
Press DEV to open a keypad and set the device number.
1.
2. Enter 1, 2, 3, or 4 in the keypad. The AXCESS software program uses device
codes 1 through 4 to identify the touch panel. Refer to the Touch Panel Program
Reference in this manual for detailed information.
Press ENTER to store the level device number into memory, close the keypad,
3.
and return to the Button Properties page.
4. Press NUM to open a keypad and set the level number assigned to the device.
5. Enter 1 in the keypad.
6. Press ENTER to store the level number into memory, close the keypad, and
return to the Button Properties page.
7. Press EXIT SAVE CHANGE, then EXIT to return to the New page with the EDIT
button.

Setting the bargraph colors/shades for channel-off conditions

1. Press the target button to open the Button Properties page.
2. Press BORDER in the CHANNEL OFF COLOR section of the Button Properties
page (Figure 60).
Designing Touch Panel Pages 51
