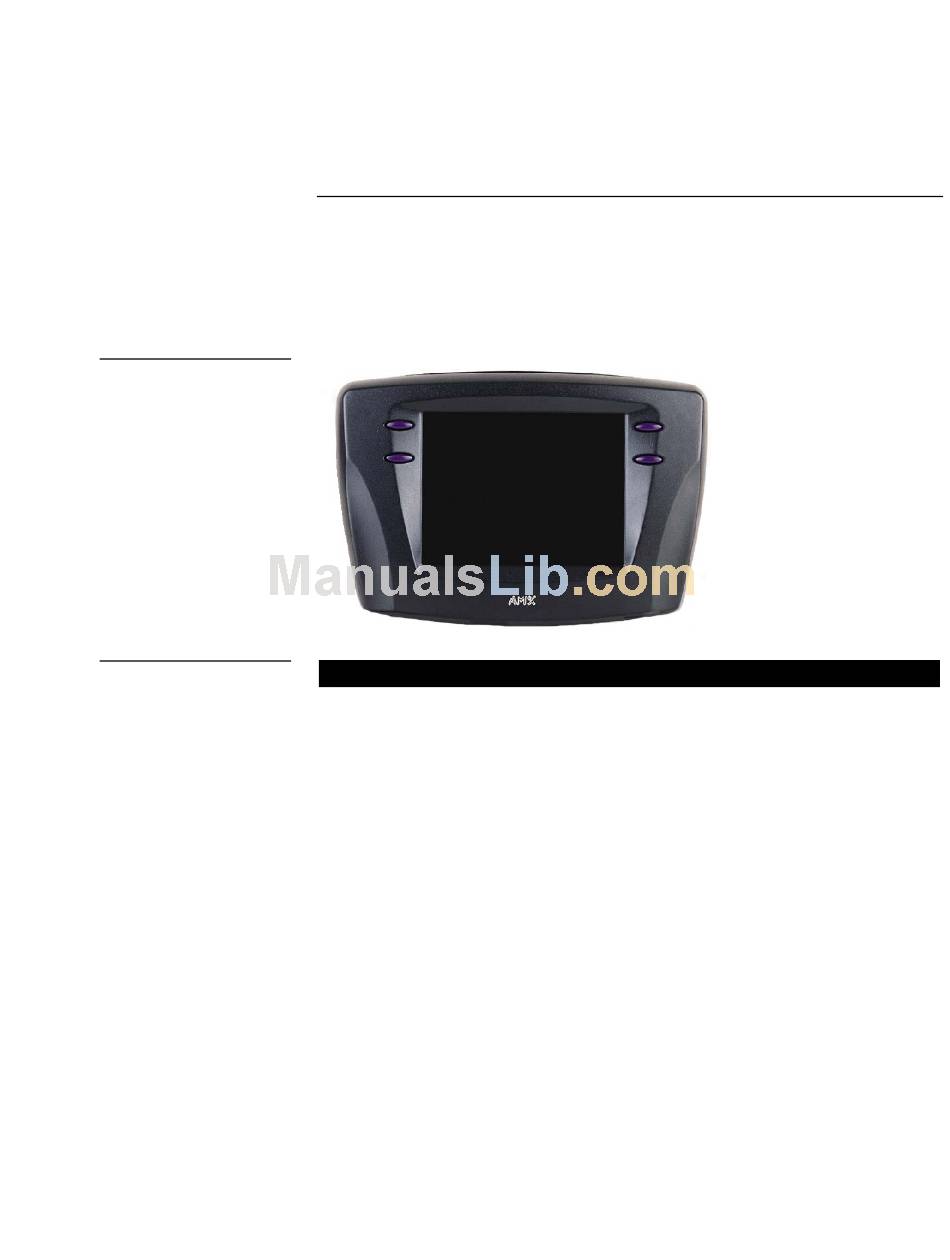

Figure 227
ViewPoint Wireless touch
panel
Figure 228
ViewPoint specifications
ViewPoint Wireless Touch Panels
Specifications
Overview
Figure 227 shows a ViewPoint touch panel and Figure 228 lists the specifications for
the ViewPoint models.
ViewPoint specifications
Weight:
VPT-CP/VPT-GS
VPW-CP/VPW-GS
Dimensions (HWD)
Operating temperature
Operating humidity
Operating Frequency:
RF (VPT-CP/VPT-GS)
RF (VPW-CP/VPW-GS)
IR (VPT-CP/VPT-GS)
IR (VPW-CP/VPW-GS)
Enclosure
Power:
VPA-BP
Power supply
1.8 lbs (0.8 kg) with battery, 1.6 lbs (0.7 kg) without battery
1.9 lbs (0.9 kg) with battery, 1.7 lbs (0.8 kg) without battery
5.99" x 8.75" x 2.78" (153.6 mm x 224.4 mm x 71.3 mm)
+50 ° F to +95 ° F (+10.0 ° C to +35.0 ° C)
5% to 95% non-condensing
418 MHz standard (other frequencies available upon request)
2.4 GHz two-way digital spread spectrum
38 KHz or 455 KHz
38 KHz or 455 KHz
High impact molded, matte black crinkle finish
7.2 VDC NMH (nickel metal hydride) rechargeable battery
12 VDC @ 1500 mA
Specifications
173
