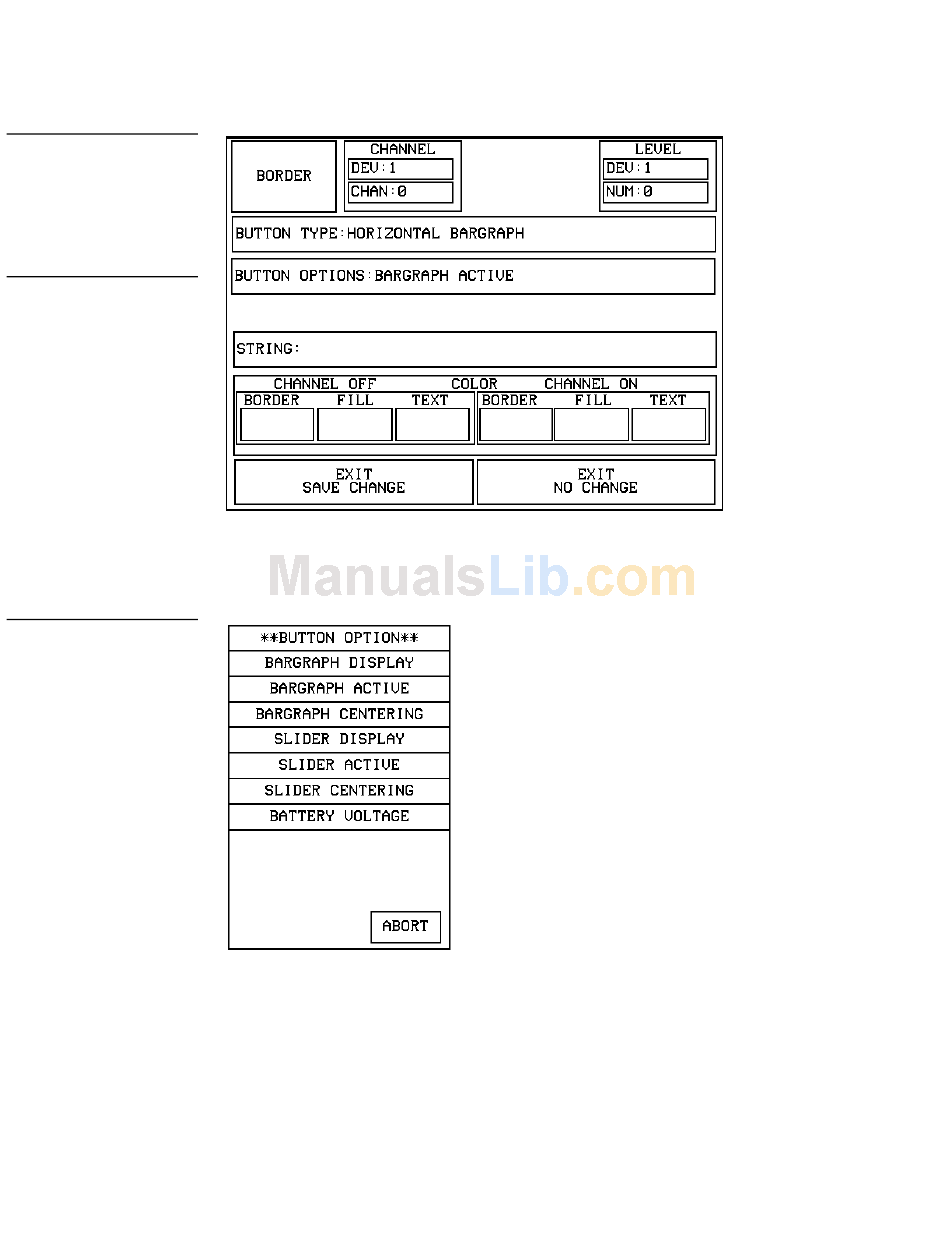

Figure 164
Button Properties page for a
Horizontal Bargraph button
Note
One-way ViewPoints do not
support bargraphs, sliders,
joysticks, VGA, video, variable
text, or variable text.
Figure 165
BUTTON OPTION menu
108
Touch Panel Program Reference
•
BUTTON OPTIONS
where you set the button type. Press ABORT to close the menu.
— BARGRAPH DISPLAY
external devices. Indicator levels must be defined in the AXCESS software
program.
— BARGRAPH ACTIVE
devices. Indicator levels must be defined in the AXCESS software program.
Opens the BUTTON OPTION menu (Figure 165)
Sets the bargraph as a vertical indicator for
Sets the bargraph as a vertical controller for external
ViewPoint Wireless Touch Panels
