Note
Refer to the Wireless status
(optional WAV-PK) subsection
for information on how to set
the RF and IR.

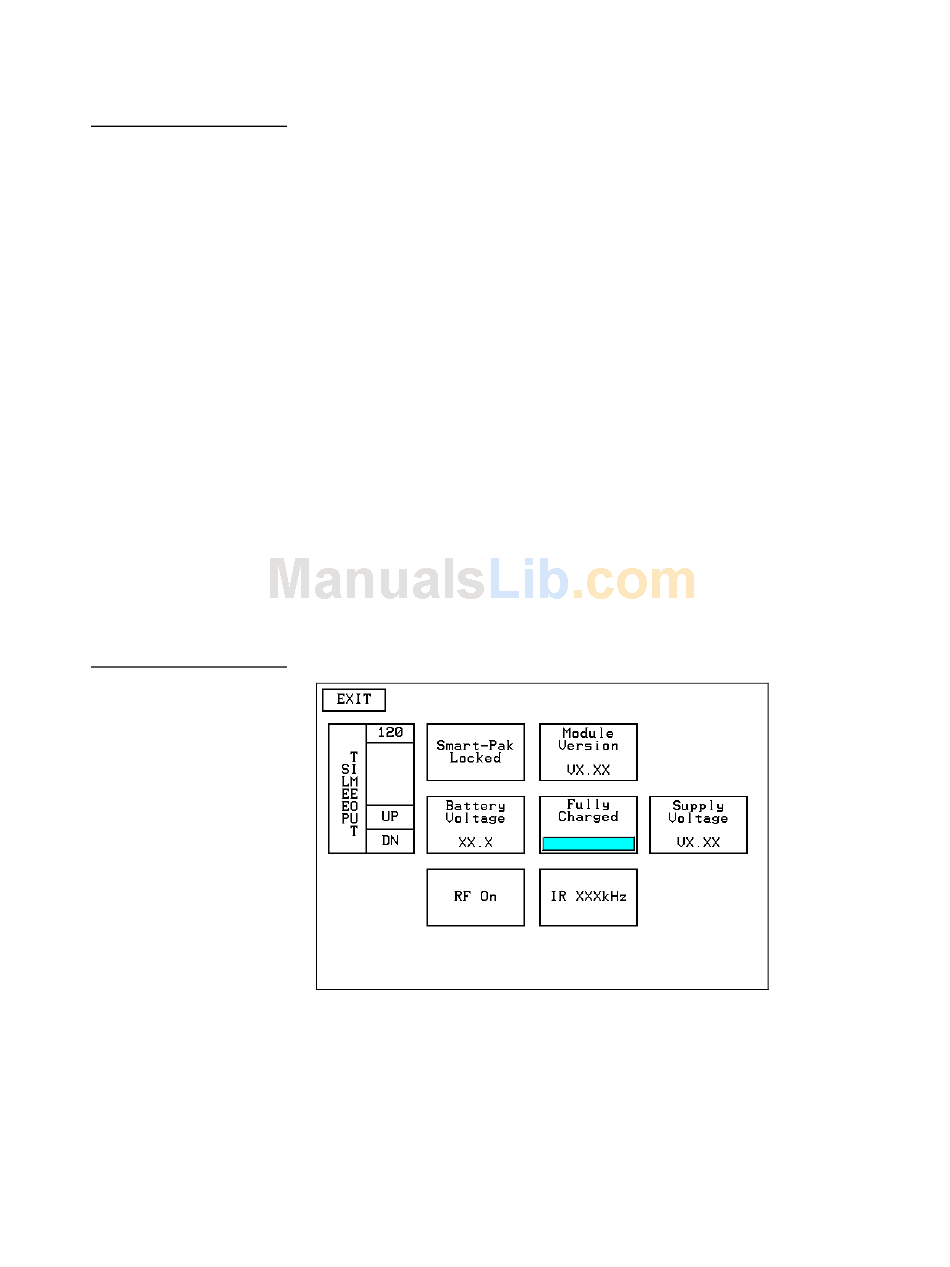

Figure 91
WIRELESS SETTINGS page
(VPT-CP and VPT-GS)
ViewPoint Wireless Touch Panels
•
Module Version vX.XX
SMT-PK.
•
Fully Charged/Not Charging/Charging
the battery in the SMT-PK is fully charged. Not Charging appears when the
lead-acid battery is not charging. Charging appears when the lead-acid
battery is charging. The shaded area is a horizontal gauge moving from left
to right as the battery voltage level increases.
•
AMX RF ON/OFF
•
Supply Voltage vX.XX
supply (optional) connected to the SMT-PK.
•
AMX IR 38 kHz/455 kHz/OFF
38 kHz, 455 kHz, or OFF.
Wireless settings for VPT-CP and VPT-GS
The WIRELESS SETTINGS button appears on the Setup page. The VPT-CP and VPT-
GS provide one-way touch panel control, and transmits RF and high or low-
frequency IR signals. The ViewPoint contains a Nickel Metal Hydride rechargeable
battery that supplies independent power to the touch panel. Press the WIRELESS
SETTINGS button to open the page shown in Figure 91.
•
SLEEP TIMEOUT
minimum sleep time is 0 (off) and maximum is 120 minutes. When the touch
panel goes to sleep, all communication and battery discharge stops. If the
sleep time is set to 5, the panel goes into sleep mode if there is no activity for
Shows the firmware version installed in the
Shows RF transmission on or off.
Shows the voltage level of the external power
Shows the IR transmitting frequency to
Press the UP and DN buttons to set the sleep time. The
Touch Panel Program Reference
Fully Charged appears when
67
