Axcess Programming; Overview; Pc To Viewpoint Connections - AMX Wireless Touch Panels (Wave Server) Instruction Manual

Note
There are no programming
differences between the VPT-
CP and VPT-GS.
Figure 199
Connecting the ViewPoint to
your PC
ViewPoint Wireless Touch Panels

AXCESS Programming

Overview

This section outlines how to connect your PC to the ViewPoint for programming the
ViewPoint. Also, programming commands for the new AMX G3 software is
included.

PC to ViewPoint Connections

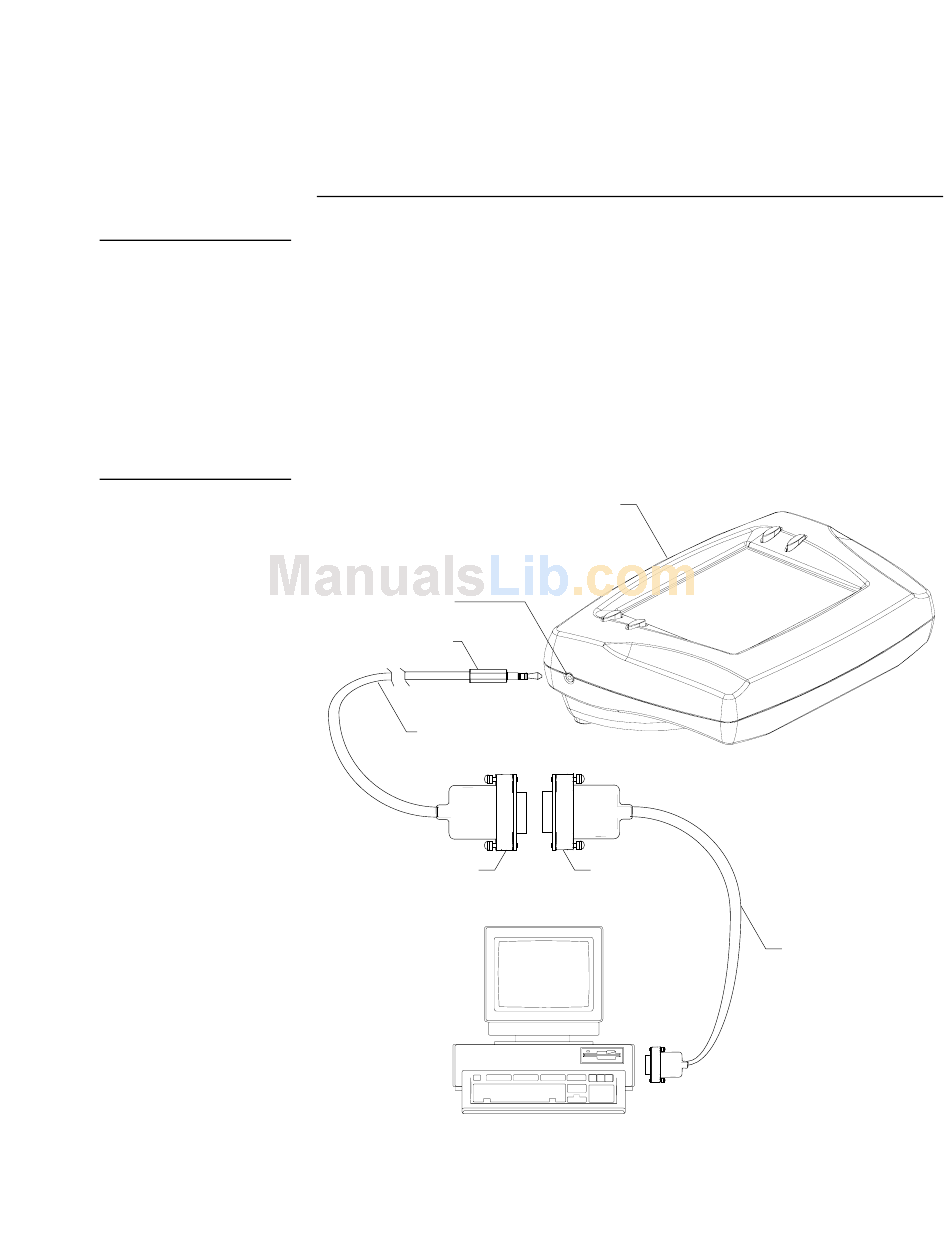

Figure 199 shows the connections required for connecting the ViewPoint to your PC.
VPT-CP or VPT-GS
ViewPoint Wireless
Touch Panel
Programming jack
Stereo plug (male)
ViewPoint
Programming
Cable
DB-9 (male)
connector
DB-9 (female)
connector
PC
CC-COM AXCESS
Programming Cable
AXCESS Programming 133
