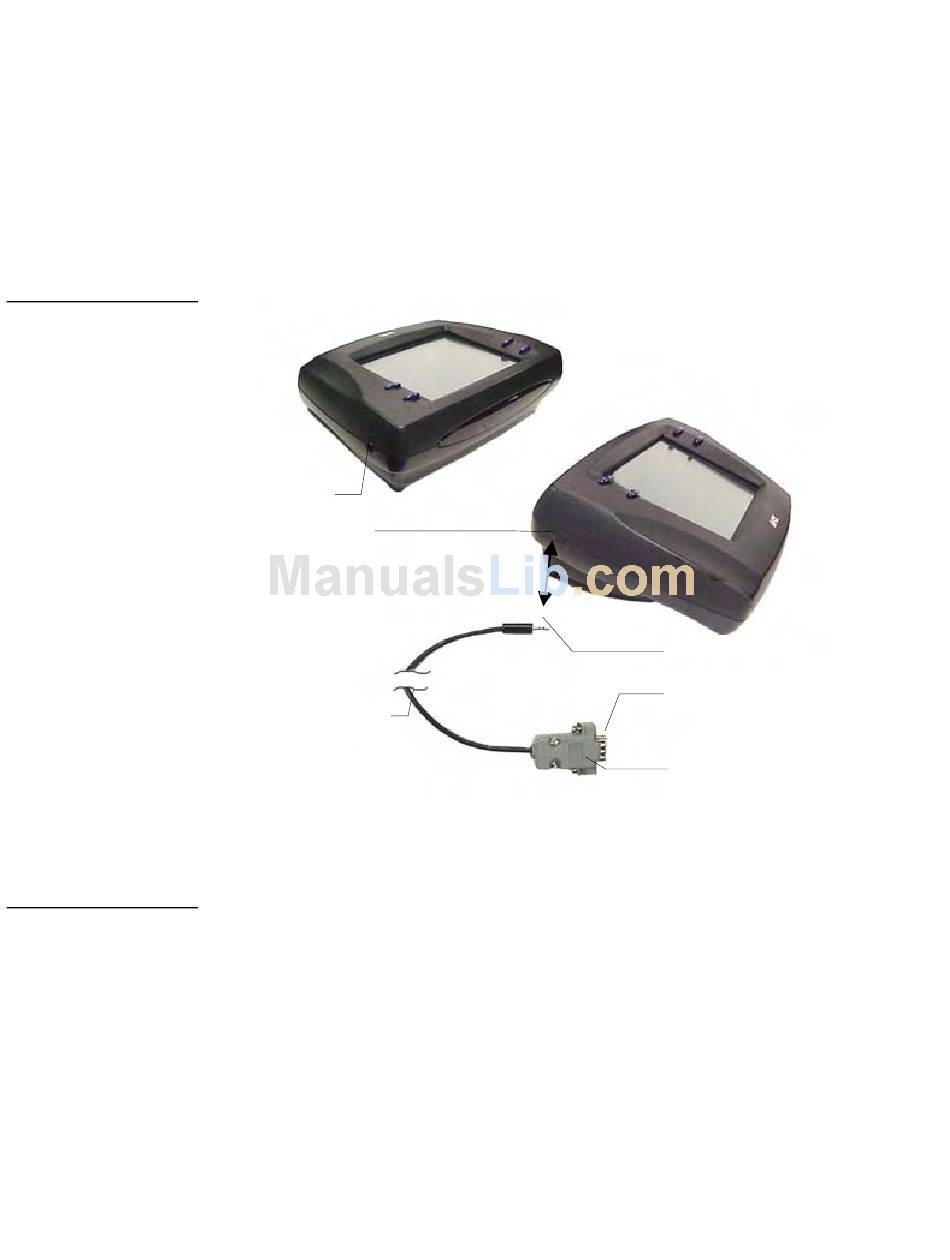

Figure 3
ViewPoint connectors
Note
RF operating frequencies
cannot be user-adjusted.
Operating frequencies must
be factory-set.
6
Installation
Connectors
All ViewPoints have two connectors, as shown in Figure 3. The power jack is for
connecting an external 12 VDC power supply for ViewPoint operation and charging.
The programming jack is a three-wire, 2.5 mm stereo jack. The required cable and
power supply comes furnished with the ViewPoint.
Power jack
Programming jack
ViewPoint to PC
programming
cable
Multiple ViewPoints in an Installation
The ViewPoint transmits data via RF or IR. The VPT-CP and VPT-GS ViewPoint
Wireless Touch Panels are shipped to operate on a standard frequency of 418 MHz
RF and user-selectable 38 KHz or 455 KHz IR frequencies. The ViewPoints can be
ordered for different RF operating frequencies that must be set when the unit is
manufactured.
Stereo plug male
Male DB9
Cable FG10-517 to
cable FG10-
727 to your
PC's RS-232
ViewPoint Wireless Touch Panels l
