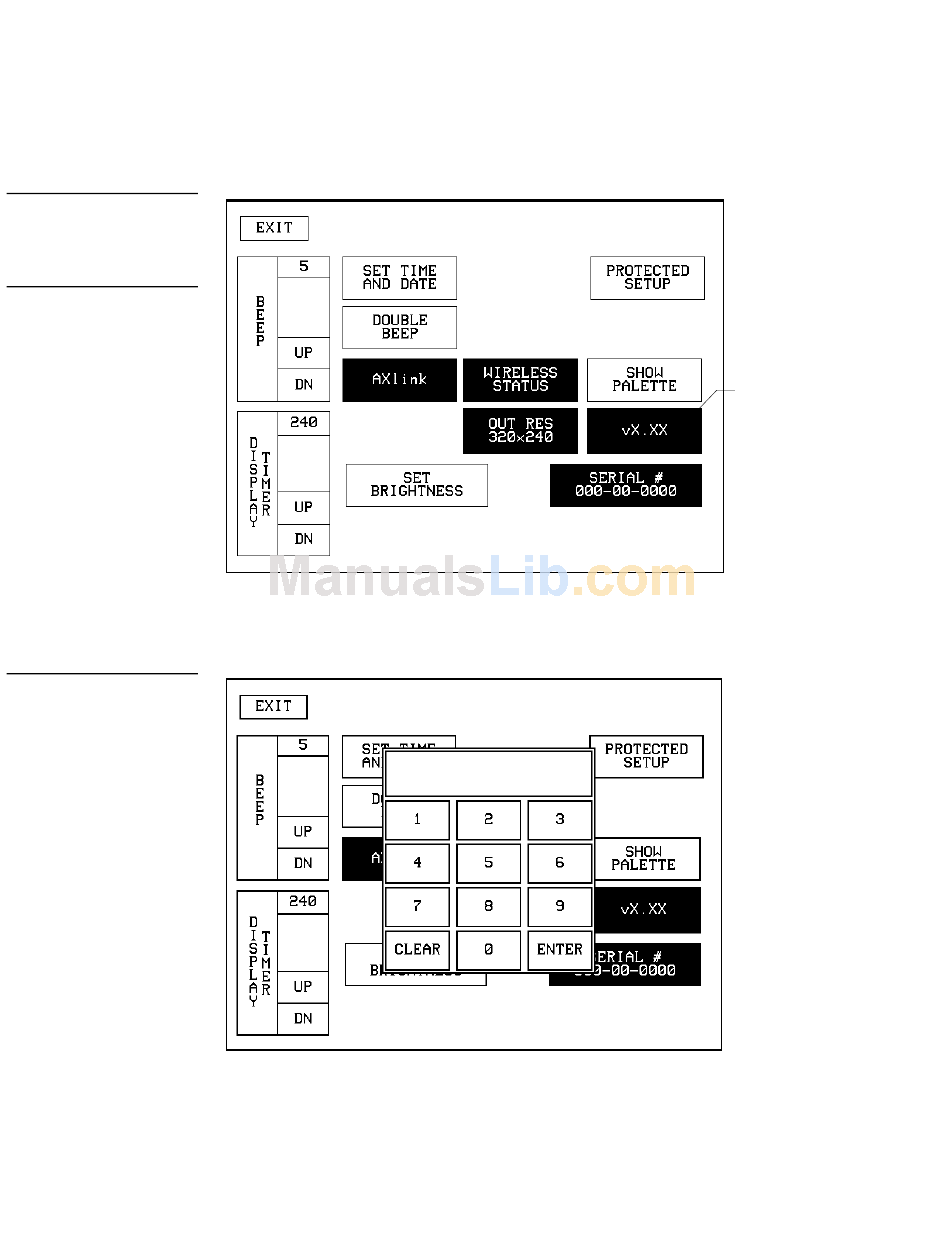

Figure 19
Setup page
Note
Viewpoint touch panel
information buttons are
displayed with a black fill.
These buttons can't be altered
and are only used to display
information. Examples of
these are the AXlink,
WIRELESS STATUS,
OUTPUT RESOLUTION,
vX.XX, and SERIAL #
buttons.
Figure 20
Setup page and password
keypad
20
Designing Touch Panel Pages
1.
Press SETUP in the Main page to open the Setup page shown in Figure 19.
2.
Press PROTECTED SETUP to open the password keypad shown in Figure 20.
Firmware
version
ViewPoint Wireless Touch Panels
