Viewport Docking Station - AMX Wireless Touch Panels (Wave Server) Instruction Manual

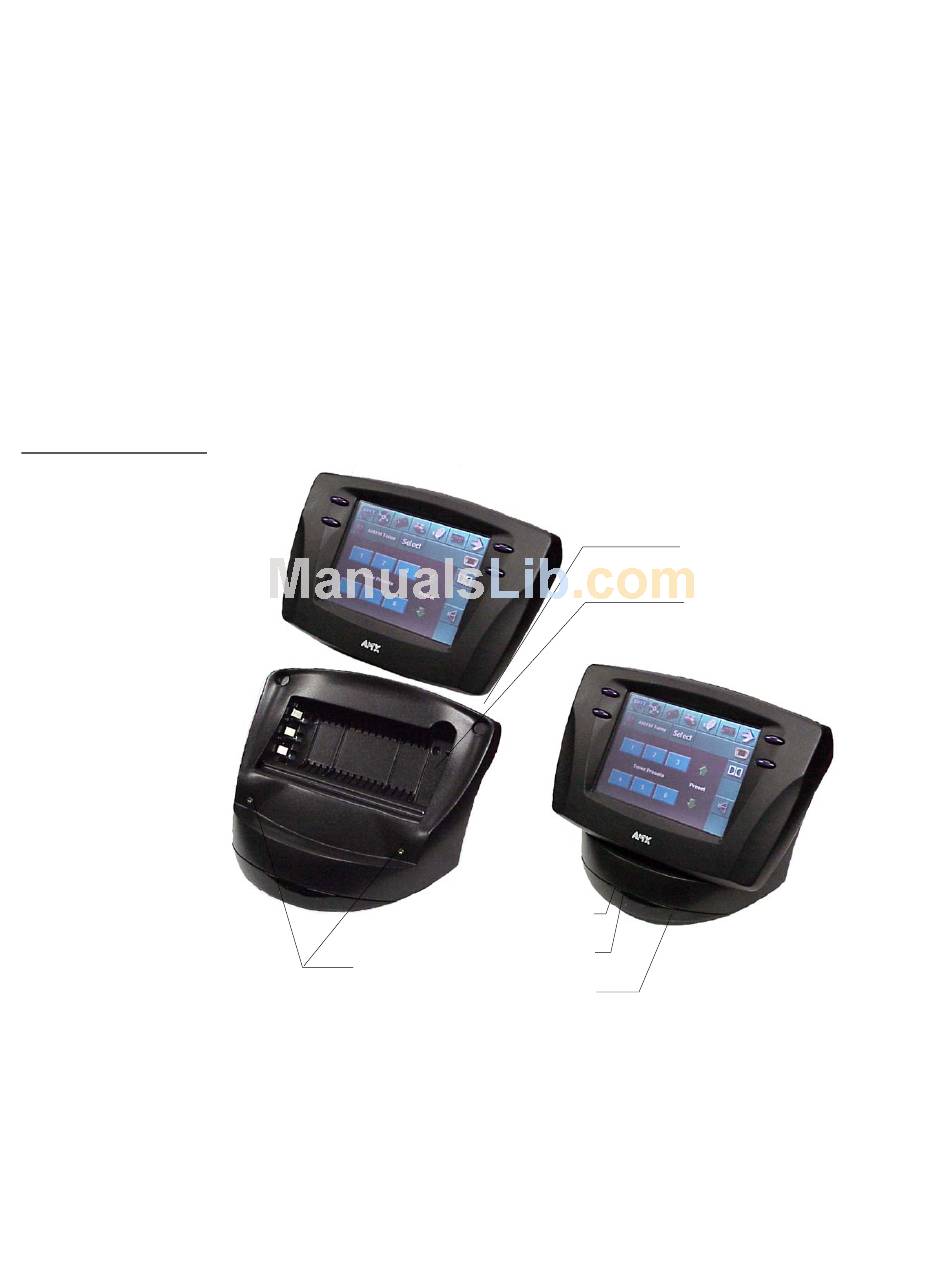

Figure 6

ViewPort Docking Station

10 Installation
ViewPort Docking Station
The ViewPort Docking Station (Figure 6) provides a built-in battery charger and an
angled desk docking station to cradle your ViewPoint touch panel. When a
ViewPoint is placed in the docking station's cradle, the ViewPoint makes contact with
the charging pins and the docking station then supplies power.
When a touch panel is not cradled on the docking station, a battery can be charged
when placed within the charging compartment. When a touch panel is cradled on the
docking station, all power is fed to the touch panel. A battery that was charging will
no longer be supplied with power until the ViewPoint is removed from the docking
station's cradle.
Charging pins
Green LED
Red LED
Yellow LED
ViewPoint Wireless Touch Panels l
Docking Station
Charging
compartment
