AMX Wireless Touch Panels (Wave Server) Instruction Manual page 63

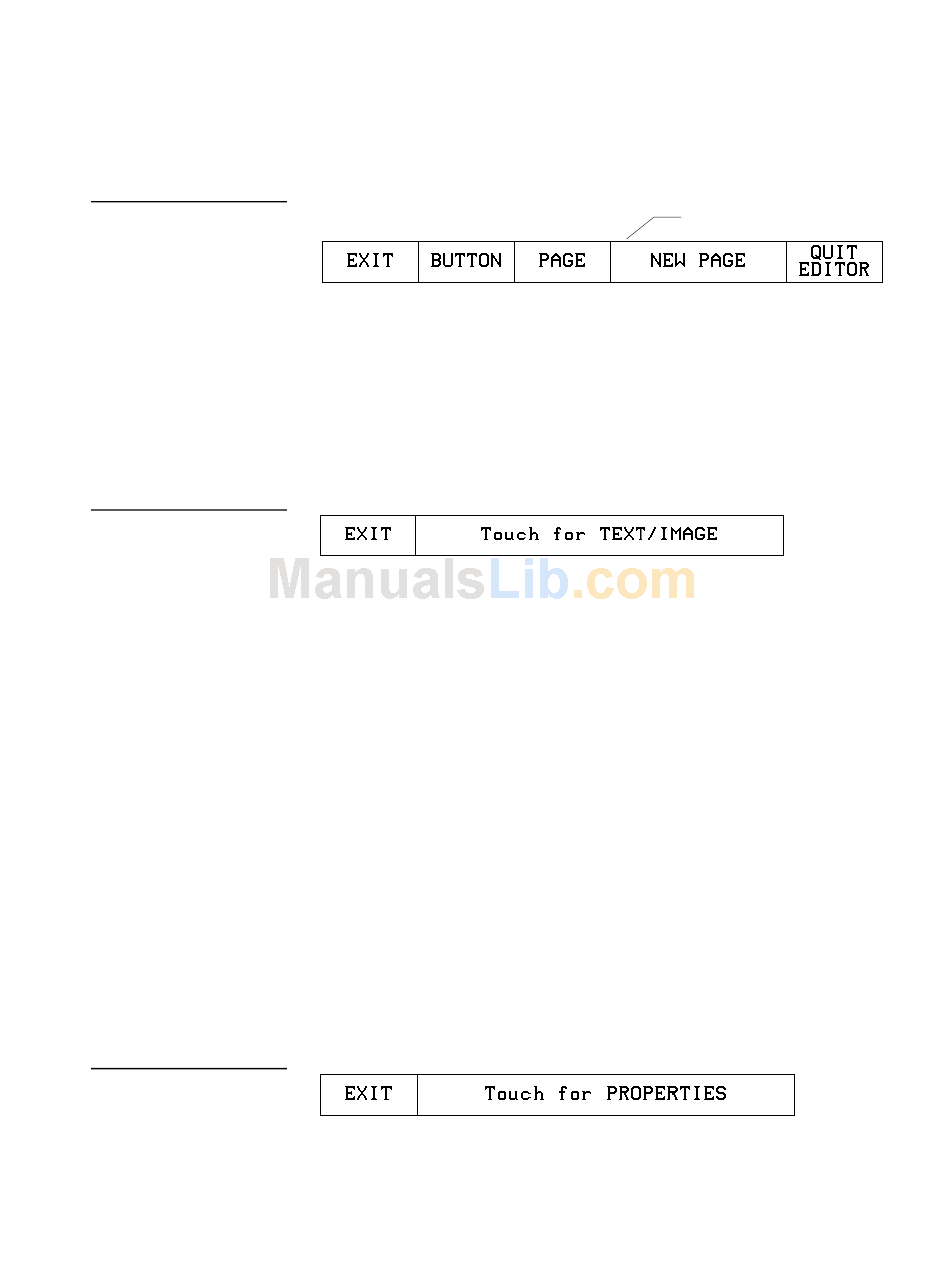

Figure 70
Edit bar with active page
button
Figure 71
TEXT/IMAGE operation bar
Figure 72
PROPERTIES operation bar
ViewPoint Wireless Touch Panels
Open the Edit bar, press the active page button shown in Figure 70. Refer to the
1.
Go to subsection for information on the use of the active page button
Press MAIN PAGE from the PAGE GOTO menu.
2.
3. Press EDIT to open the Edit bar.
4. Press BUTTON on the Edit bar to open the BUTTON menu.
5. Press TEXT/IMAGE to change the Main page button text. The TEXT/IMAGE
operation bar (Figure 71) appears.
6. Press the MAIN button to open the Text/Image page.
7. Press TEXT OFF to open the keyboard and delete MAIN.
8. Enter NEW PAGE The text appears in the keyboard window.
.
Press EXIT CHANGE to close the keyboard and return to the Text/Image page.
9.
Press MAKE ON SAME AS OFF to set the text for the button's TEXT ON and
10.
TEXT OFF states.
11. Press EXIT SAVE CHANGE to close the Text/Image page and return to the Main
page.
12. Press EXIT to exit the TEXT/IMAGE mode.
13. Press EDIT to open the Edit bar.
14. Press BUTTON to open the BUTTON OPTIONS menu.
15. Press PROPERTIES in the BUTTON OPTIONS menu to open the PROPERTIES
operation bar shown in Figure 72.
Active page button
Designing Touch Panel Pages 53
