Creating A Button; Adding A Button - AMX Wireless Touch Panels (Wave Server) Instruction Manual

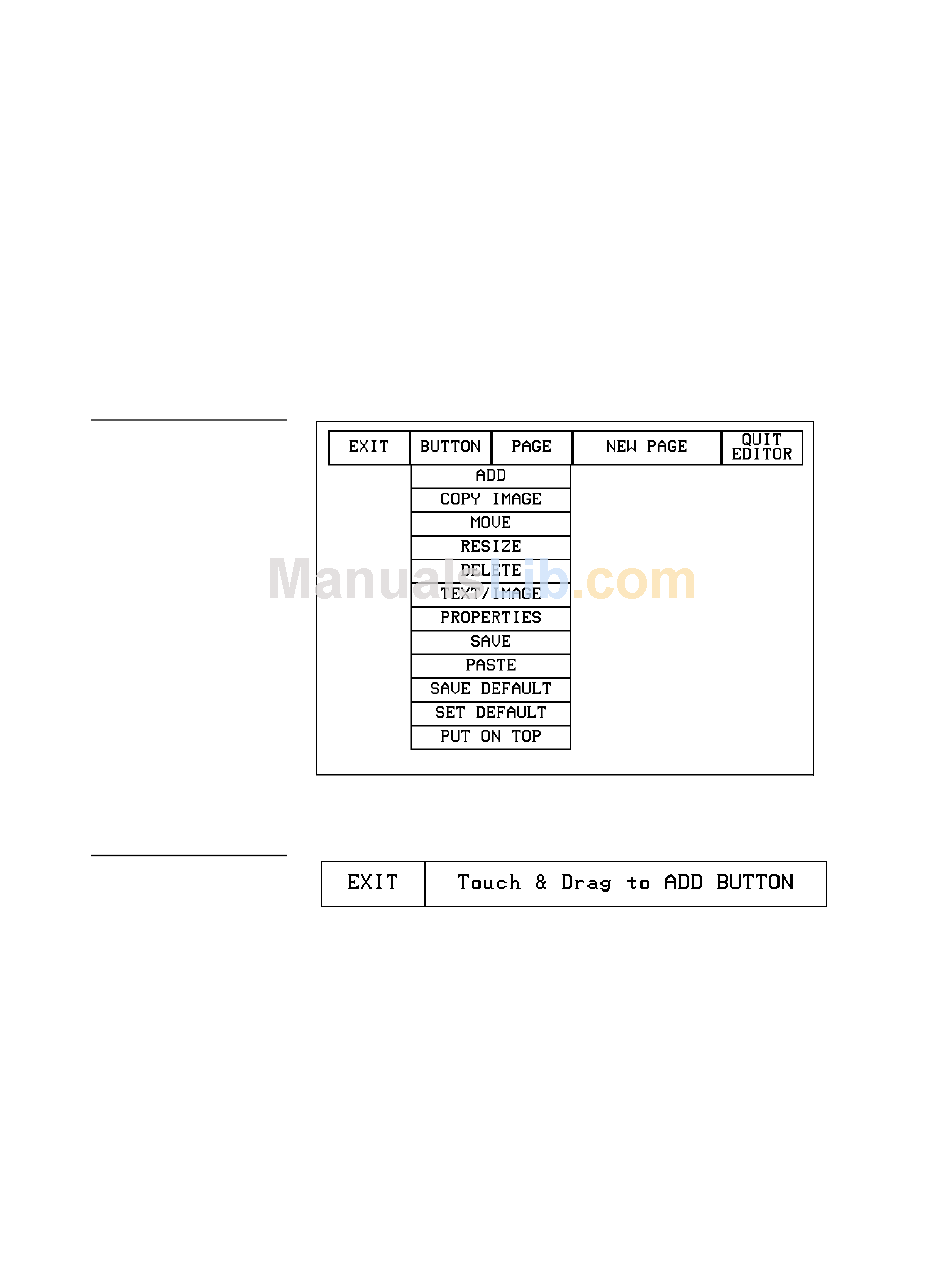

Figure 27
BUTTON menu
Figure 28
ADD BUTTON operation bar
ViewPoint Wireless Touch Panels
Select a page color from the palette. The page automatically changes to the new
4.
color.

Creating a Button

Use the BUTTON menu in the Edit bar to create touch panel buttons.

Adding a button

1. Press EDIT to open the Edit bar.
Press BUTTON on the Edit bar to open the BUTTON menu shown in Figure 27.
2.
3. Press ADD to open the ADD BUTTON operation bar (Figure 28).
4. Touch and drag your finger horizontally down the LCD screen to create the
button as shown in Figure 29. The first touch point is the upper-left corner of the
button.
Designing Touch Panel Pages 25
