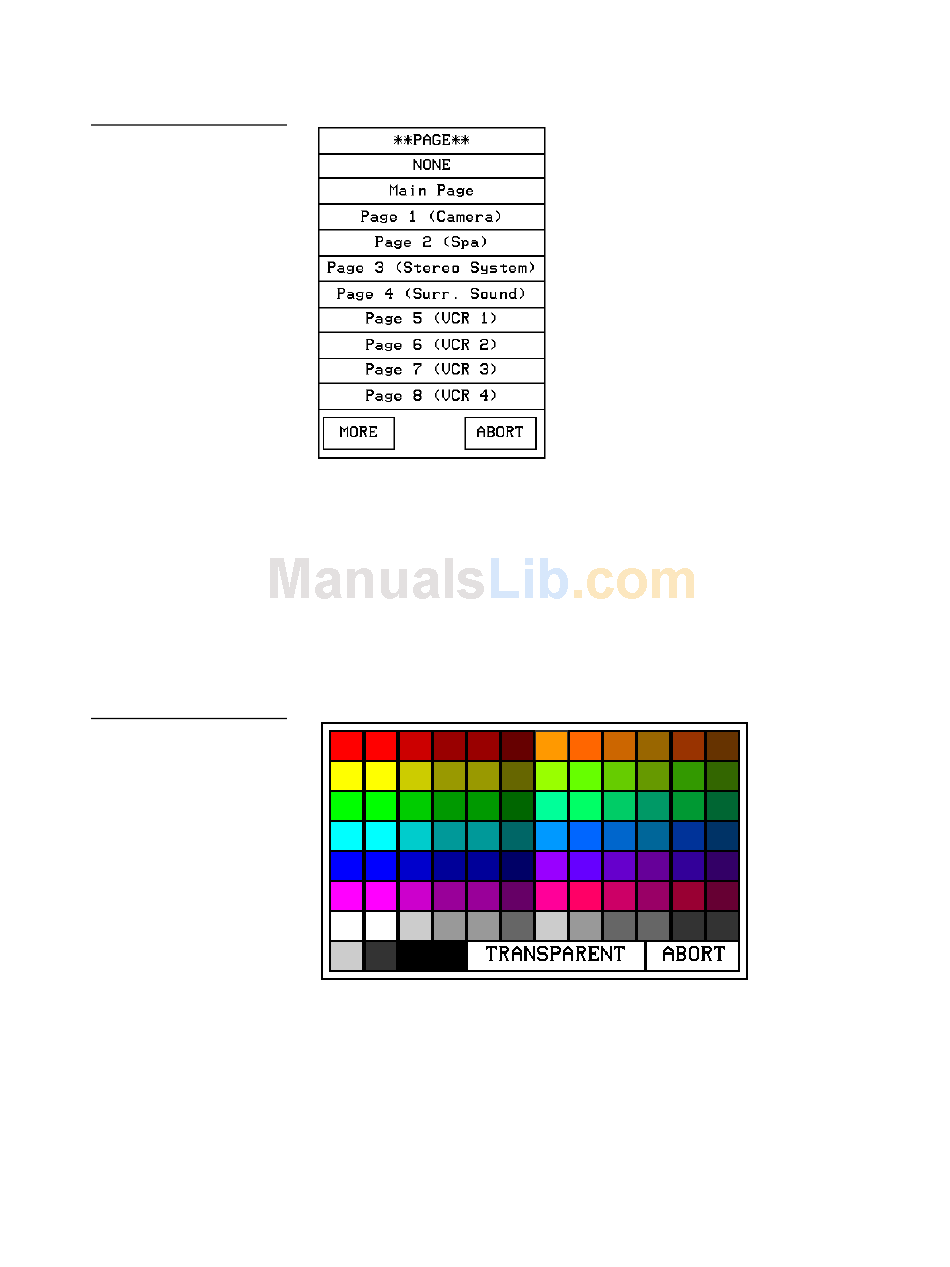

Figure 150
PAGE menu
Figure 151
Color palette
ViewPoint Wireless Touch Panels
•
Opens the keyboard where you enter the data string to be sent
STRING
to the Central Controller via AXlink or RF communications. The data string
appears in the STRING button. Press ABORT to close the menu.
•
CHANNEL OFF and CHANNEL ON COLOR
colors for the button's Off and On states. Press the BORDER, FILL, and TEXT
buttons to open the color palette shown in Figure 151. Select a color to set the
channel colors and return to the PROPERTIES page. The new color appears
on the associated button attribute on the PROPERTIES page.
— TRANSPARENT
Sets the button to appear transparent on the touch panel
page.
— ABORT
Closes the color palette and returns to the PROPERTIES page.
Sets the border, fill, and text
Touch Panel Program Reference
97
